CAUTION
l When peeling the coaxial cable, do not damage the outer conductor or the shielded layer of
the coaxial cable.
l You can determine the length of the part to be peeled according to the length of the connector,
as shown in Figure A-40.
Table A-7 Peeling lengths of commonly used coaxial cables
Cable Type
External
Diameter
L1
(mm)
L2
(mm)
L3
(mm) Remarks
SYFVZ-75-1-1
(A)
2.2 mm 5-6 7-9 10-12
SYV-75-2-2 3.9 mm 5-6 7-9 10-12 Dedicated to national
backbone 155M-I
SYV-75-4-2 6.7 mm 5-6 7-9 10-12 Dedicated to national
backbone 155M-III
SFYV-75-2-1 3.2 mm 5-6 7-9 10-12 Dedicated to national
backbone-II
SFYV-75-2-2 4.4 mm 5-6 7-9 10-12 Dedicated to national
backbone 155M-II

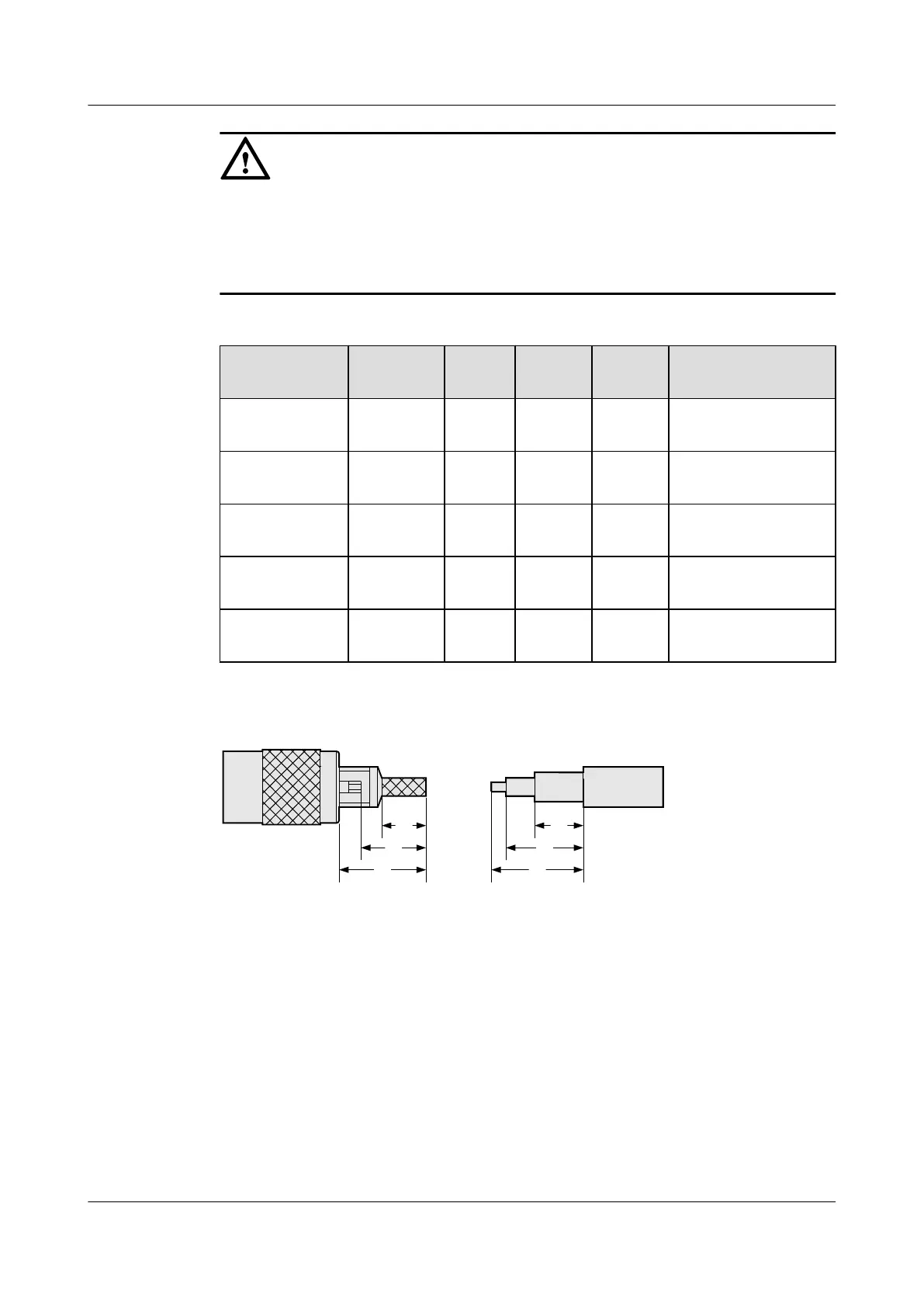

Figure A-40 Lengths of connectors and the peeled part of cables
L3
L2
L1
L3
L2
L1
Step 2 Put a coaxial cable into press-fitting sleeve A, as shown in Figure A-41.
