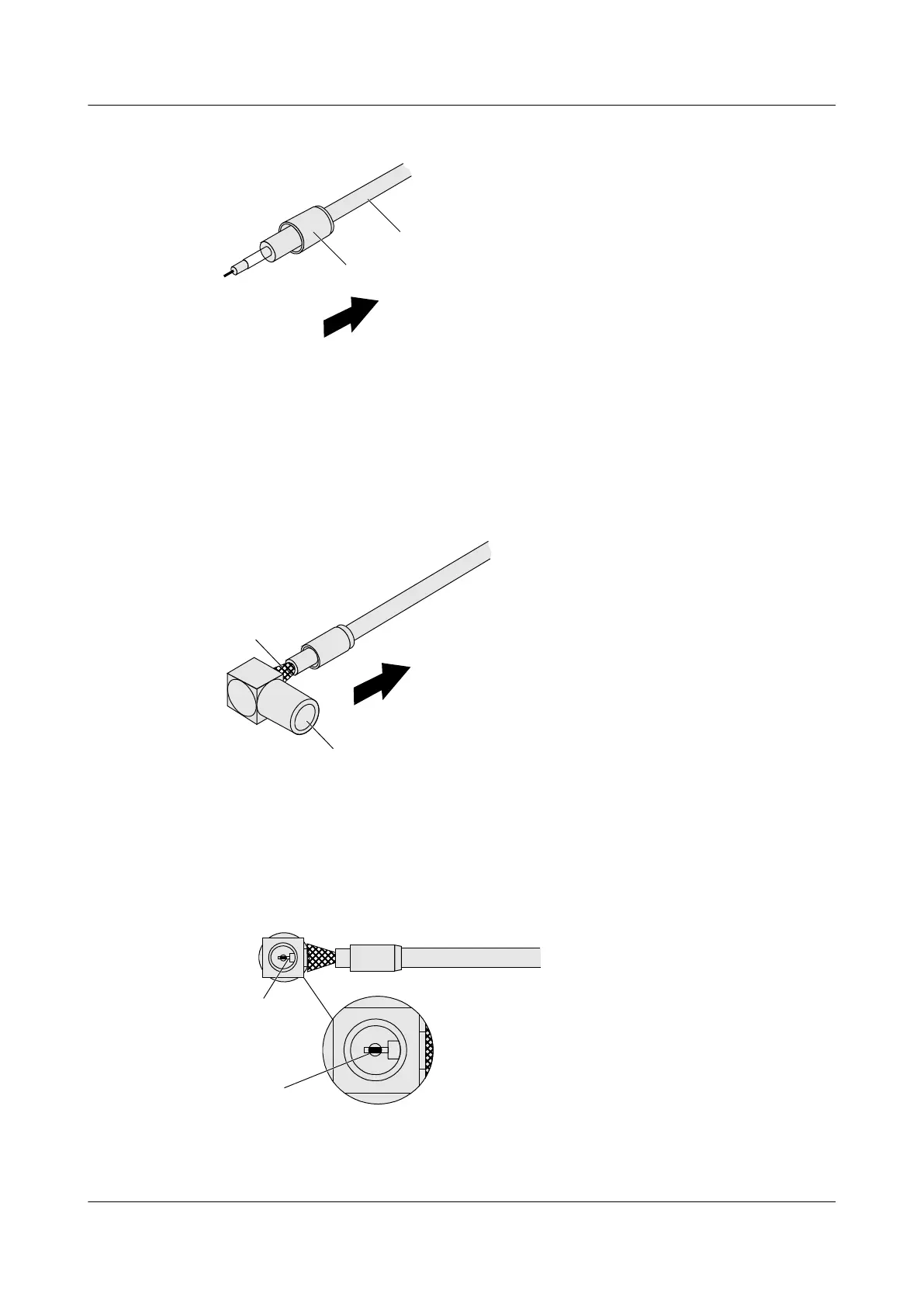

Figure A-41 Putting a coaxial cable into a sleeve
D
A
Step 3 Insert the inner conductor and the insulation part of the coaxial cable into plug C of the connector.
Wrap outer conductor E of the connector by using the outer conductor of the coaxial cable, as
shown in Figure A-42.
Figure A-42 Inserting a coaxial cable into a connector plug
E
C
Step 4 Solder inner conductor G of the coaxial cable with the inner conductor of plug C, as shown in
Figure A-43.
Figure A-43 Soldering the inner conductor
G
Welding
