Pub. 42004-550A
Elemec3 Console Manual—Version 3.0 Page 101 of 114
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-550A.docx
09/20
Pre-Announcement Tone
Configure each page-transmission channel with a preannouncement tone. This parameter is a selection
checkbox parameter. The defaulting is Not Selected.
Party Sockets Pane

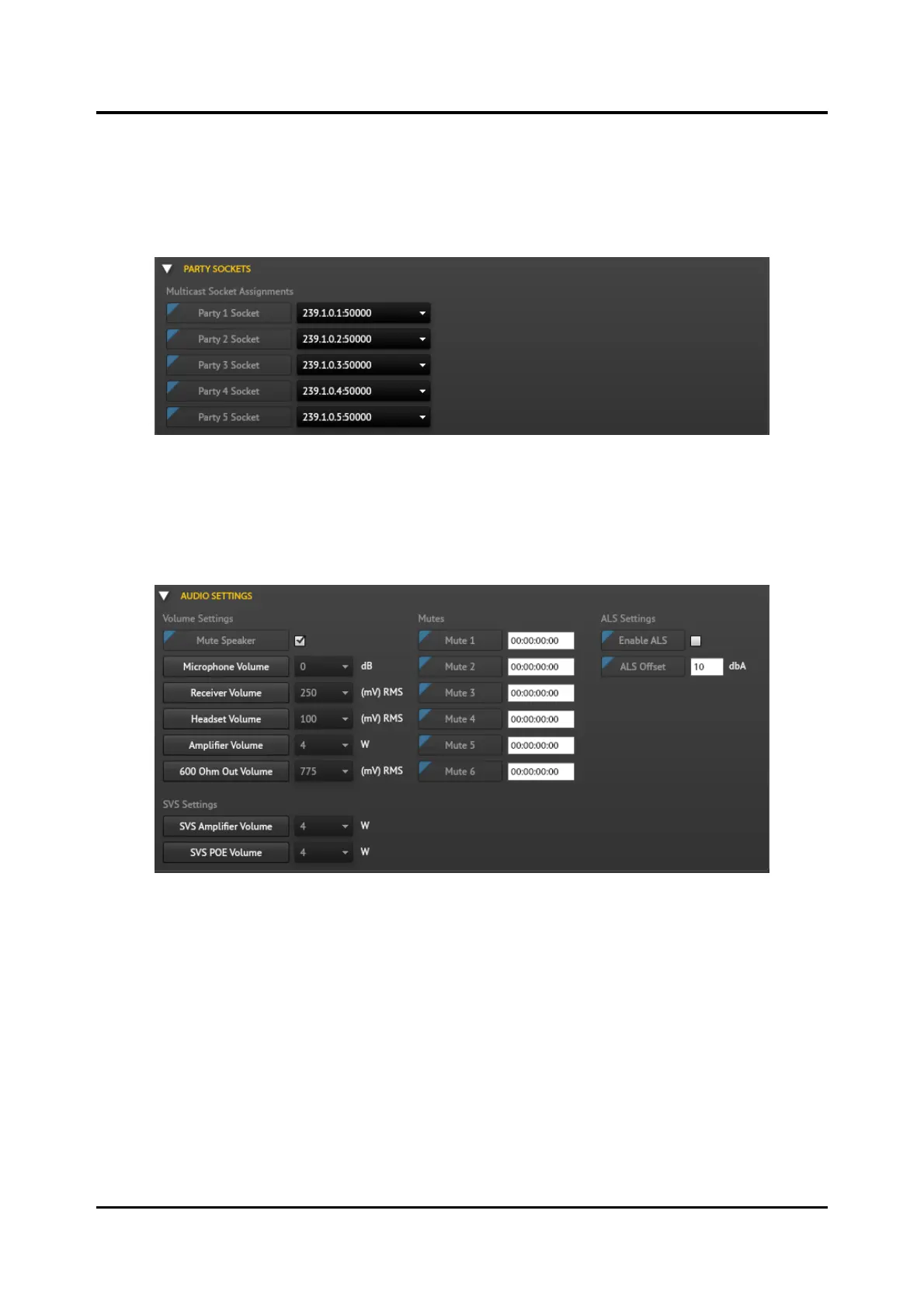

Figure 111. Party Line Sockets Pane
Multicast Socket Assignments—Five party-line multicast sockets are preconfigured in the E3 Console
for use in the E3 system.
Audio Settings Pane
Figure 112. Audio Settings Pane
Volume Settings
Mute Speaker—mutes incoming pages during page transmission on any PAGETX socket (A–E). Valid
settings are:
• Selected—All locally generated and received page audio is muted while transmitting audio
pages.
• Deselected—Received page audio is broadcast over the station’s external speaker simultaneously
while transmitting an outgoing page.
