SVS Settings (SVS Only)

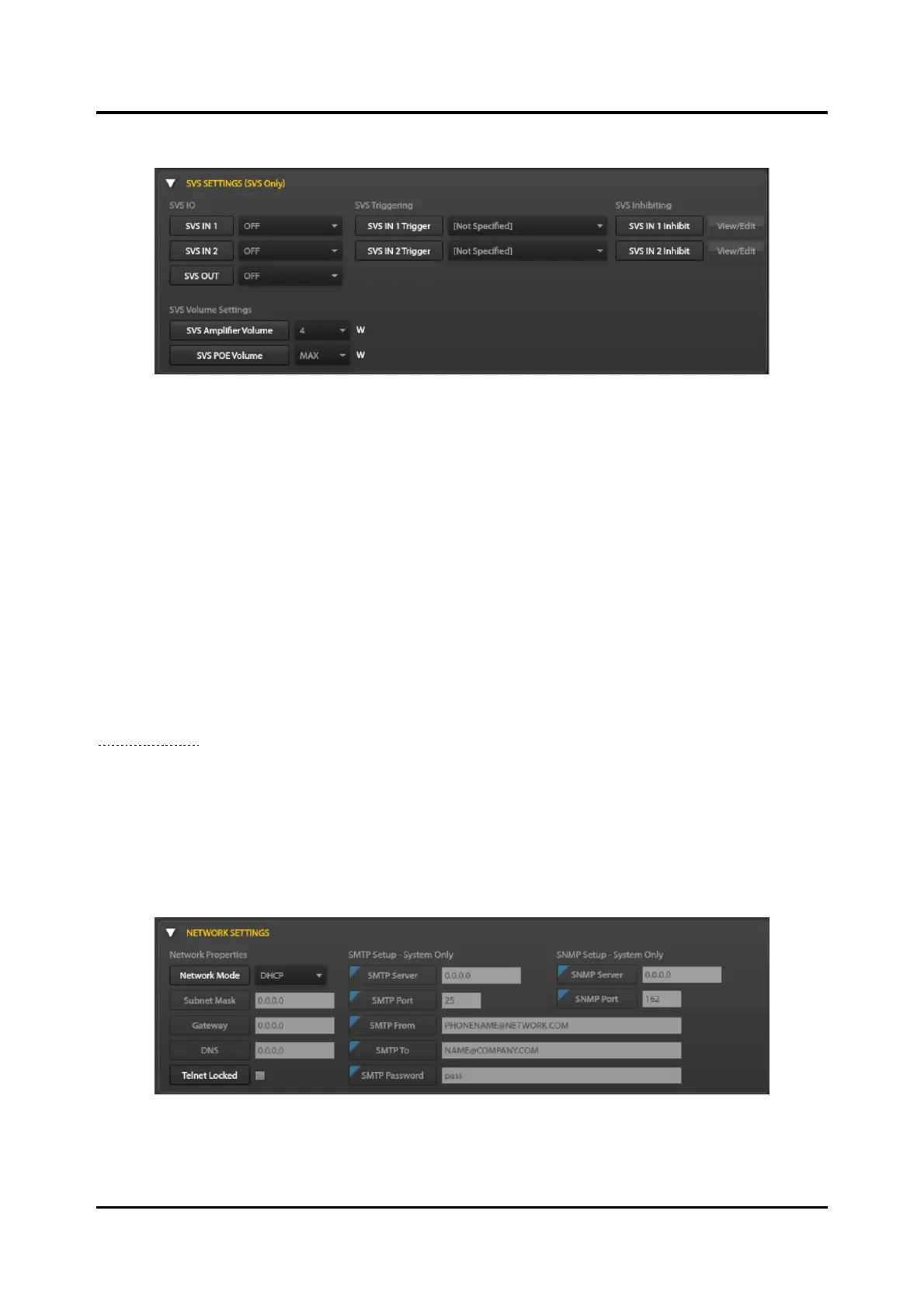

Figure 116. SVS Settings (SVS Only) Pane
SVS IO
SVS IN1 and SYS IN 2—Normal operation: the output fires when the input is present if SVS IN 1 and
SVS OUT are both set to IN1.
Operation in an E3 system: the E3 system receives the status of the inputs (SVS IN1 and SVS IN 2)
and processes it according to the E3 configuration.
SVS OUT—condition that activates the RTU output on the station.
SVS Triggering
SVS IN 1 Trigger and SVS IN 2 Trigger—specifies the action taken or triggered when the SVS input is
activated. Selections include: Global Mutes, ACKs, CANCELs, and E3 events.
SVS Inhibiting
SVS IN 1 Inhibit and SVS IN 2 Inhibit—specifies the inhibit groups that affects the SVS inputs (see the
Inhibit Groups section).
SVS Volume Settings
SVS Amplifier Volume—the default volume for SVS stations.
SVS POE Volume—the volume level when the speaker is powered via PoE.
Network Settings Pane
Figure 117. Network Settings Pane
