Reset All Filters—removes all applied filters in the pane to display all stations with identifiers in the E3
configuration.
Filter by Profile—has four selectable options; IGNORE PROFILE, ANY PROFILE, NO PROFILE, or
PROFILE 1..9. The RED BUTTON is the currently selected option (see the Profiles Panel section).
• Ignore Profile—is the default option that displays all stations regardless of profile assignment.
• Any Profile—option displays all stations that have any profile assigned.
• No Profile—lists only those stations that do not have a profile assigned.
• Profile 1..9—finds and lists the stations that apply the selected profile.
Filter by Group—locates all stations in the configuration with their group selector switch set to the
selected group number, 0..F.

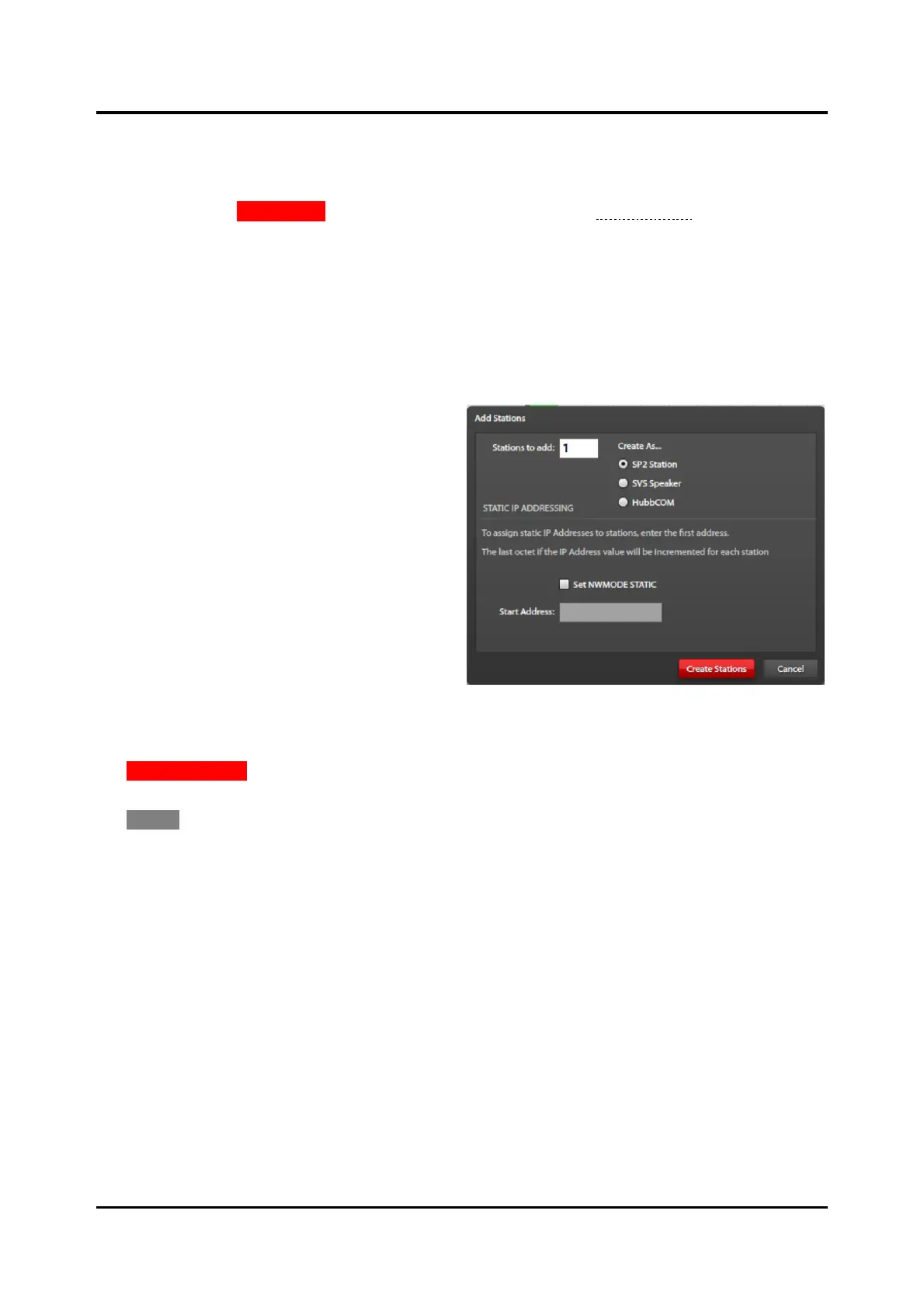

Add Stations to Group—opens the dialog box
at the right to add stations to the configuration in
the group selected above.
Stations to add:— the number of stations,
1–250, to add to the configuration where
their group selector switch will be set to the
group number selected in the filter.
Create As…—selects the type of station;
SP2 STATION, SVS SPEAKER, or
HUBBCOM.
Set NWMODE STATIC—sets the station’s
NW-MODE parameter to Static. Static IP
addresses will need to be configured for all
stations in the configuration.
Start Address—the class C IP address of the
first station. The remaining stations are added with incremental IP addresses assigned.
CREATE STATIONS—creates the number of stations entered if SET NWMODE STATIC is selected and
a valid class C address IP address is entered.
CANCEL—closes the dialog box without creating any stations in the configuration.
Filter—displays the applied filters. Ex. GROUP1, IGNORING PROFILES.
Use Hostnames—lists the SP2 stations by their host names instead of by their station IDs. Valid SP2
station hostnames are up to 28 characters long. Select this option to show fewer stations on screen.
Stations—number of stations currently displayed in the pane inside the MANAGE STATIONS panel. The
number of creatable stations in the group also displays when applying a group filter.
Close—closes the MANAGE STATIONS panel.
