Pub. 42004-550A
Elemec3 Console Manual—Version 3.0 Page 65 of 114
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-550A.docx
09/20
NOTE: SIP clients typically use TCP or UDP on port numbers 5060 or 5061 to connect to SIP servers
and other SIP endpoints. Use port 5060 for non-encrypted signaling traffic and port 5061 for
traffic encrypted with TLS (Transport Layer Security).
Hang Up On Reg Failure—active calls terminate if the re-registration fails when selected. (Re-
registration with the IP PABX is independent of active calls.)
Hang Up On RTP Failure—active calls terminate if the data rate drops below 250 bytes per second.
(Excessive packet loss is present at this data rate.)
SIP Registrar Configuration
Click the ADD REGISTRAR button to configure the SIP telephone interface registration properties.

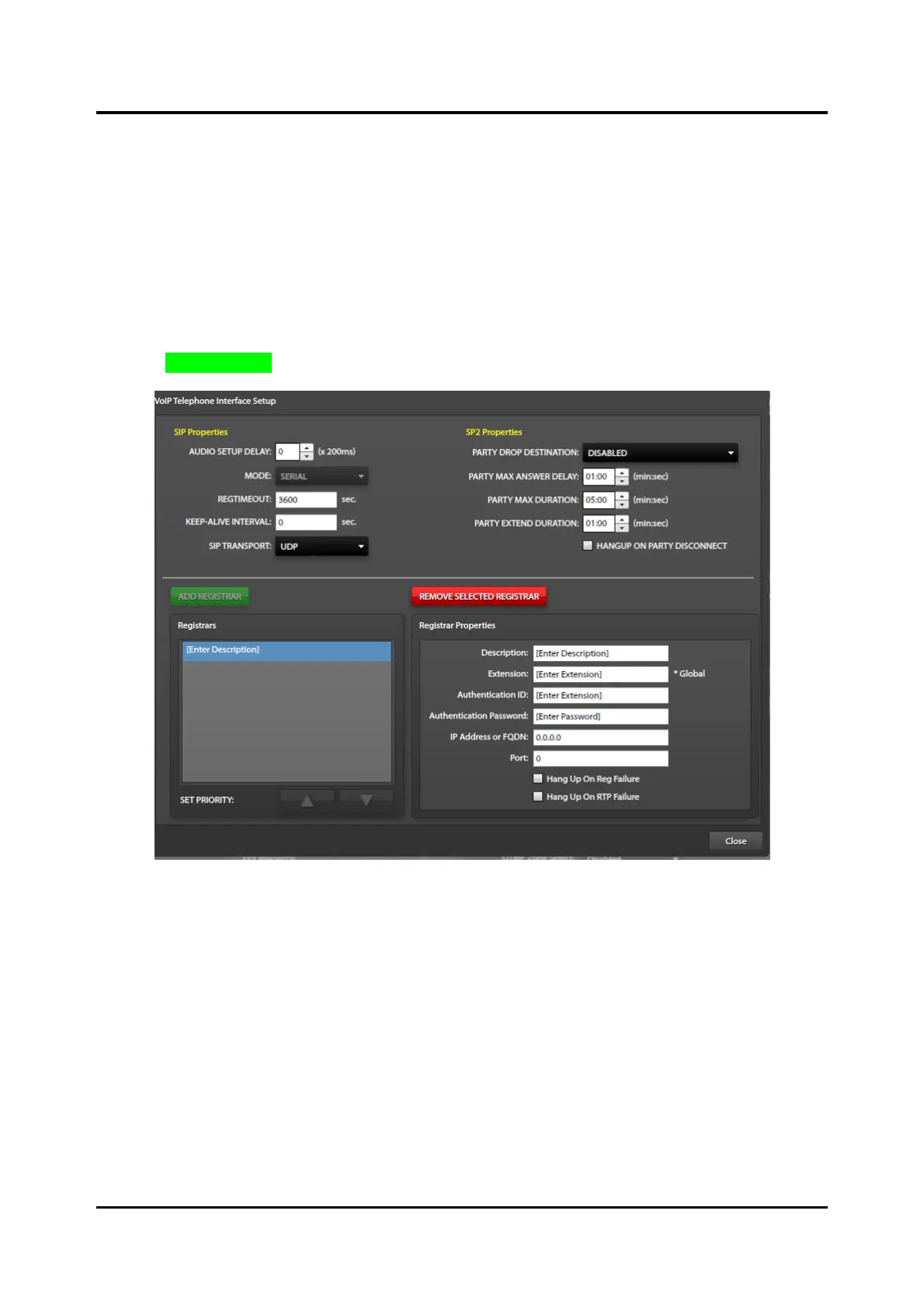

Figure 68. Configuring SIP Registrar Properties
Description—text description for the SIP Registrar (IP PABX).
Extension—extension number assigned to the telephone interface by the SIP Registrar.
Authentication ID—account username assigned by the SIP Registrar.
Authentication Password—account password assigned by the SIP Registrar.
IP Address or FQDN—IP address of the SIP Registrar. FQDN—The fully qualified domain name of the
SIP Registrar (requires DNS service).
Port—Port number used for SIP registration/signaling.
NOTE: SIP clients use port number 5060.
