Zone Builder
Use the ZONE BUILDER screen to configure zones in an Elemec3 system. The ZONE BUILDER screen
opens when creating a new zone or when selecting an existing zone from the ZONE LIST on the ZONES
screen. Make zone changes by highlighting the zone in the AVAILABLE DESTINATIONS panel and clicking
the EDIT ZONE button.

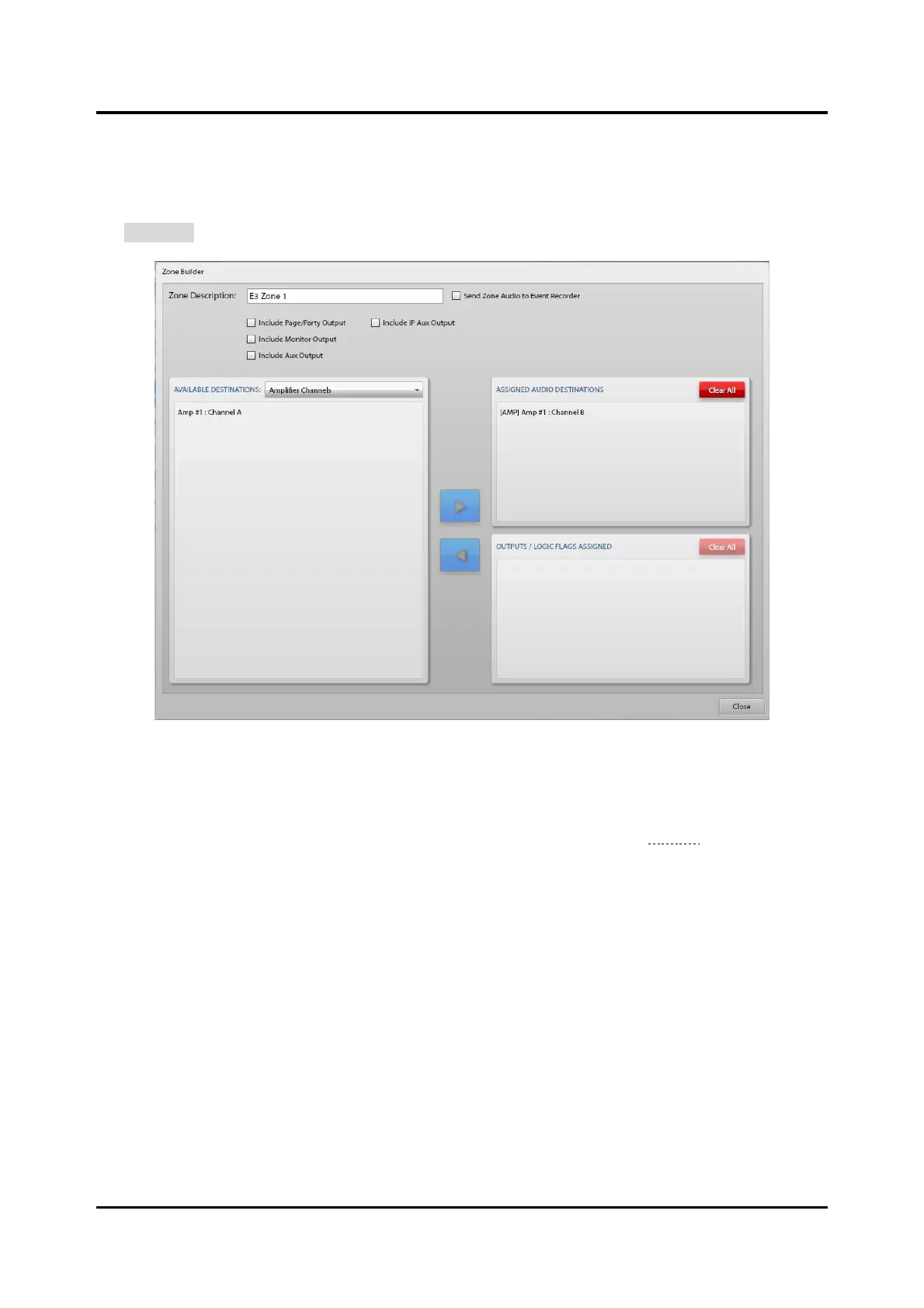

Figure 73. Zone Builder
Zone Description—unique descriptive name of the zone.
Send Zone Audio to Event Recorder—records all audio targeted to this zone in the event recorder. This
option is grayed out if not enabled on the SYSTEM PROPERTIES screen (see the Globals section).
Beneath the ZONE DESCRIPTION field are four selectable audio outputs. Select the audio outputs to
include in the zone. The available audio outputs are:
Include Page/Party Output—includes Page/Party output. This option is grayed out if the Page/Party
audio source is not enabled under the SOURCES ENABLED section of the AUDIO INPUTS tab.
Include Monitor Output—the monitor output and the IP monitor out are included, if configured. (The
monitor output is grayed out if insert two is enabled in the GLOBALS panel on the SYSTEM PROPERTIES
screen.)
Include Aux Output—sends all audio destined for this zone to the auxiliary output. (The INCLUDE
AUXILIARY OUTPUT checkbox is unavailable if insert one is enabled in the GLOBALS panel on the
SYSTEM PROPERTIES screen.)
Include IP Aux Output—sends audio destined to this zone to the IP auxiliary output.
