Humminbird SOLIX series User Manual

199
2D Sonar
CHANGE THE 2D SONAR VIEW OVERLAYS
U
se the Overlays menu to display or hide information on the view. In the 2D Sonar View, you can display the following: depth lines,
d
epth range, a color bar for the selected palette, temperature graph, beam frequency label, and data overlays.
Digital readout data can be displayed as an overlay, and it can be displayed in the data bar. To turn on the data overlay or data bar,
see Views: Edit the On-Screen View. For more information about data overlays, see Views.
1. With a 2D Sonar View displayed on-screen, tap Sonar (2D) in the status bar, or press the MENU key once.
2. Select Sonar Options.
3. Select Overlays.
4. Tap the menu, or use the Joystick to select an item, and add a check mark. (check mark = visible, blank = hidden).

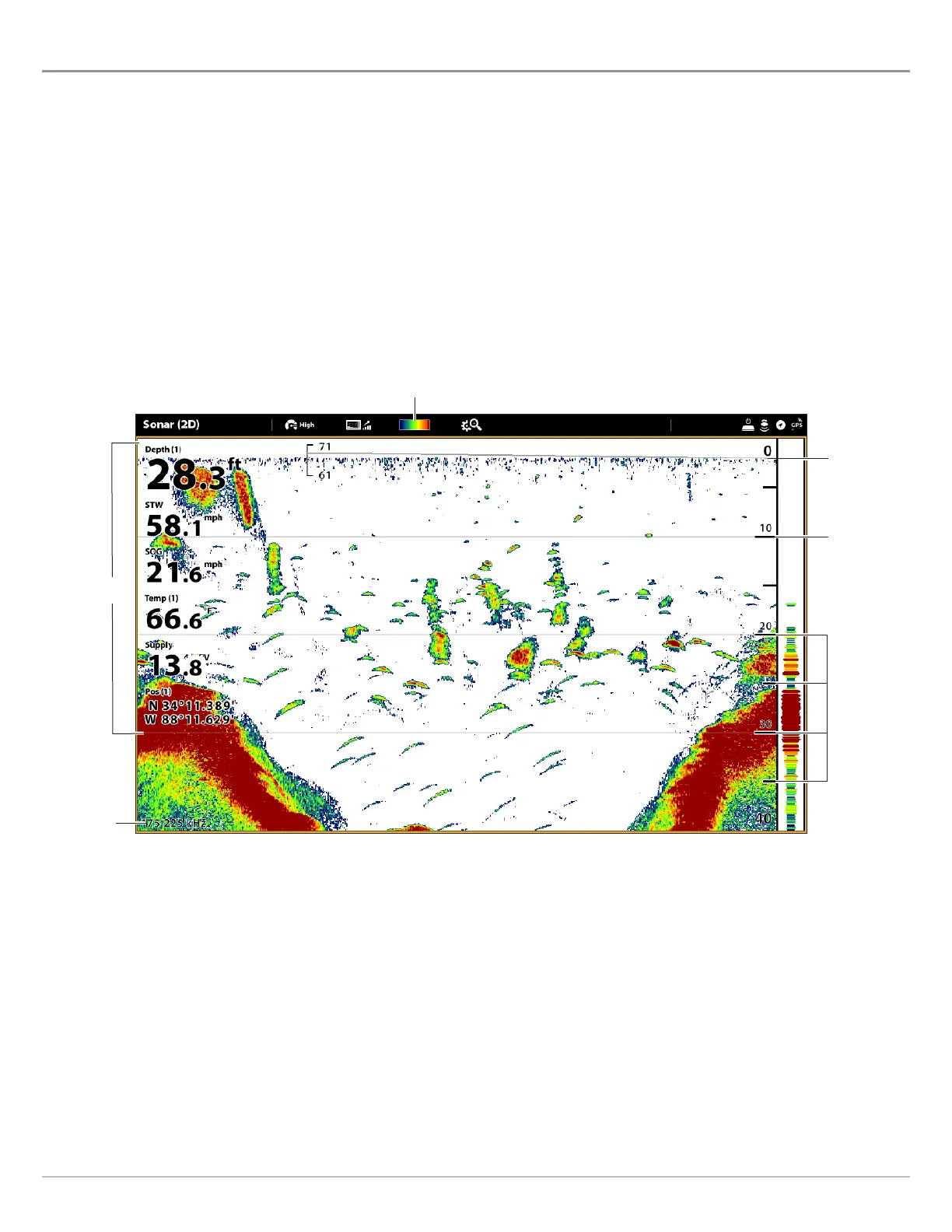

Selecting Overlays for the 2D Sonar View
color bar indicates
the selected palette
frequency
label
temperature
graph
depth line
depth range
shows
incremental
marks
between the
upper and
lower depth
range
data
overlays

Humminbird SOLIX series Specifications

General

Depth-Sonar Standard	Up to 1, 500 feet (varies by model)
Interface	Touchscreen
GPS	Yes
Cartography	Humminbird Basemap
Target Separation	2.5 inches
Networking	Ethernet, NMEA 2000
Memory Card Slot	Yes
Waterproof	IPX7
Operating Frequency	1.2MHz
Dimensions	Varies by model
Weight	Varies by model
Display Size	10.1", 12.1"
Display Resolution	1280 x 800 pixels (varies by model)
Operating Temperature	-15°C to 55°C (5°F to 131°F)
