Side Imaging
CHANGE THE SIDE IMAGING VIEW OVERLAYS
U
se the Overlays menu to display or hide information on the view. In the Side Imaging View, you can display the following: boat icon,
r
ange lines, range intervals, side label, frequency label, and data overlays. To turn on the data overlay or data bar, see Views: Edit
t
he On-Screen View. For more information about data overlays, see Views.
1. With a Side Imaging View displayed on-screen, tap Sonar (SI) in the status bar, or press the MENU key once.
2. Select Sonar Options.
3. Select Overlays.
4. Tap the menu, or use the Joystick to select an item, and add a check mark. (check mark = visible, blank = hidden).

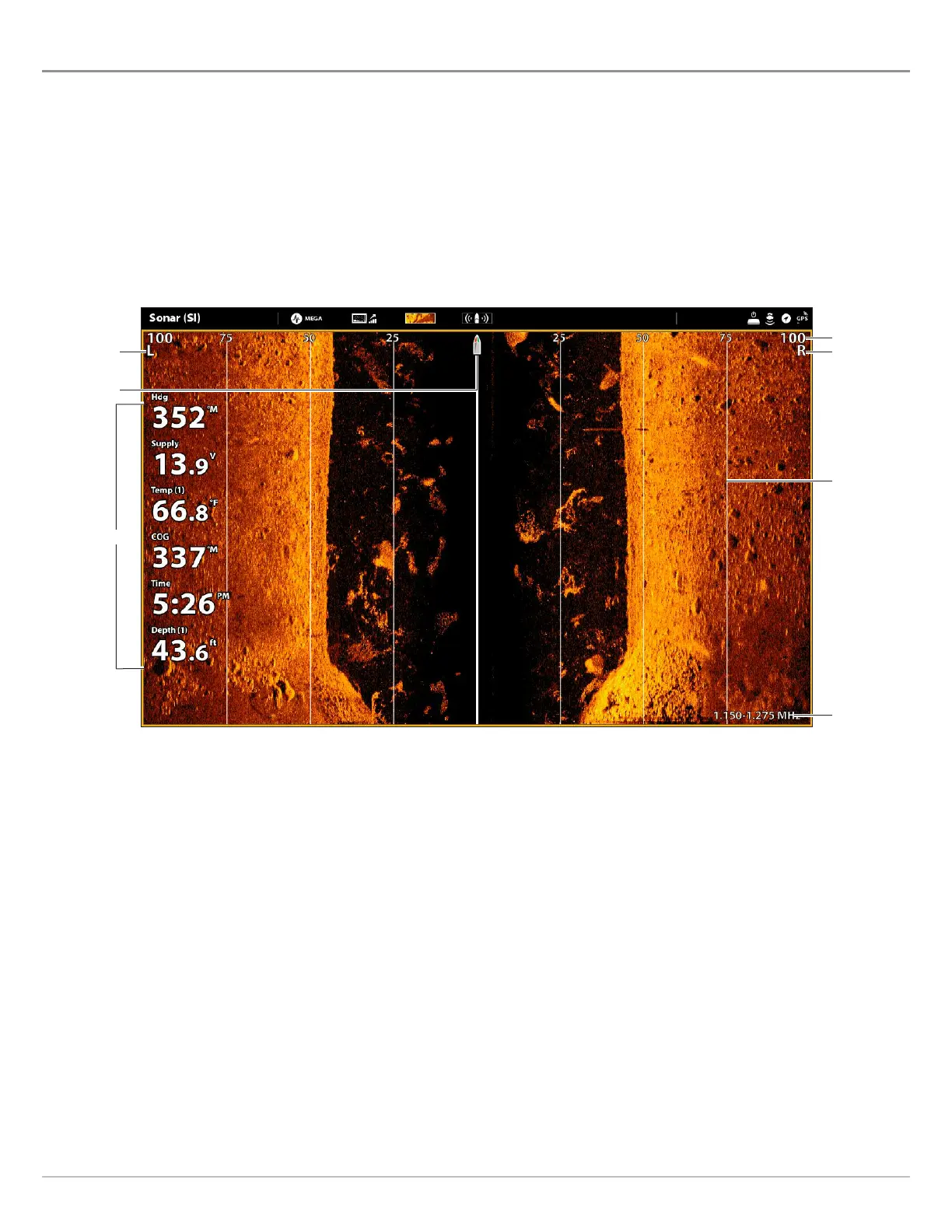

Selecting Overlays for the Side Imaging View
side label
boat icon
range interval
side label
range line
frequency
label
data overlays
