Radar Configuration
CONFIGURE HUMMINBIRD RADAR (IN
STALLATION AND
RE
PAIR
ON
LY
)
T
he instructions in this section apply to the following Humminbird radar models only:
• RH 5
• RH 44
• AS 21RD4KW
• AS 12RD2KW
NOTE: The instructions in this section do not apply to the Humminbird CHIRP radar.
Radar Configuration
The radar should be configured by a qualified radar technician after installation or equipment repair. The settings in this section
should only be needed periodically. We recommend that you contact Humminbird Customer Service at 1-800-633-1468 before
using the menus in this section.
WARNING! The features in this section affect the performance of the radar and should only be adjusted by a qualified radar
technician.
CAUTION! Before the radar settings are adjusted, or before the SOLIX software are updated or restored to system defaults, export
the radar installation settings. See Export Radar Installation Settings.
Open the Radar Installation Menu
1. Press the HOME key.
2. Select Settings.
3. Select Radar > Installation.
Trigger Delay
Trigger delay adjusts the signal timing so that long straight targets appear straight on the display. The Range and Rain Clutter
(FTC) are temporarily adjusted to optimize the system settings. When the Trigger Delay installation setting is completed, the system
will return to the previous user settings.
1. Select Trigger Delay from the Installation menu.
2. Trigger Delay: Press and hold the slider, or press and hold the ENTER key, to adjust the trigger delay. A high setting sets a
longer delay, while a low setting sets the radar to a shorter delay.

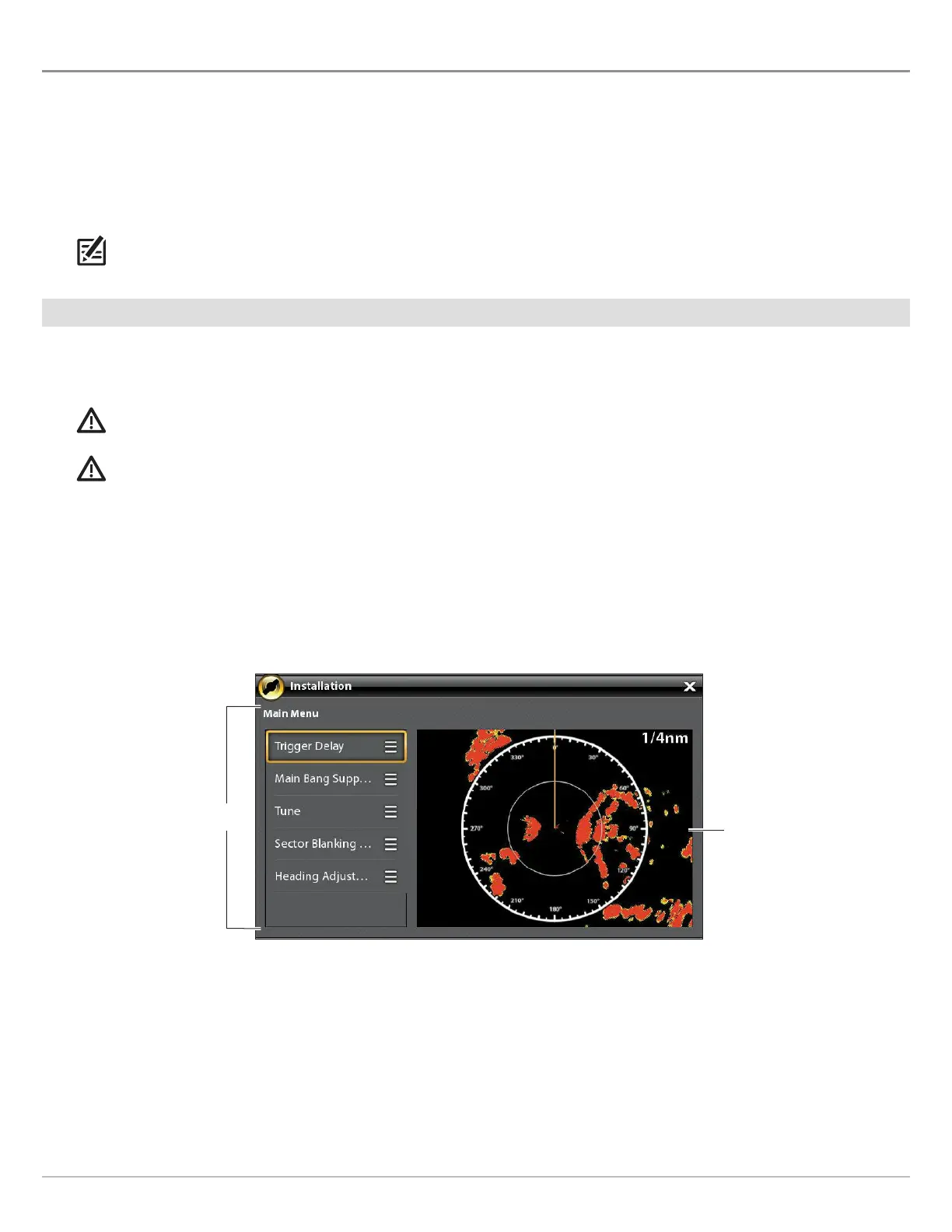

Radar Installation Menu
preview
window
menu
options
To Next Page
