Humminbird SOLIX series User Manual

85
Chart & Radar
CHART AND RADAR
I
f a radar is connected to the control head network, the radar data can be displayed on the Chart View. To adjust the menu settings
f
or the radar, see Radar Overview for more information.
Start Radar Transmission
1. Humminbird CHIRP Radar: Press the POWER key once. Select Radar > Standby. Press the POWER key again, and select Radar
> Transmit.
Humminbird Radar: Press the POWER key once. Select Radar Transmit, and turn it on.
NOTE: For more information about Humminbird CHIRP Radar and Humminbird Radar, see Radar Overview.
Display Radar on the Chart View
1. With a Chart View displayed on-screen, tap Chart in the status bar, or press the MENU key once.
2. Select Radar.
3. Select Radar Overlay. Tap the on/off button, or press the ENTER key, to turn it on.
NOTE: You can also display Range Rings and MARPA Targets on the Chart View. See Change the Chart View Data Overlays in this
section for more information.
status bar

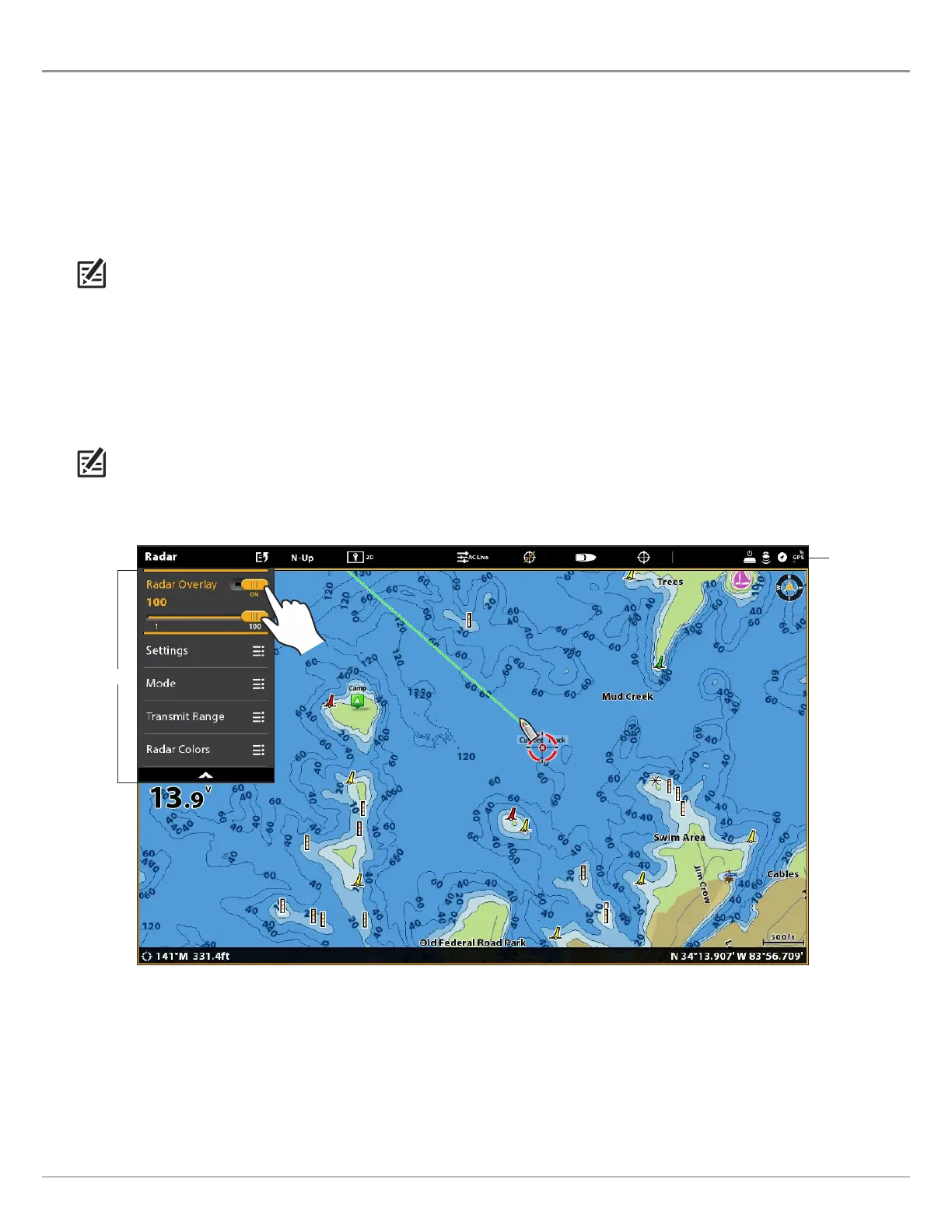

Turning on the Radar Overlay
radar menu

Humminbird SOLIX series Specifications

General

Depth-Sonar Standard	Up to 1, 500 feet (varies by model)
Interface	Touchscreen
GPS	Yes
Cartography	Humminbird Basemap
Target Separation	2.5 inches
Networking	Ethernet, NMEA 2000
Memory Card Slot	Yes
Waterproof	IPX7
Operating Frequency	1.2MHz
Dimensions	Varies by model
Weight	Varies by model
Display Size	10.1", 12.1"
Display Resolution	1280 x 800 pixels (varies by model)
Operating Temperature	-15°C to 55°C (5°F to 131°F)
