Control Head Configuration
CONFIGURE THE CONTROL HEAD
U
se the instructions in this section to review control head and network connections, select baud rates and NMEA 0183 Output
s
entences, and name the control heads and networks.

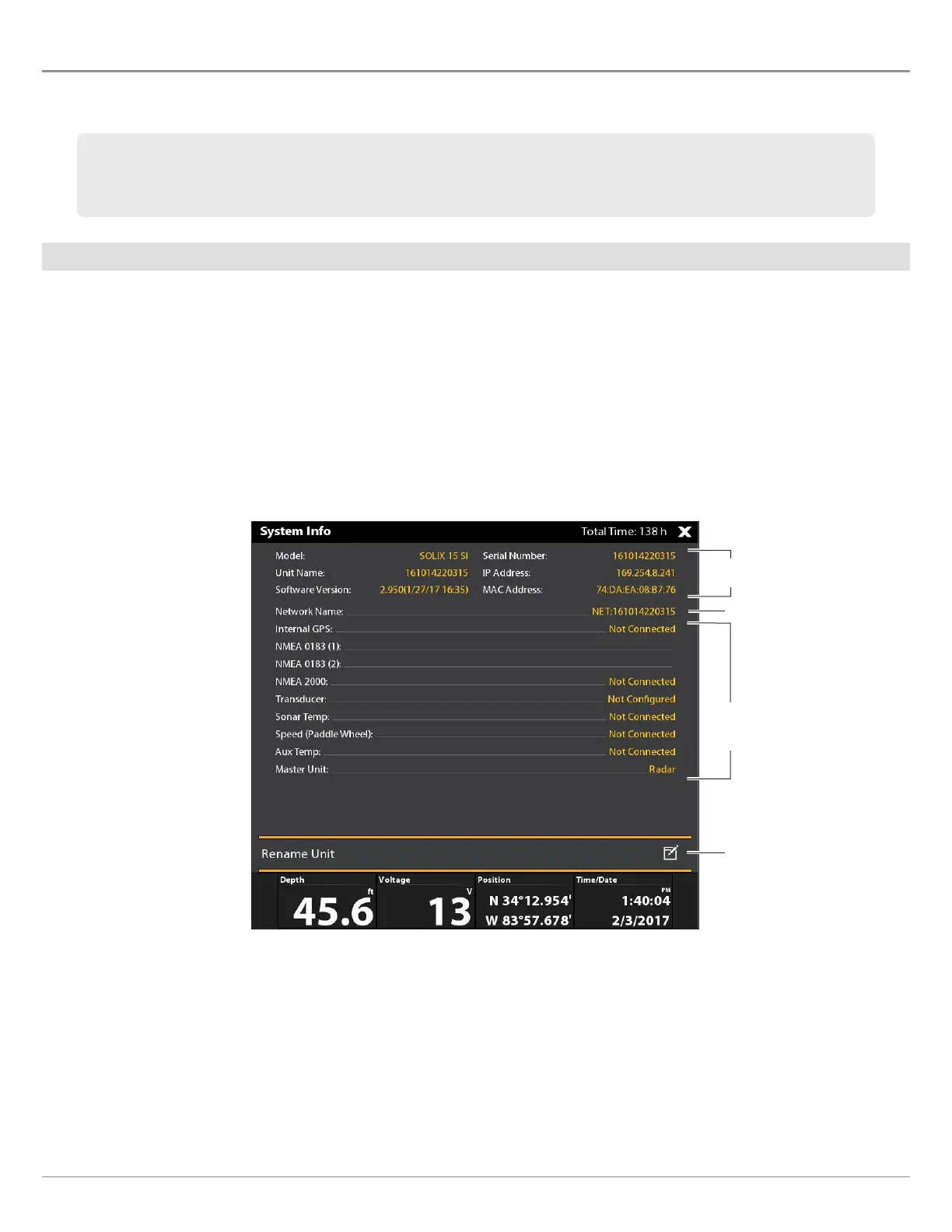

System Info
Review System Connections
Use the System Info dialog box to review control head information such as the software version and serial number. You can also
review connection information for the equipment connected to the control head ports, and you can change the control head name.
1. Press the HOME key.
2. Select Settings.
3. Select Network.
4. Select System Info.
Change the Control Head Name
When a control head is part of a network, you can change its name so it is easy to identify as a source on the network.
1. From the System Info dialog box (above), select Rename Unit. Use the on-screen keyboard to change the control head name.
2. Select Save.
When the SOLIX control head equipment and accessories are installed, the Setup Guide provides the prompts to
guide you through configuring the unit. When you attach new hardware to the control head after it has been
configured, the unit will detect the new hardware and provide additional prompts to add the equipment to the system.
rename the
control head
network name
control head ports
and connection
information
control head
information
