Humminbird SOLIX series User Manual

254
NMEA 2000 Setup
Open the Fuel Tool
1. Press the HOME key.
2. Select the Fuel tool.
Refill the Tank(s)
The menu options in this section are determined by the Fuel Management Mode (Manual or Automatic). See Set the Fuel Tank
Capacity for more information.
1. Open the Fuel tool, and select Refuel.
2. To fill the tank to the top, select Fill Up or Reset Fuel Used.
To add an amount to the tank, select Add Fuel. Use the on-screen keyboard to enter the amount and save it.

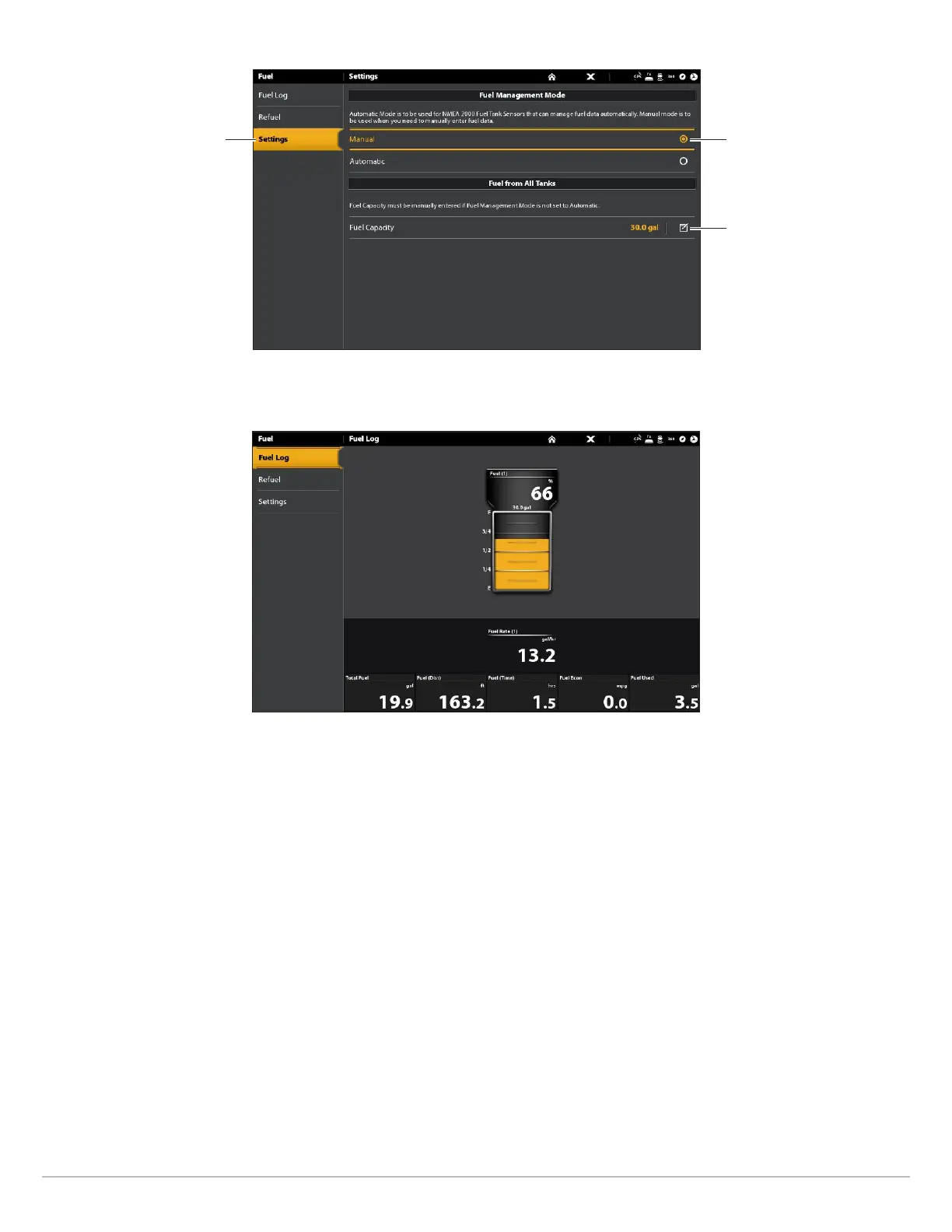

Setting up Fuel Tanks Manually
settings
select Manual
select Fuel Capacity
to enter data
manually
Displaying the Fuel Tool

Humminbird SOLIX series Specifications

General

Depth-Sonar Standard	Up to 1, 500 feet (varies by model)
Interface	Touchscreen
GPS	Yes
Cartography	Humminbird Basemap
Target Separation	2.5 inches
Networking	Ethernet, NMEA 2000
Memory Card Slot	Yes
Waterproof	IPX7
Operating Frequency	1.2MHz
Dimensions	Varies by model
Weight	Varies by model
Display Size	10.1", 12.1"
Display Resolution	1280 x 800 pixels (varies by model)
Operating Temperature	-15°C to 55°C (5°F to 131°F)
