Hunter DSP9200 Series - Measuring for Mixed;Adhesive Weights

Mixed Weights and Two Adhesive Weights (Inputting Distance and
Diameter for Both Planes):
The inner Dataset
®
arm will trigger as it is raised from the home resting position (left

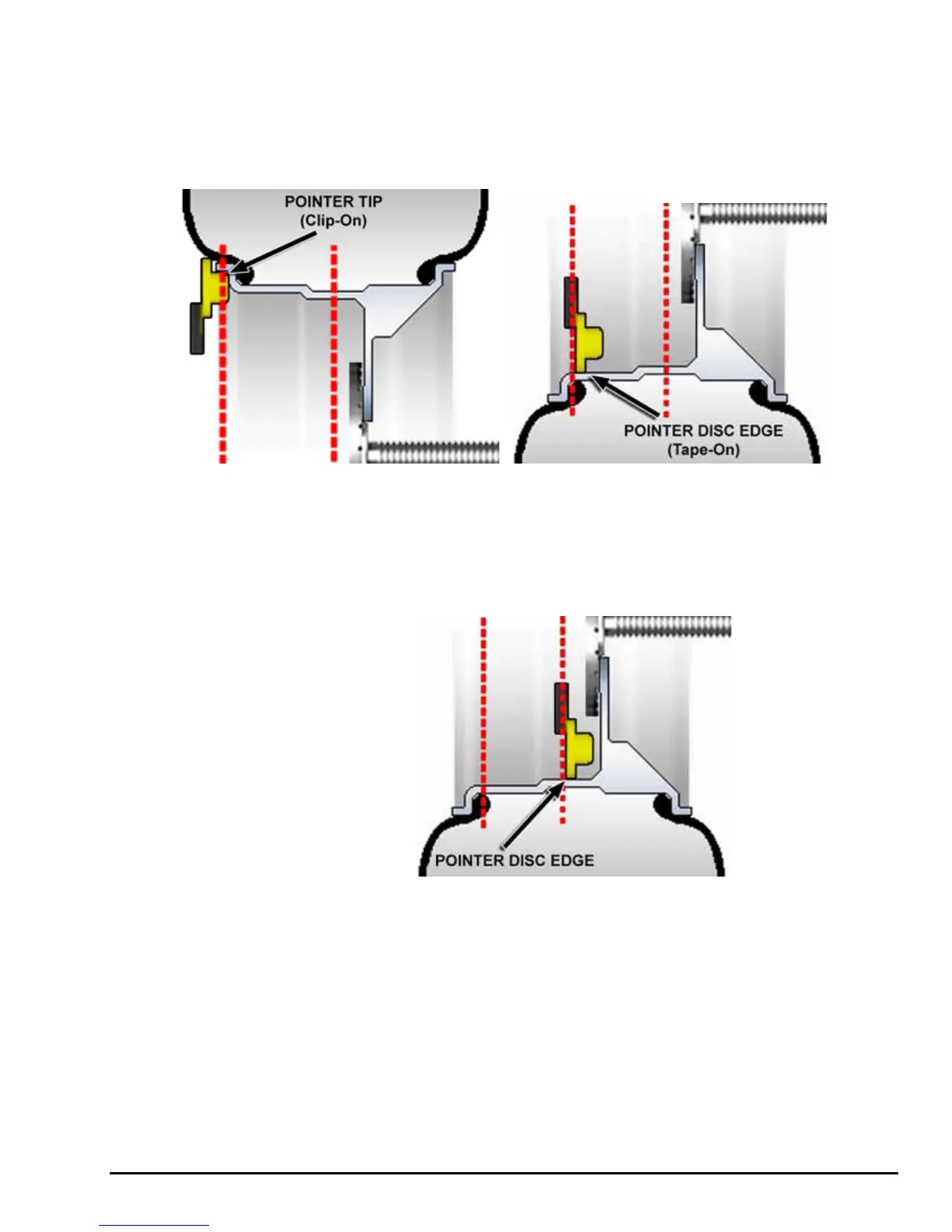

plane green LED “weight” will blink as a prompt). Place the pointer tip or pointer disc
edge at the desired left plane weight location, and step on the foot pedal. The
reading will be taken and the display will update the left plane weight position.
Mixed Weights Two Adhesive Weights
Right plane green LED will now blink as a prompt for the right plane weight to be input.
Before returning the inner Dataset
®
arm to the storage position, place the disc edge
at the desired right plane weight location and step on the foot pedal. The weight
position will be taken and the display will automatically change to show the right
weight LED and the new right plane weight dimensions.
A confirmation beep occurs, the readouts change to the newly acquired values and
the prompt stops flashing.
The dimension digits will now blink a prompt for optional “Split Spoke
®
” mode. Refer
to “Split Spoke® Feature,” page 53, or return the arm to the home position.
DSP9200 Series Balancer Operation Instructions 3. Balancing a Wheel
