Split Weight
®
Operation
Press either the left or the right “Split Weight
®
” button to divide that plane’s required
weight into two smaller weights.
Press the left or right
“Split Weight
®
” button repeatedly to gain additional size
and location choices. Continued presses will return display to single weight amount
and angle.
Each time a “Split Weight
®
” button is pressed, the two weights are increased to the
next largest weight size and are placed (fanned-out) further down the rim. The
display shows the amount and placement angle for both weights at the same time.
After all Split Weight
®
choices have been displayed, pressing the “Split Weight
®
”
button returns the display to the original single weight amount and angle.
6.0 oz
3.50 oz3.50 oz 3.75 oz3.75 oz
Correcting Large Imbalances
“Split Weight
®
” can also be used to apply three weights when needed. For example,
a large wheel may require 6.75 ounces. Not only is this size unlikely to be in the
weight tray, but splitting 6.75 ounces would likewise result in large weights. In this
case, apply one-third of the called for weight (in this case 2.25 ounces) at the 6.75
ounce weight location and spin again. The display will now call for a 4.5 ounce weight
to be placed on top of the 2.25 ounce weight. Press the
“Split Weight
®
” button
(to fan out the two weights) until they clear the previously applied 2.25 ounce weight.
Then place the two indicated ounce weights on either side of the 2.25 ounce weight
(as illustrated below) using the TDC display indicators.

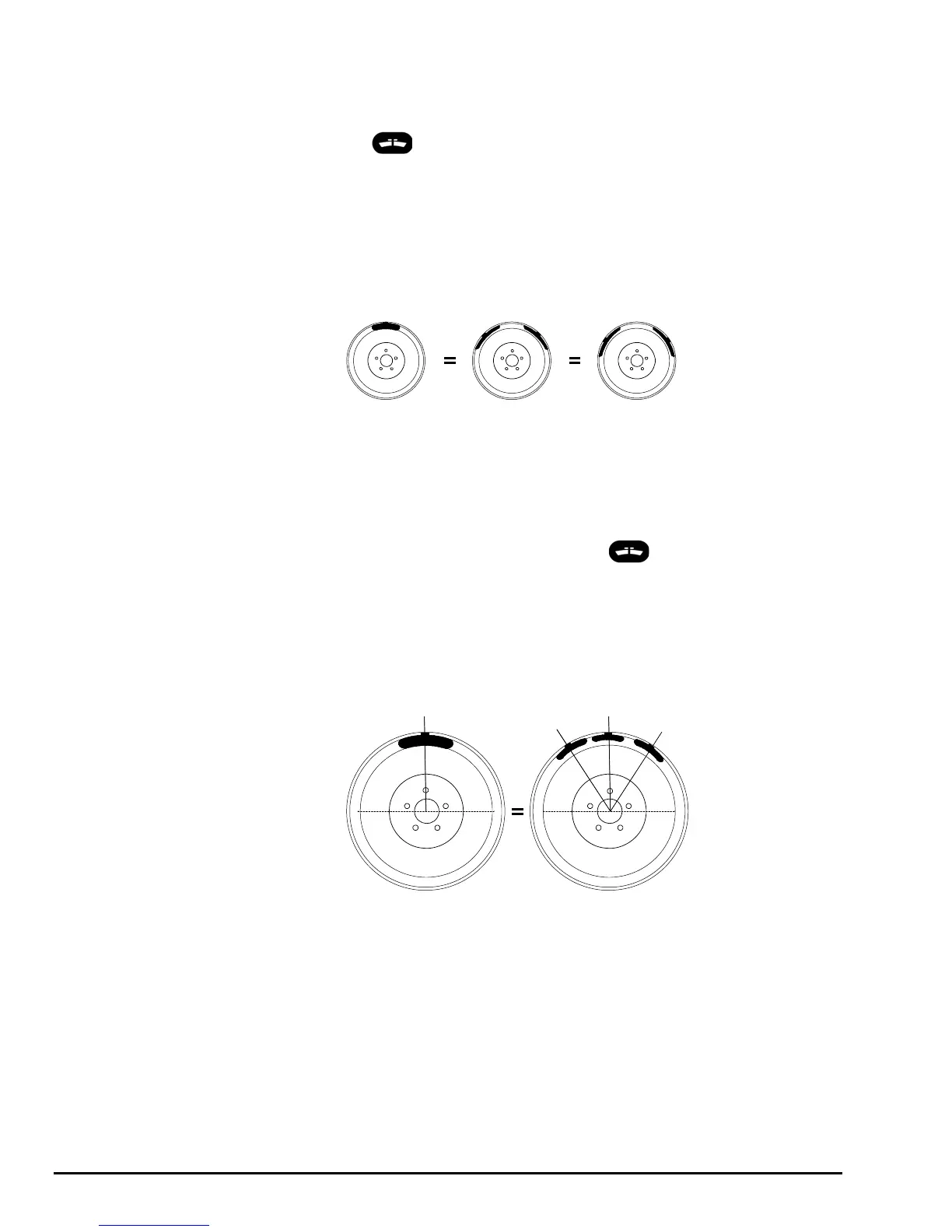

Splitting 1 Large Weight into 3 Smaller Weights
6.75 oz
REQUIRED
SINGLE WEIGHT
(3) WEIGHTS
EQUIVALENT TO 6.75 OZ
2.75 oz 2.75 oz
2.25 oz
