The diameter knob (3) is used to input the weight circle diameter of a weight plane.
“P195/75R-14”
ADHESIVE WEIGHT CLIP ON WEIGHT
The optional inner auto Dataset
®
arm can be used to automatically measure distance
and diameter. Refer to “Measuring the Wheel with Inner and Outer Auto Dataset
®
Arm(s),” page 26.
The optional outer auto Dataset
®
arm can be used to automatically measure wheel
width. Refer to “Measuring the Wheel with Inner and Outer Auto Dataset
®
Arm(s),”
page 26.

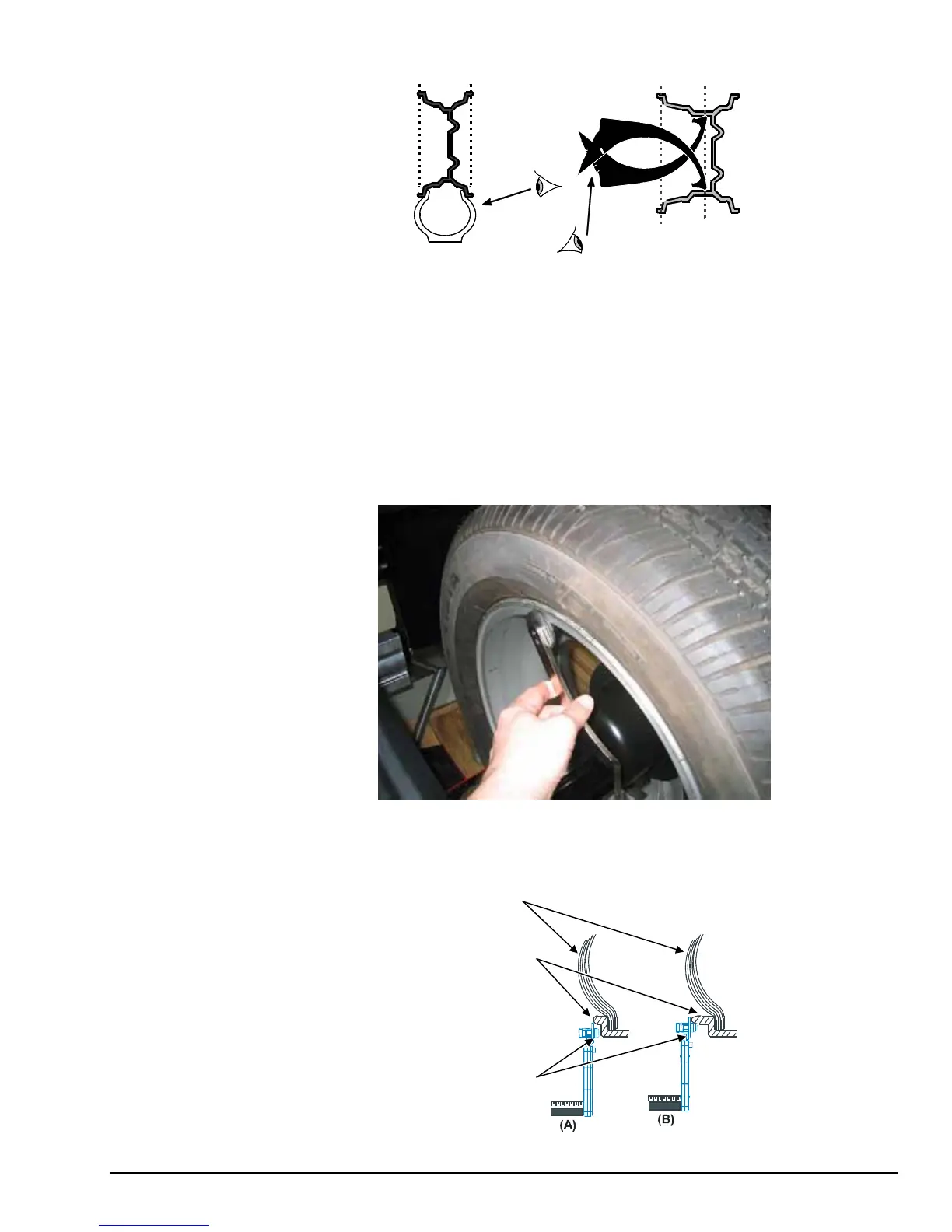

Measuring the Wheel at the Inner Rim Lip (Clip-On Weight)
Measure the distance to the wheel inner rim lip by pulling the sliding Dataset
®
arm
pointer outward until it is touching the wheel inner rim lip. Read the Dataset
®
arm
scale and set the distance knob to the reference number on the scale.
Most of the time, the Dataset
®
arm pointer will contact the rim lip as shown in
illustration (A) below. In some cases, the rim lip may be so wide that the pointer disk
touches the rim as shown in illustration (B) below. In either case, the balancer will
compensate for this and provide accurate weight locations.
TIRE
WHEEL
RIM LIP
DATASET
£
ARM
POINTER DISK
DSP9200 Series Balancer Operation Instructions 3. Balancing a Wheel
