Hunter DSP9200 Series - Inner Dataset Arm Calibration Steps

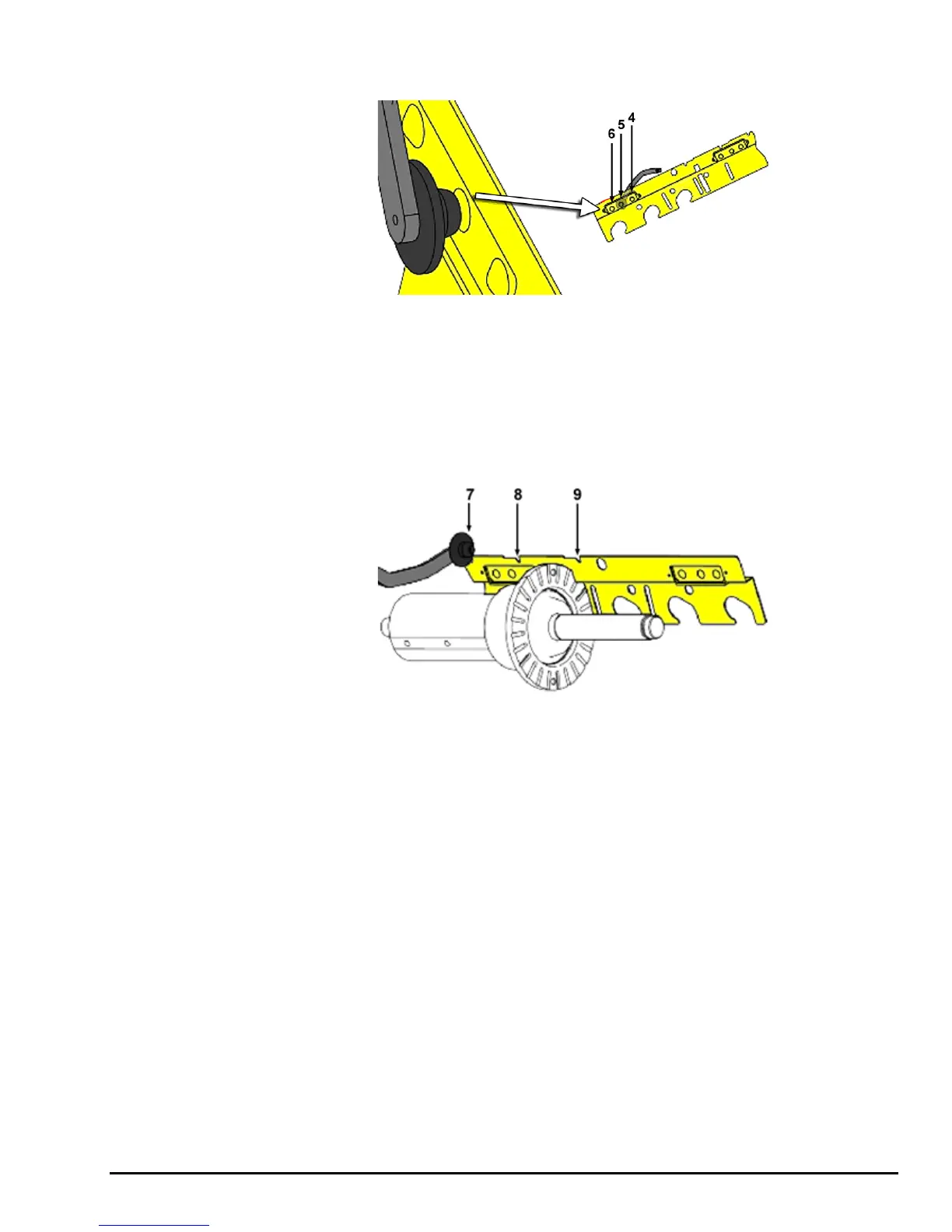

Place the inner Dataset
®
arm at downward position “4.” Tap the foot
pedal once or press “Enter.”
Move the inner Dataset
®
arm to downward position “5.” Tap the foot
pedal once or press “Enter.”
Move the inner Dataset
®
arm to downward position “6.” Tap the foot
pedal once or press “Enter.”
Remove the metal plug from the inner Dataset
®
arm and thread it back
onto the calibration tool. Reinstall the black roller onto the inner Dataset
®
arm using the 1/8 inch Allen wrench.
Position the calibration tool parallel to the spindle shaft on the hub using
the hub mounting slot as shown.
Place the inner Dataset
®
arm at the position “7.” Tap the foot pedal once
or press "Enter.”
Move the inner Dataset
®
arm to position “8.” Tap the foot pedal once or
press “Enter.”
Move the inner Dataset
®
arm to position “9.” Tap the foot pedal once or
press “Enter.”
If optional outer Dataset
®
arm is not installed, calibration is complete. If optional outer
Dataset
®
arm is installed, refer to “Outer Dataset
®
Arm,” page 62.
