Lightning Transformers with
Controllers
Hydrawise controllers are capable of operating lighting transformers equipped with the
PXSYNC interface box. A commonly used transformer with the PXSYNC is the PX or EX
Transformer. We also offer a DX Transformer that can be controlled from a irrigation
controller via the 24 volt EXTERNAL connection built inside the controller.
Connect wires from the first PXSYNC or external ports inside the DX box to a station
output number (and the Common) on the Hydrawise controller.

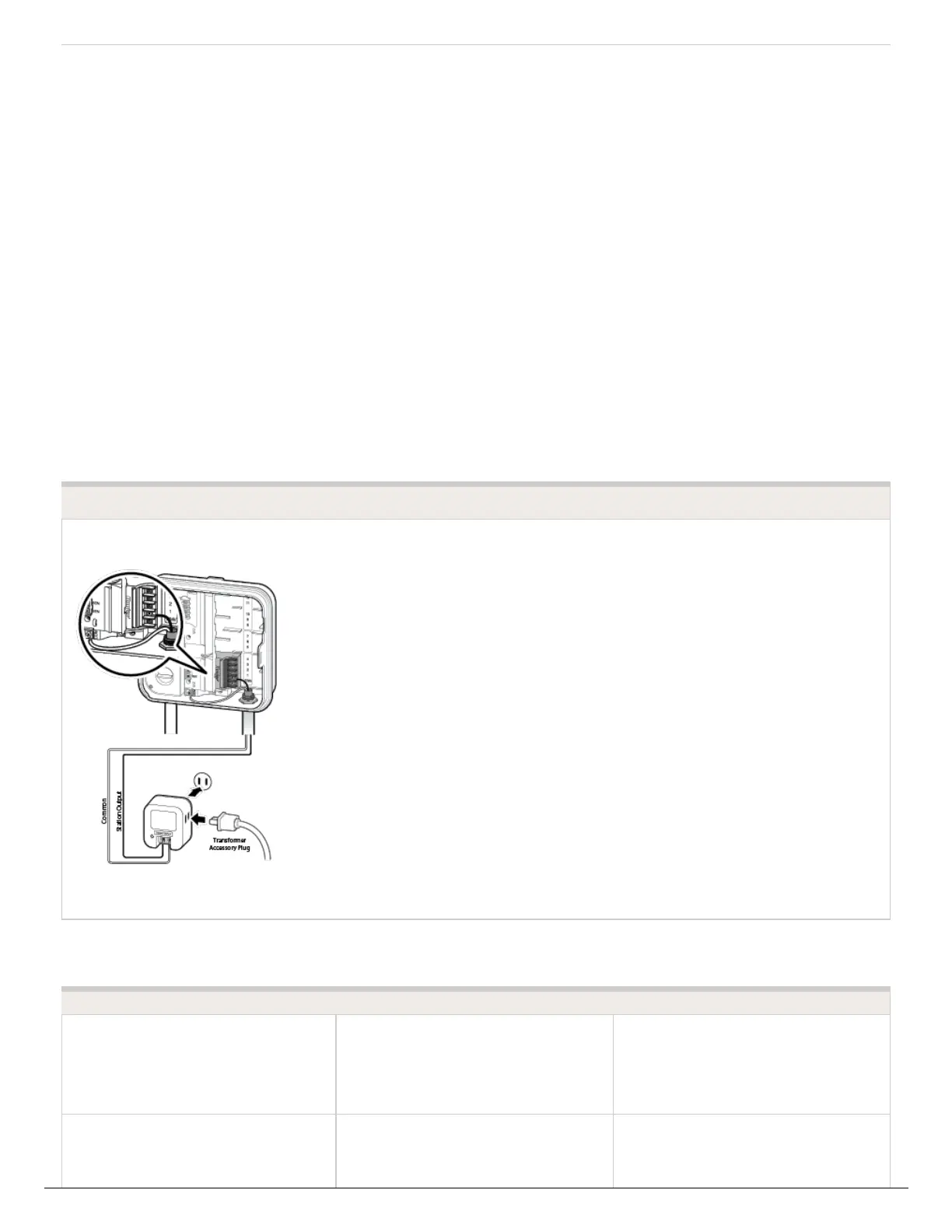

PRO-C with PX SYNC Example
Important Pump/Master Valve notes:
Controller P/MV Terminal Output
HC
If a pump or master valve is in use,
the lighting transformer should not
be used in conjunction with
irrigation controller.
Single station output will operate
one at a time. Irrigation must not be
programmed for duration of the
lighting schedule.
PRO-HC
If a pump or master valve is in use,
the lighting transformer should not
be used in conjunction with
Single station output will operate at
a time. Irrigation must not be
programmed for duration of the
