9
NOTE: Complete this section only if you have a
master valve installed in your irrigation system. A mas-
ter valve is a “normally closed” valve installed at the
supply point of the main line that opens only when the
controller initiates a watering program.
1.

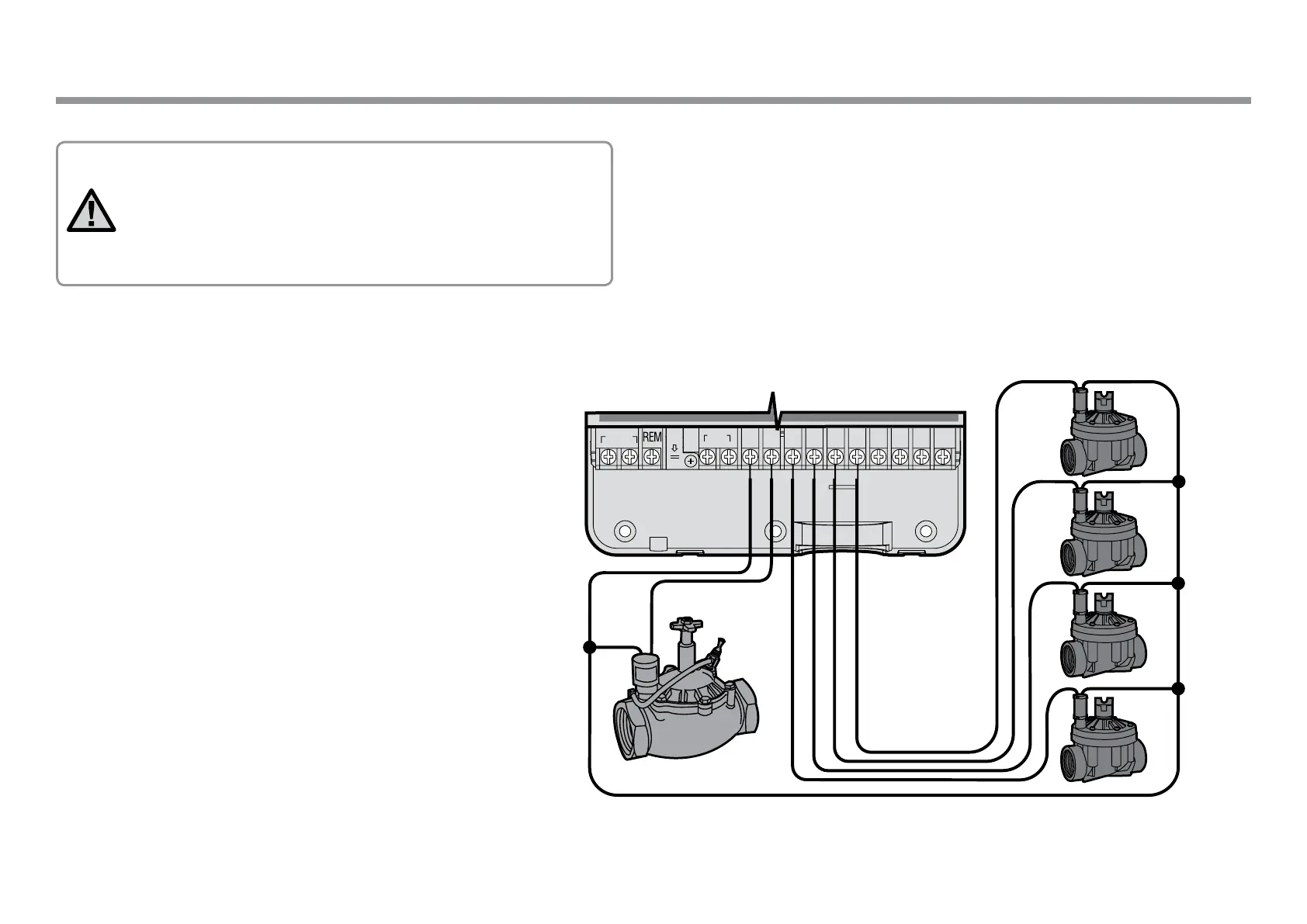

At the Master Valve, attach the common wire to either solenoid wire
of the valve. Attach a separate control wire to the remaining solenoid
wire.
2. The common wire should be attached to the C terminal inside the
controller. The other wire coming from the master valve should be
attached to the P terminal inside the controller. Tighten each termi
-
nal screw.
SEN C P 1 2 3 4 5 6 7 8
24VA C
BAT
Master Valve
Valve 2
Valve 1
Valve 3
Valve 4
Master
Valve Wire
Valve Common Wire
Valve Wires
CONNECTING A MASTER VALVE
