11

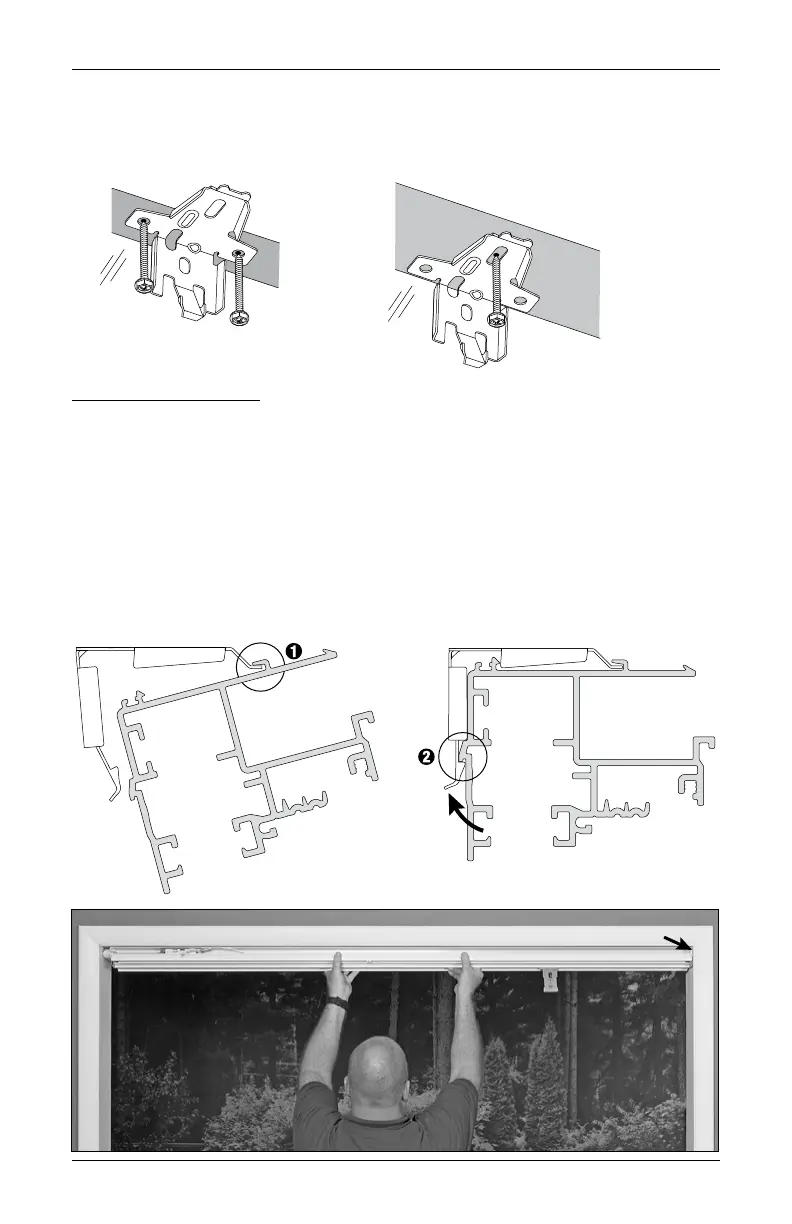

INSTALLATION – INSIDE MOUNT
■
Attach the installation brackets using the screws provided.
IMPORTANT: Be sure the front edges of the installation brackets are level and aligned to
each other. Use shims if necessary to level the brackets.
Mount the Headrail
■
Mount the headrail into the installation brackets. Do not remove any components from the
headrail. Both end plates should remain attached to the ends of the headrail.
➤
Place the front groove on the headrail onto the front lip of the installation bracket.
➤
Position the end of the headrail opposite the fabric stack flush against the jamb.
This leaves a gap on the stationary rail side. The stationary rail fills this gap when
anchored.
➤
Rotate the rear of the headrail up and push back until the headrail snaps in place.
Front of Bracket
Snap in
Place
Gap Left Stack Shown Flush
