INSTALLATION – INSIDE MOUNT
10
Inside/Ceiling Mount

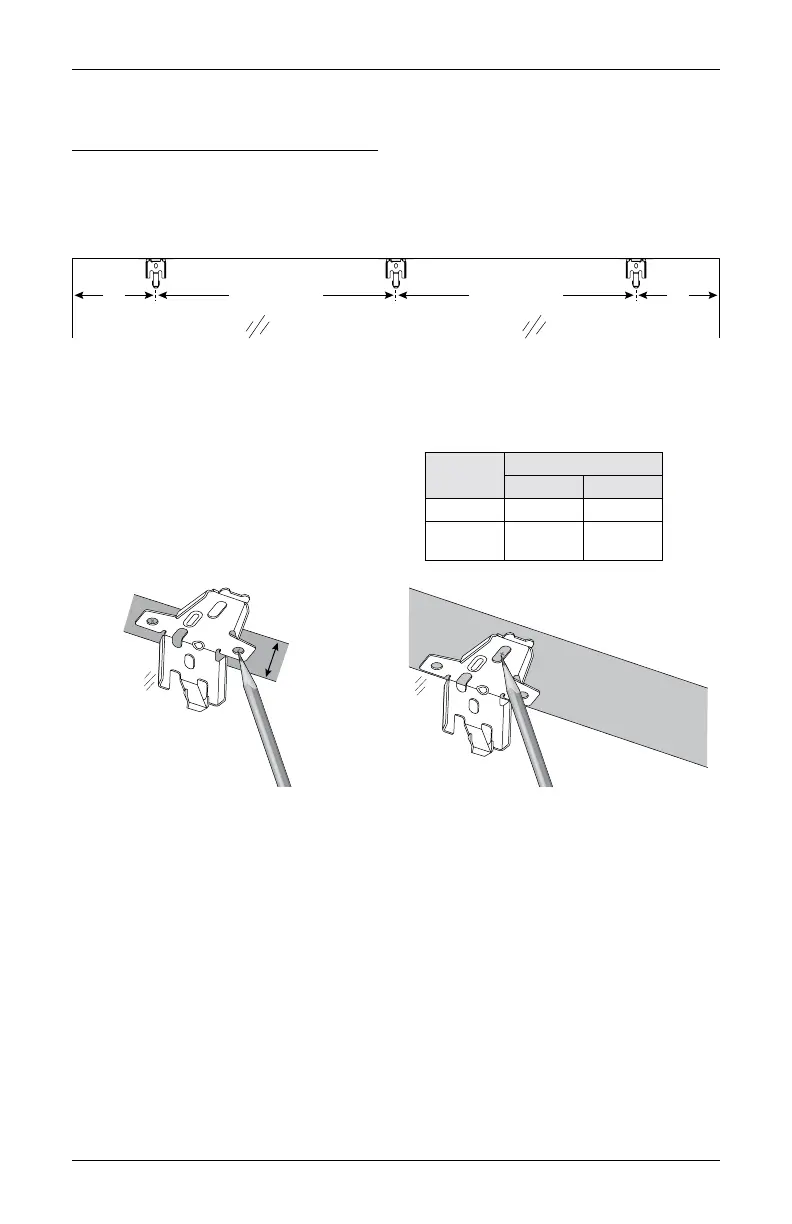

Mount the Installation Brackets
■
Mark 8" in from each jamb. This marks the center points of the two end brackets.
➤
Mark the locations of any additional brackets, spaced evenly between the two end
brackets.
■
Center the brackets on your marks and mark the screw holes.
➤
The minimum casement depth for mounting the installation brackets is
1
⁄
2
". Mark both
of the winged screw holes with shallow mounting depths.
➤
The minimum casement depth for a
fully recessed mount varies with
valance type and fabric pleat size, as
shown in the table. Mark the center
screw hole when depth permits.
■
Drill the screw holes using a
3
⁄
32
" drill bit.
CAUTION: Use drywall anchors when mounting into drywall. Use the drill bit size
recommended by the manufacturer.
Window/Door Opening
8"
Space Evenly
Jamb
Space Evenly
8"
Valance
Type
Fully Recessed Depth
3
⁄
4
" Pleat 1
1
⁄
4
" Pleat
Aluminum 3
7
⁄
8
" 4
5
⁄
8
"
Alternative
Wood
4
1
⁄
4
" 5"
Minimum
1
∕
2
"
Use Center Hole
When Depth Permits
