INSTALLATION – OUTSIDE MOUNT

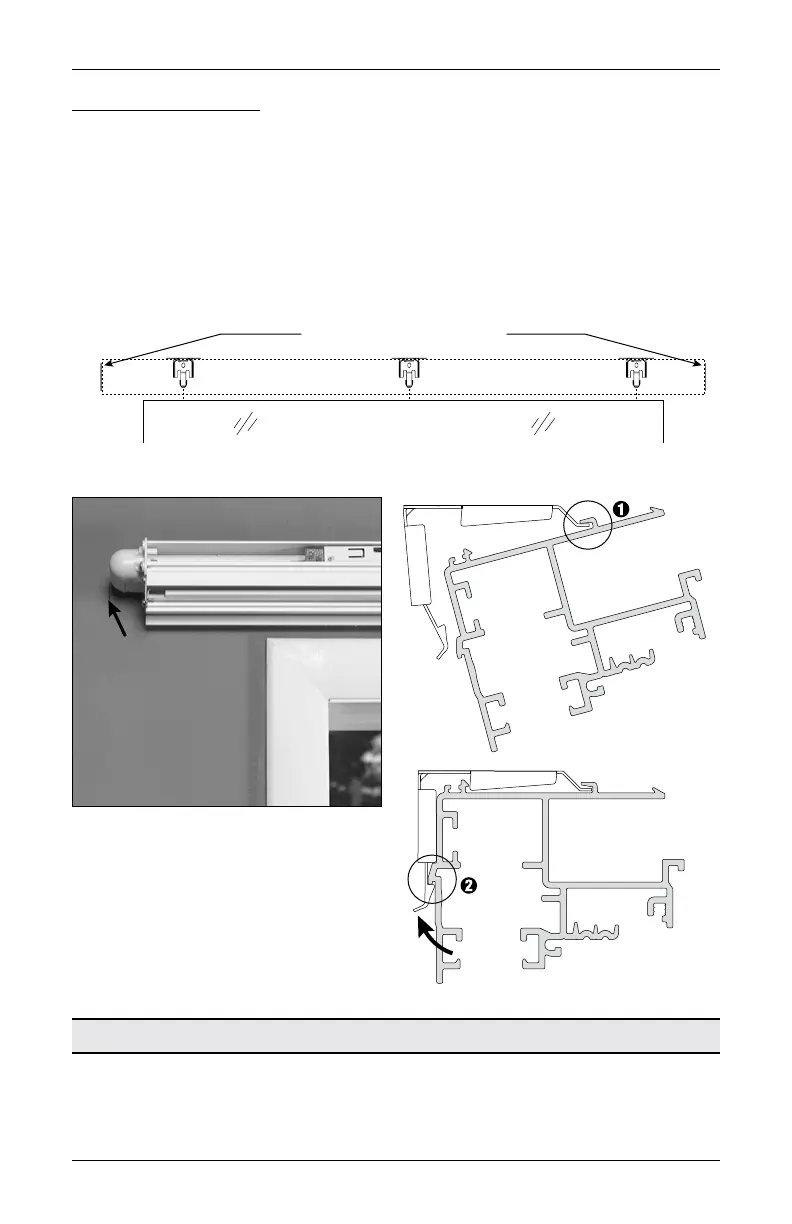

Mount the Headrail
■
Mount the headrail into the installation brackets. Do not remove any components from the
headrail. Both end plates should remain attached to the ends of the headrail.
➤
Carefully align the headrail with the end marks on the mounting surface. Headrail
position cannot easily be adjusted after the headrail is mounted. (Remember that the
end of the gear box is the end of the headrail on the stacking side.)
➤
Place the front groove on the headrail onto the front lip of the installation brackets.
➤
Rotate the rear of the headrail up and push back until the headrail snaps in place.
Proceed to “Install the Fabric Stack” on page 12.
Align Headrail with End Marks
Snap in
Place
Front of Bracket
Align End of
Gear Box with
End Mark
To Next Page
