INSTALLATION – OUTSIDE MOUNT
8
■

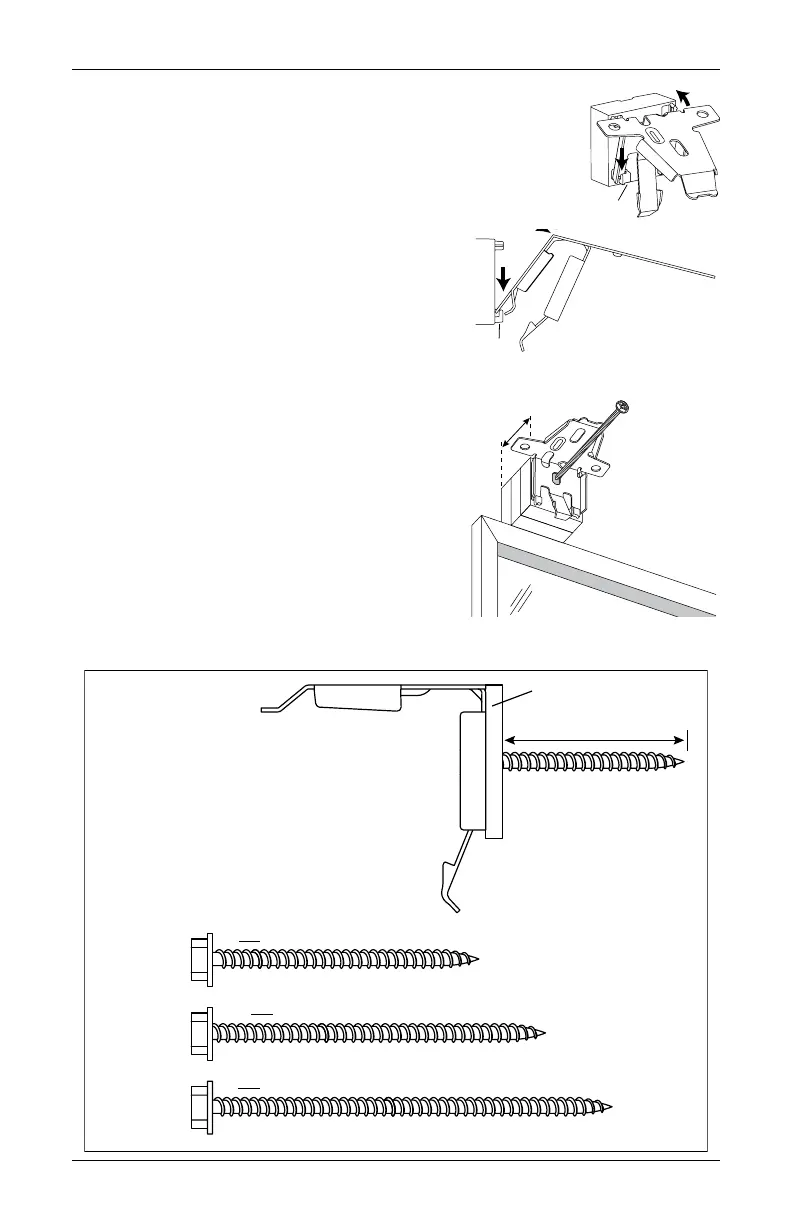

If using spacer blocks, first attach the installation bracket to the
1
⁄ 2 " spacer block before stacking additional spacer blocks or
shims together.
➤
Insert the legs of the installation bracket into the tabs on the spacer
block.
➤
Then rotate the installation bracket back.
➤
Use a maximum of three spacer blocks (1
1
⁄ 2 ") per
installation bracket.
■
Attach the spacer blocks and installation brackets
with #6 hex head mounting screws long enough
for asecure installation. (Longer screws are
not provided.
➤
The top of the spacer blocks should be at the
desired shade height.
➤
The front edges of the installation brackets
must be level and aligned to each other.
CAUTION: Use drywall anchors when mounting
into drywall.
CAUTION: The rear of the spacer blocks must be
flush against a flat surface. Do not mount spacer
blocks and installation brackets oncurved molding.
Tab
Tab
Longer Screw
(Not Provided)
Maximum
1
1
∕ 2 "
Never use more than 1
1
∕ 2 " of spacer blocks/shims!
IMPORTANT: The provided 1
1
∕ 2 " screws can
only be used with a maximum of one
1
∕ 8 " shim.
You will need to supply longer screws
if additional clearance is required.
A minimum 1
1
∕ 4 " length of screw threads must
extend beyond the last spacer block or shim.
Use appropriate wall anchors when mounting
into drywall.
2" (Not provided; up to
5
∕ 8 " of spacer blocks/shims)
2
1
∕ 2 " (Not provided; up to 1
1
∕ 8 " of spacer blocks/shims)
3" (Not provided; up to 1
1
∕ 2 " of spacer blocks/shims)
1
1
∕ 4 " Minimum
Shim
Maximum of One
Shim with Provided
1
1
∕ 2 " Screws
