HunterDouglas Duette - Installation Guide; Installation Overview and Mounting Types

INSTALLATION
4
Installation Brackets Required
The number of installation brackets required varies with
headrail width, as shown in the table.
NOTE: Two installers are recommended for
shades over 84" wide.
Installation Overview
Installation of Vertiglide
™
shades varies based on the shade mounting type, stacking
configuration, and the valance type selected.

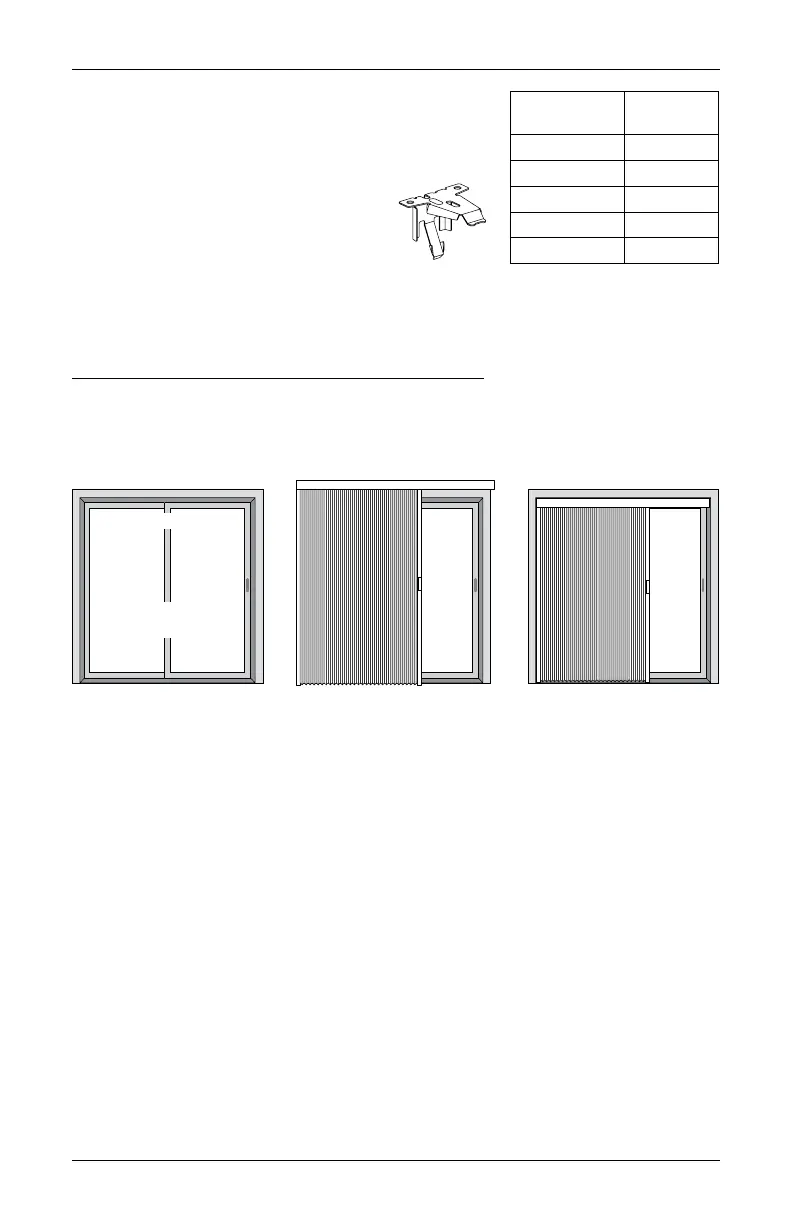

Mounting Types and Window Terminology
■
Review the mounting types and basic window terminology illustrated below. Determine
if your shade is an outside mount or inside mount. For ceiling mount applications, refer to
the inside mount instructions.
*Use all brackets provided
Shade
Width
Brackets
Required*
12" – 31" 2
31
1
⁄ 8 " – 66" 3
66
1
⁄ 8 " – 96" 4
96
1
⁄ 8 " – 139" 5
139
1
⁄ 8 " – 168" 6
Molding
Floor
Jamb Jamb
Head Jamb
Outside Mount
Shade mounts outside
door or window opening.
Inside Mount
Shade fits within door
or window opening.
Window or
Patio/Sliding Door
