INSTALLATION
28
■

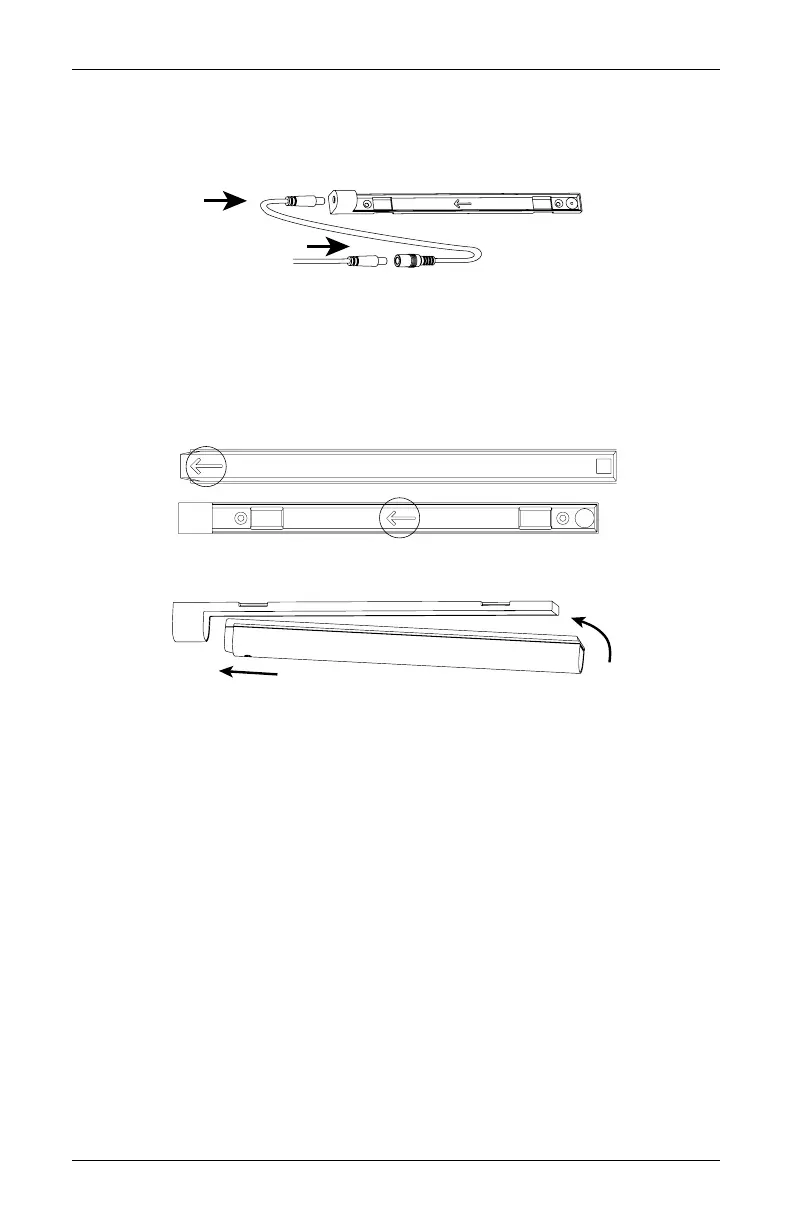

Connect the power cable from the motor side into the power socket on the rechargeable
battery mount.
NOTE: With longer extension cables, wire retainers (not supplied) are recommended to
secure the cable.
Insert the Battery Wand into the Battery Mount
NOTE: The rechargeable battery wand ships fully charged, so it is ready to install out of the
package.
■
Match the direction of the arrow on the underside of the battery wand with the arrow on
the battery mount.
■
Insert the nose of the battery wand into the cavity of the battery mount.
■
Push the battery wand flush into the mount until the battery snaps into place.
CAUTION: Failing to insert wand properly may cause it to fall out of the mount, posing an
injury risk and potentially damaging the wand. Additionally, when mounting on a door, closing
the door with excess force may cause battery wand to dislodge from the mount, also posing
an injury risk and possibly damaging the wand.
Extension
Cable
(If Needed)
Power Cable
from Shade
To Next Page
