INSTALLATION
8
■

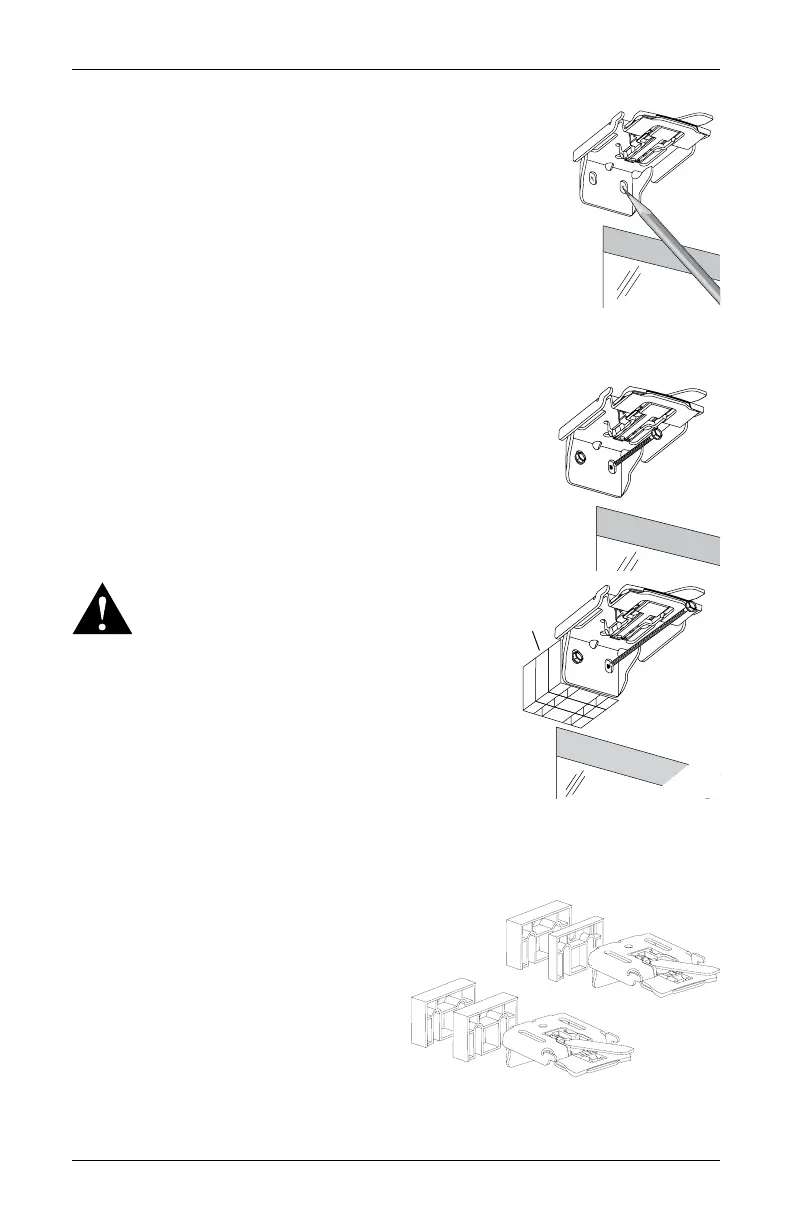

Center the installation brackets on your marks and mark the
location of the screw holes.
➤
A minimum 1" flat vertical height is required to mount the
installation brackets.
➤
Position the top of the installation brackets at the desired
height of the shading. The brackets must be level and aligned.
CAUTION: The rear of the blocks/brackets must be flush against a
flat mounting surface. Do not mount brackets on curved molding.
IMPORTANT: Additional clearance is required for PowerView
®
Gen 3 shadings with a headrail-mounted battery wand or rechargeable battery wand. See
“Additional Clearance with Spacer Blocks” on page 8.
■
Use a
3
⁄ 32 " drill bit to drill holes for the mounting screws.
CAUTION: Use drywall anchors when mounting into drywall.
■
If no additional clearance is required, attach the installation
brackets directly to the mounting surface using the screws
provided.
IMPORTANT: The front edges of the installation brackets must
be level and aligned to each other.
WARNING: Failure to properly align the
brackets could result in the headrail releasing
from the brackets.
Additional Clearance with Spacer Blocks
NOTE: A minimum of
3
⁄ 4 " additional clearance is required for PowerView Gen 3 shadings with
a battery wand. A minimum of 1" additional clearance is required for PowerView Gen 3
shadings with a rechargeable battery wand.
■
If using
1
⁄ 4 " or
1
⁄ 2 " spacer blocks,
attach the spacer block(s) and
installation bracket to a flat vertical
mounting surface with #6 screws for
inside mount or #8 2½" screws for
rechargeable battery wand outside
mount to ensure a secure installation.
IMPORTANT: The solid side of the
spacer blocks must face toward the mounting surface.
Spacer
Blocks
Longer
Screws
1
1
⁄ 2 " Maximum
Added Clearance
1
∕ 2 "
1
∕ 4 "
Battery Wand
1
∕ 2 "
1
∕
2
"
Rechargeable
Battery Wand
