Headrail-Mounted Rechargeable Battery Wand
Install the Rechargeable Battery Wand Clips
■
Attach the battery wand clips to the headrail.
■
Hook the battery wand clip onto the back channel of the headrail.
IMPORTANT: Position the clip so that the battery wand will be between installation
brackets.
Install the Rechargeable Battery Mount into the Battery Wand Clips
■
From the back of the shading headrail, connect the power cable from the motor side into
the socket on the rechargeable battery mount.
■
Align the slots in the battery mount with the battery wand clips.
■
Push the battery mount onto the battery wand clips until it snaps into place. Check to
make sure the battery mount is secure.
CAUTION: Be sure the cable does not become pinched by the battery wand clips during
installation. Damage or overheating of components could result.
NOTE: Do not install the rechargeable battery wand into the battery mount before
installing the shading. See “Headrail-Mounted Rechargeable Battery Wand” on page 11
for instructions on inserting the battery wand into the battery mount.

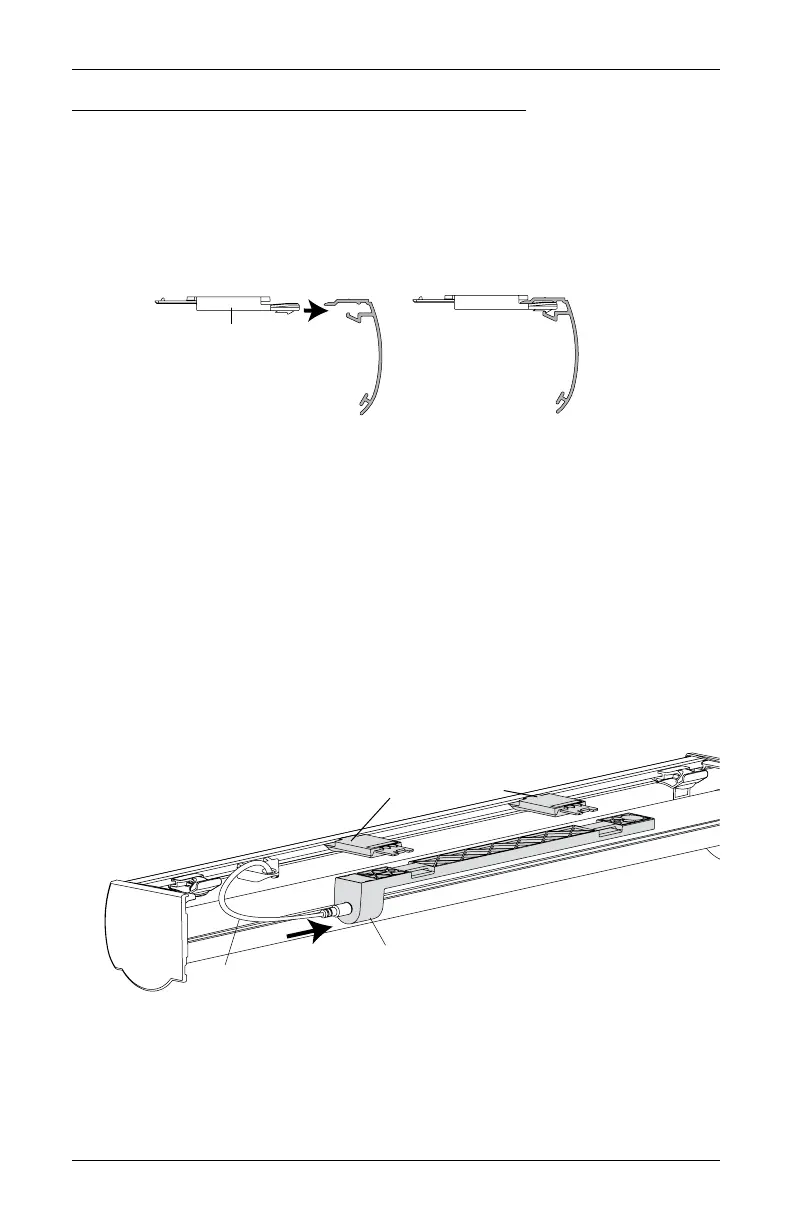

Front of
Headrail
Rechargeable
Battery Wand Clip
Rechargeable
Battery Wand
Mount
Power
Cable
Rechargeable
Battery Wand Clips
