Parts List

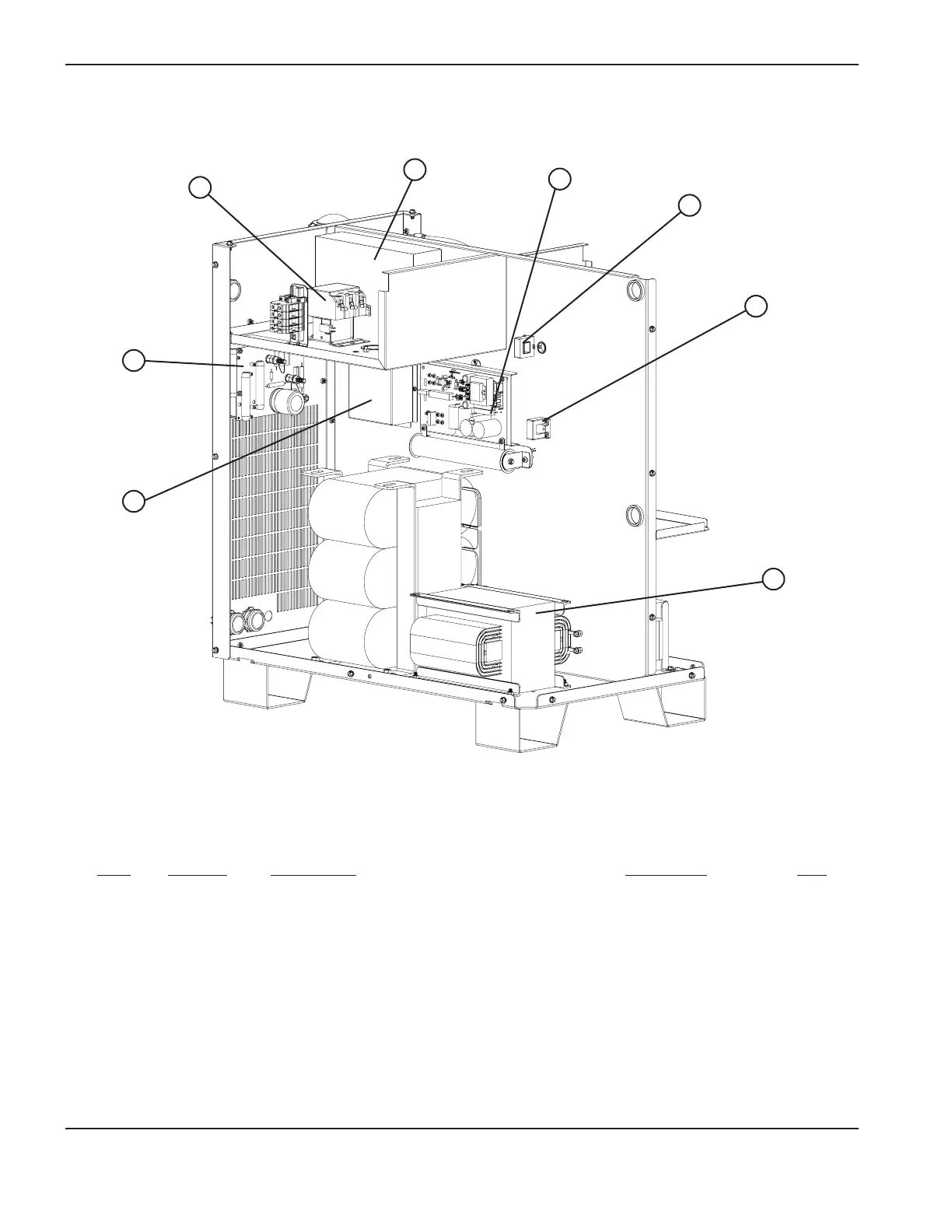

6-4 HPR130XD Auto Gas – 806330

Power supply

Part

Item Number Description Designator Qty.

1 003149 Relay: Pilot arc, 120 VAC CR1 1

2 041837 PCB: I/O PCB6 1

3 003249 Contactor CON1 1

4 109036* EMI filter: 60 A, 440 VAC 3PH 1

5 229238 Start circuit assembly PCB1 1

6a 109004 Current sensor: Hall 100 A, 4 volt CS3 1

6b 109004 Current sensor: Hall 100 A, 4 volt CS1 1

7 014280 Inductor: 4MH 1

* 400/415 volt power supplies only
