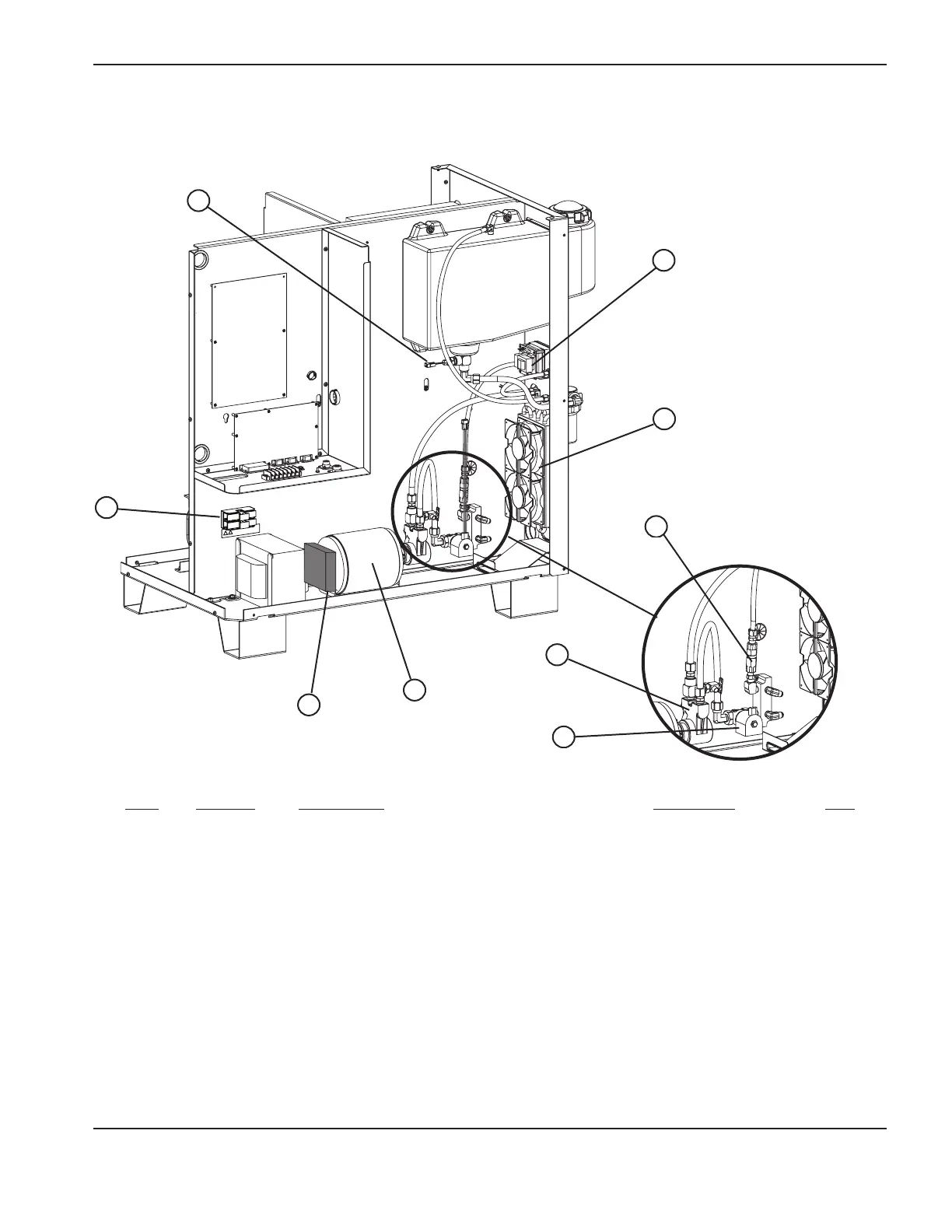

Parts List

HPR130XD Auto Gas – 806330 6-5

Power supply

Part

Item Number Description Designator Qty.

1 008551* Fuse: 7.5 A, 600 volt F1, F2 2

008709** Fuse: 20 A, 500 volt F1, F2 2

2 109393 Temperature sensor T2 1

3 229206 Flow switch assembly FLS 1

4 027978 Heat exchanger assembly 1

027185 4 in. fan 2

5 006075 Check valve: 1/4 in. FPT 1

6 228170 Kit: Pump with clamp 1

7 006046 Solenoid valve assembly: 3/8 in., 240 volt CLT SOL 1

8 228538 Kit: Motor with clamp 1

9 127039*** Fan (for pump motor): 230 cfm, 115 VAC, 50 –60 Hz 1

10 031122 Pump to motor shaft coupler (not shown) 1

* 380, 400, 440, 480 and 600 volt power supplies

** 200/208 and 240 volt power supplies

*** 415 volt power supply only
