sMart touCh: Photo eye / refleCti-Guard (rG-r)
1. Connect photo eye wiring.
NOTE: Run a jumper between photo eye -24V and CM terminals.
2. Turn ON power.
3. Access the Installer Menu and congure SENSOR setting
according to the entrapment area that the photo eye is
monitoring. Refer to table on page 29.
S1 0
SENSOR #1 TYPE
S1 4 (EYE OPEN)
SENSOR #1 TYPE
Installer Menu
showing Sensor 1
set to Eye Open
(Option #4)
STOP BUTTON
OPEN BUTTON
CLOSE BUTTON
REMOTE OPEN AND
RADIO CONTROL
OPEN/CLOSE
1
OPEN PARTIAL
INTERLOCK OPEN
TIME CLOCK OPEN
FREE EXIT DETECTOR
DISABLE EXIT DETECTOR
DISABLE CLOSE TIMER
INSIDE OBSTRUCTION
VEHICLE DETECTOR
OUTSIDE OBSTRUCTION
VEHICLE DETECTOR
SHADOW/RESET
VEHICLE DETECTOR
SENSOR 1
SENSOR
COM
DO NOT USE
SENSOR 2
DO NOT USE
SENSOR 3
DO NOT USE
CHARGER
AC LOSS
LOCK INTERLOCK
EMERG CLOSE
FIRE DEPT OPEN
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
Smart Touch Controller
LIMIT DUAL GATE
RADIO OPTIONS
DRIVE
POWER
RS485
MOTOR USER 1
USER 2
USER 3
VEHICLE DETECTORVEHICLE DETECTORVEHICLE DETECTOR
STOP/BUZZER
FREE
EXIT
INSIDE
OBSTR
OUTSIDE
OBSTR
SHADOW
RESET
WIEGAND
HySecurity
COM
NO
MX000585
VERSION
S/N
RS232
DISPLAY
VEHICLE DETECTOR
COM COMA B
RPM
COMOPEN
S 1
+24V +24V
STATU S
LED
24V AC Acce
s
sory power
+
24
V
D
C
COMMON
Connect NC relay
wire to SENSOR 1,
2, or 3.

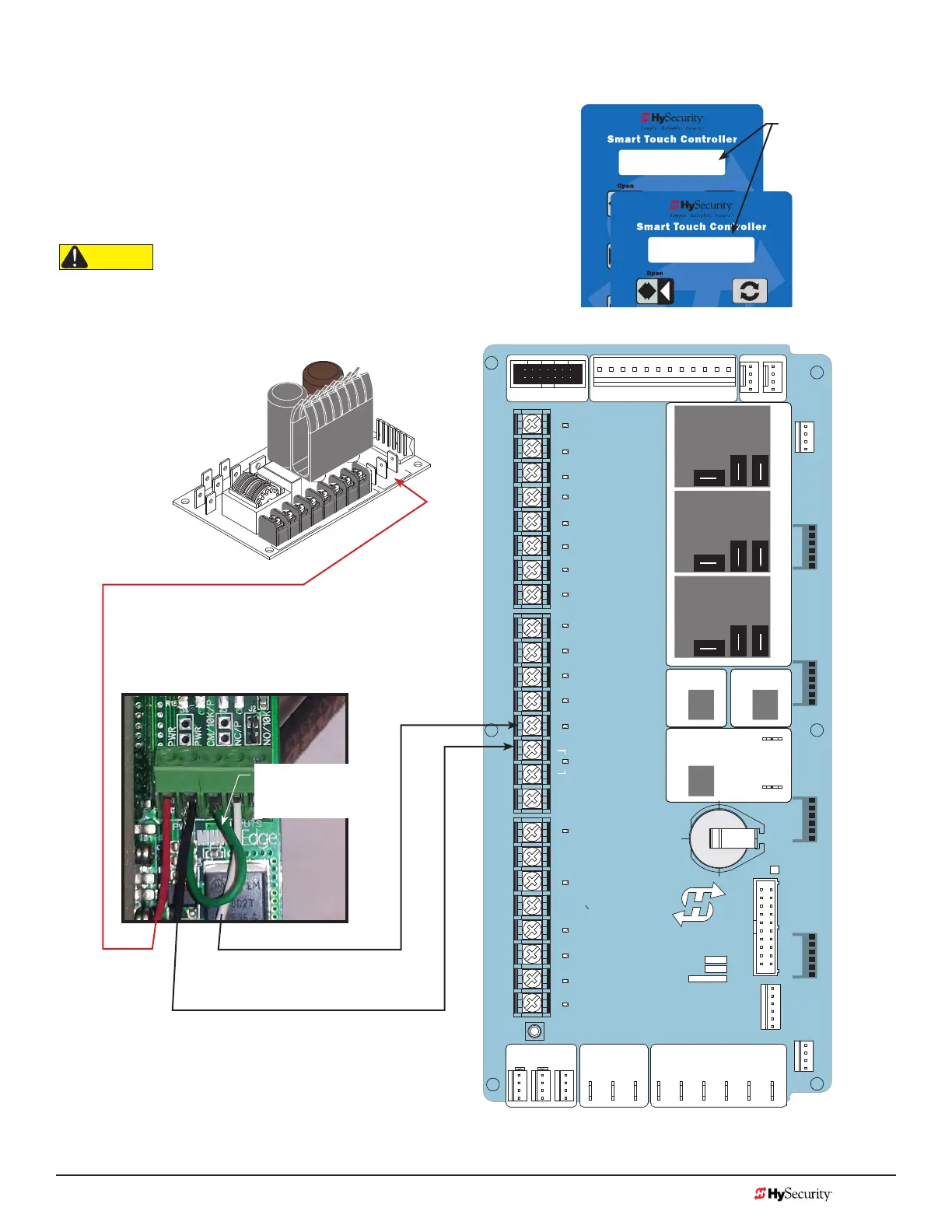

Reflecti-GUARD Photo Eye
Power Supply
Board
COMMON / NEG. to SENSOR COM
+24V
NOTE: If you receive an Alert, "!ACTION BLOCKED" "Photo Eye
Open" PEO or "Photo Eye Close" PEC, take steps to align the photo
eye. Refer to Photo Eye Alignment Feature on page 104.
CAUTION
All external entrapment protection sensors must be
NC sensor outputs and wired to the SENSOR COM
terminal for monitoring and powering purposes. The
sensor becomes actively powered when the gate
operator's motor runs.
To pull 3 wires instead of
4, jumper, PWR Relay to
CM terminal
MX3657-01 Rev. D ©2020 Wiring HySecurity Sensors: Smart Touch
hysecurity.com | 800-321-9947 127
To Next Page
