rePlaCe the red Vent PluG With the Breather CaP
NOTICE: Replace the red vent plug with the breather cap before using the operator. If you do not, premature
pump shaft failure will occur and you will void the Limited Warranty.
The gate operator has a vent plug that keeps the hydraulic uid from spilling during shipment. The vent plug
must be replaced by the breather cap before operating the barrier arm.
1. Remove the vent plug and
discard it.
2. Replace the vent plug with the
breather cap.
learn When and
What to adjust
The StrongArm is pre-adjusted
at the factory before shipment. If
the arm length changes, it may be
necessary to re-adjust the arm and
gate operator. To level the arm
and properly adjust the StrongArm,
perform all adjustments in the
sequence listed:
1. Arm Leveling and Balancing
2. Valve Adjustments: Pressure
and Brake
3. Adjust Limit Switches
4. Emergency Override: Manual
Bypass
Recognize when you need to adjust
the valves:
• Slamming or rocking arm
• Open arm drifts down
• Operator pressure builds, but
arm does not move
• Arm moves slowly (indicates
high pressure)
• Premature battery drain on
DC operators
Brake valves are factory-set to midpoint, two turns. This should be sufcient for most applications.
Keypad
Hold Open switch
Power Disconnect
switch
Brake valve
CLOSE direction
Pressure
Relief
valve
Manual Bypass
knob
Needle valve
Display
Brake valve
OPEN direction
Filler
plug
Quick Disconnects
Replace with
Breather Cap
Remove
Vent
Plug

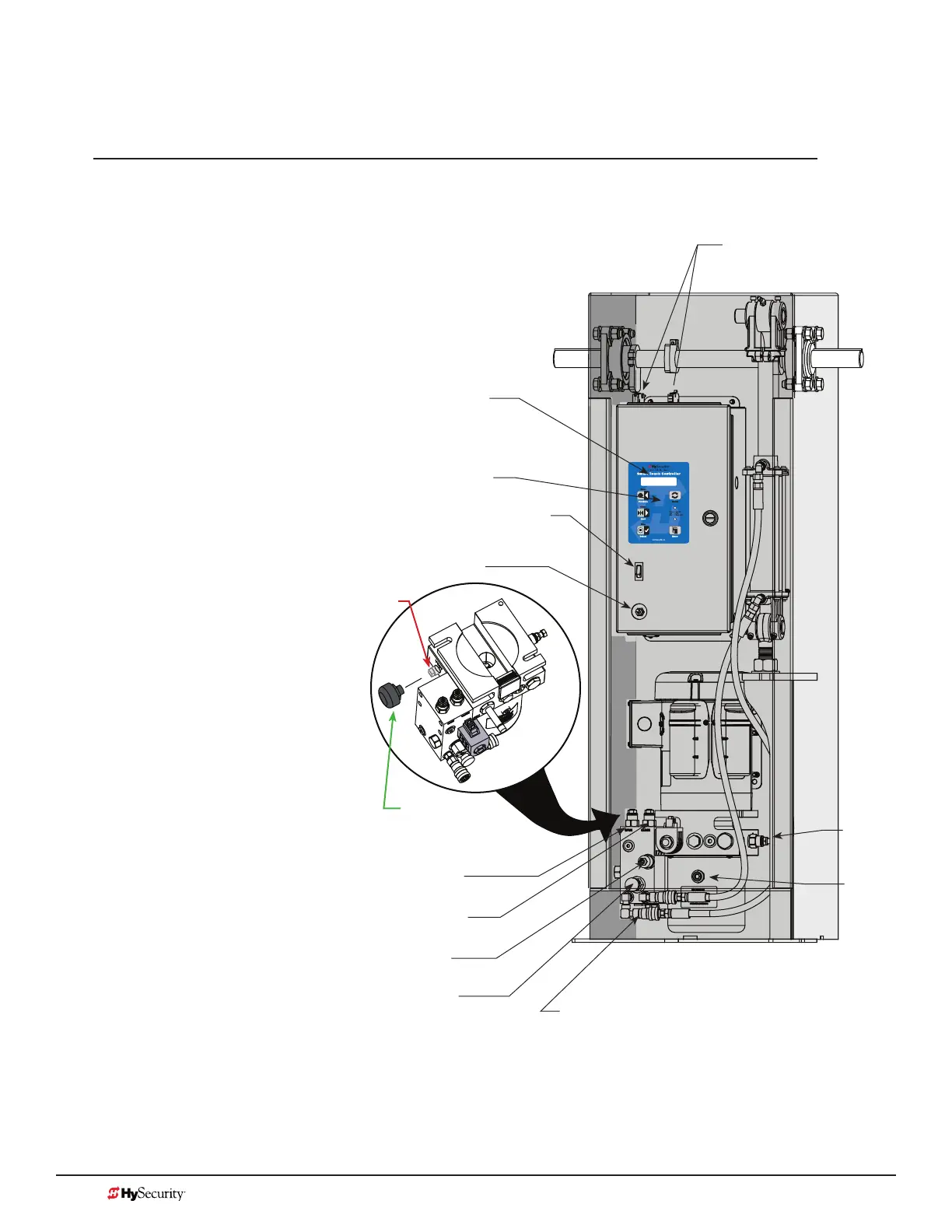

StrongArm Interior View
Limit switches
