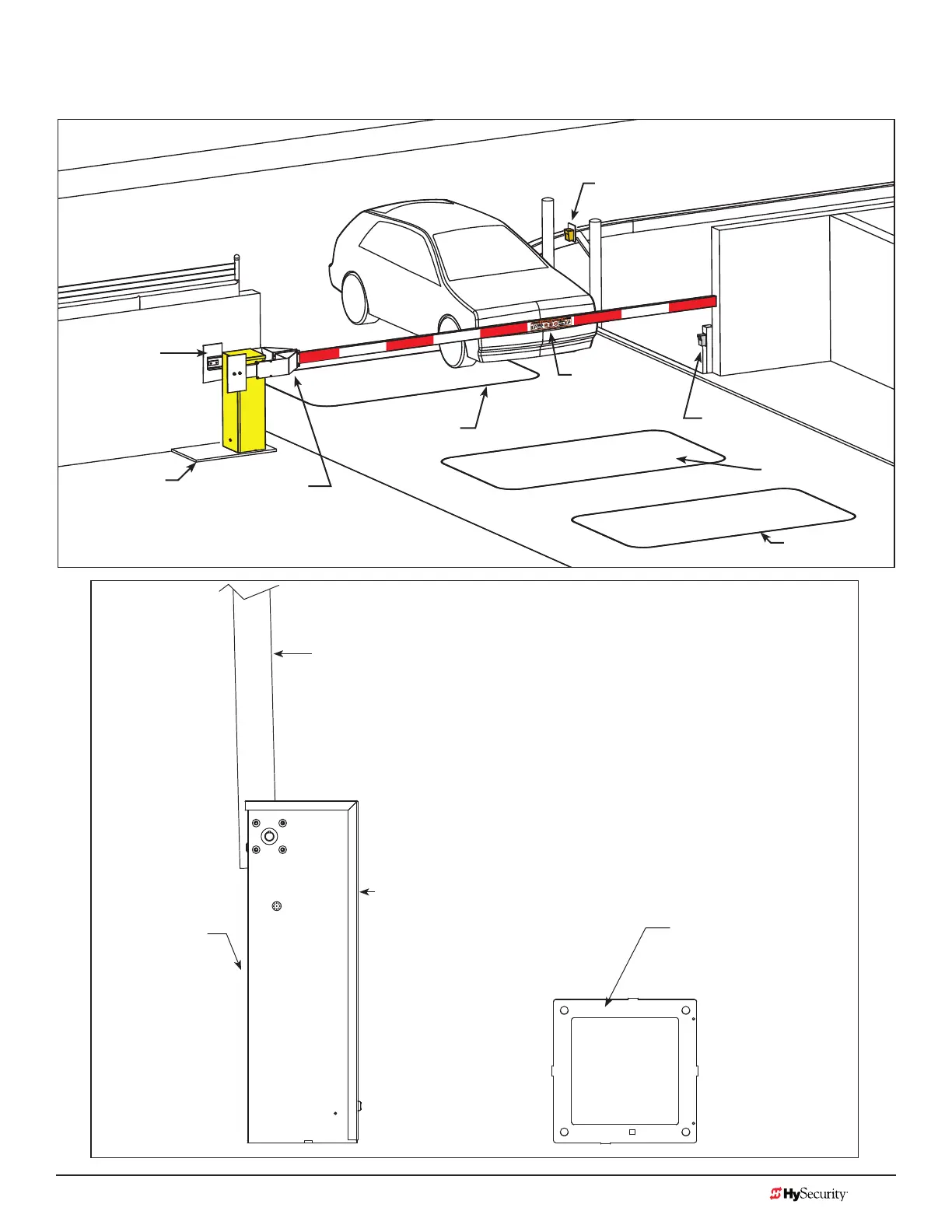

StrongArm Site Installation Overview

86-

-02,

Photo eye

Warning signs

Access

control device

Reset Loop

Outside

Obstruction Loop

Inside Obstruction

Loop

Counter weights

required for arms

over 18 ft (5.5 m)

Heavy duty

yoke mount

for arms longer

than 16 ft (4.9 m)

Concrete pad

Base plate: Create a template

to mount four anchor bolts

on the concrete pad.

Barrier Arm

StrongArm chassis

StrongArm

Front panel

hysecurity.com | 800-321-9947 7

C Ontents3
- Table of Contents3
S Trong a Rm I Nstallation O Verview7
Strongarm Components8
Strongarm Pump Pack Components9
Important Safety Instructions11
- Important Safety Information12
- Proper Grounding and Breather Cap Installation21
- Manual Release: Manual Bypass Valve22
Installation23
- Installation Preparation Checklist23
Power29
- Installing the Earth Ground29
  - Site Considerations30
- Wiring AC Power30
  - Turning the Power Switch on31
- Wire Sizing and Runs32
  - Low Voltage Control Wiring32
  - Strongarm Wiring Charts (Incoming Power)33
- Control Transformer Connections (Non-UPS)35
- Gate Operator Connections (Modular Unit)35
- DC Power Supply (UPS) Connections36
- AC Power Supply with Hyinverter AC36
Initial Setup37
- Replace the Red Vent Plug with the Breather Cap38
- Learn When and What to Adjust38
- Leveling and Balancing Arm39
- Strongarm Counterweights Installation40
- Strongarmdot 28 Break-Away Arm Installation42
- Valve Adjustments44
  - Adjust Pressure Relief Valve44
  - Adjusting Brake Valve44
- Limit Switch Adjustments45
- Emergency Override46
  - Manual Bypass Valve46
  - Cycle Test the Arm46
- Emergency Fast Close47
- Installing a Push Button Device for Emergency Fast Operate (EFO)47
Entrapment Protection49
- Table 4: Hysecurity Gate Operators Maintaining Object Detection50
- Supply Power to the Sensors51
- External Entrapment Protection52
- Photo Eye Function53
Control Panel Overview55
- Strongarm Wiring Diagram56
- Limit Switches56
- STC Board, Power Supply Board and Display57
Display & Menu Options59
- Initial Setup59
- Understanding the Display and Keypad59
- Menu Mode and the STC Keypad60
- Menu Mode Navigation60
- Run Mode and the STC Keypad61
- Viewing Gate Operator Scrolling Status61
- User Menu63
- User Menu: Table 564
- Installer Menu66
- Installer Menu: Table 666
- Setting the Close Timer73
- Test the Operator74
STC Inputs & Wiring75
- Overview of the STC and Power Supply Board76
- Integrating with Security Systems and Hynet™ Gateway77
- Smart Touch Controller Inputs78
- STC Terminal Inputs78
- Connecting Accessory Devices79
- User Relays - Programming Procedure81
- Programmable User Relays: Table 781
- Hy8Relay Module Option84
Bi-Parting & Dual Gate Systems85
- Connecting an Interlocked Pair (Dual Gate)85
- Connecting Sequenced Gates88
- Sequenced Gate: Configuration #190
- Sequenced Gate: Configuration #291
Ehicle D Etector I Nstallation93
- Anti-Tailgate Mode (Closing Logic)93
- Tailgate Alert93
- Vehicle Detector Installation: Hy5A and Hy5B94
- Connecting Hy5A Vehicle Detectors95
  - View Call Level in Real Time96
- Installing Standard 11-Pin Box Type Vehicle Detectors97
- Strongarm HTG Loop Layout98
Photo Eye Installation99
- Photo Eyes (Non-Contact) Installation100
- Retro-Reflective Photo Eye Systems102
  - Using Photo Eye Sensors Instead of Vehicle Loops103
  - Photo Eye Alignment Feature104
Troubleshooting105
- System Diagnostic Messages105
- Typical Problems and Troubleshooting Procedures106
- Troubleshooting Codes: Table 8107
- Access the Event Log through the User Menu112
- Electrical Issues113
  - AC-Powered Gate Operators113
- Mechanical Issues114
- Hydraulic Issues114
General Maintenance115
- Smart Touch Analyze and Retrieve Tool (S.T.A.R.T.)115
  - What You Need115
  - Installing S.T.A.R.T. Software115
- Software Maintenance116
- Electrical Controls116
  - Clock Battery Replacement116
- Mechnical Controls117
  - Stopping the Gate117
  - Starting the Gate117
- Mechanical Maintenance117
- Hydraulic System Maintenance118
- Strongarm Operator Maintenance Schedule120
Iring H y S Ecurity S Ensors : S Mart T Ouch121
- Wiring Tips for SENSOR COM Terminal: Smart Touch122
- Menu Mode Navigational Tips122
- Smart Touch: Wired Edge Sensor with GEM (-104)123
- Smart Touch: Photo Eye Thru Beam (EMX IRB MON)124
- Smart Touch: Photo Eye / Reflective (E3K R10K4)125
- Smart Touch: the Solution, MIM-62 (Multi-Input Module)126
- Smart Touch: Photo Eye / Reflecti-Guard (RG-R)127
- Smart Touch: Wireless Edge, Wireless Gate Link128
- Smart Touch: Wired Edge with GEM-104 & Photo Eye129
- Smart Touch: Wireless Edge Gate Link & Photo Eye130
- Strongarm Installer Checklist131
Arranty133
Specifications134
