MX3657-01 Rev. D ©2020 Initial Setup
hysecurity.com | 800-321-9947 37
Initial Setup
When you rst apply power to the operator, it is locked in Menu mode
and prompts appear on the display. The gate will not move and the controls
will not function until the prompts have been answered. The prompts
include:
• Usage Class setting
Before turning the power switch to ON, be sure to replace the vent cap with the
breather cap. Refer to page 2. Make sure all site requirements concerning proper
wiring, safety, foundation installation, and electrical power have been met.

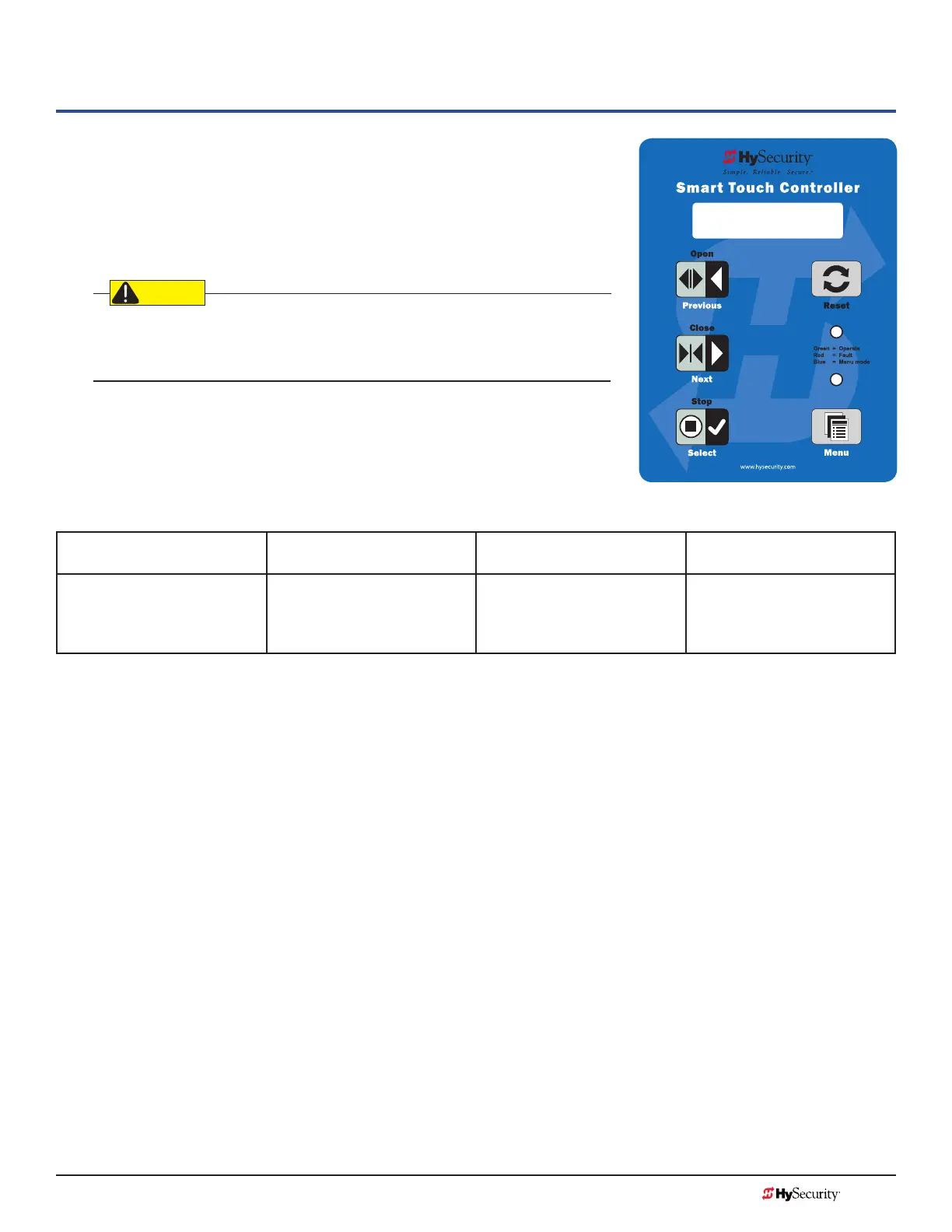

Five buttons on the display keypad provide operational controls. Refer to
Display & Menu Options on page 59 for more information. To answer the
initial prompts, use the Previous, Next, and Select buttons as described in
the chart below:
Smart Touch Controller: Menu Mode Navigation Buttons
To change that data
appearing in the display
To navigate through the
Selections
To choose what appears on
the display
To navigate between
menu items
Press Select.
Two left characters blink.
Press Next.
Continue pressing Next to view
all selections. (Press Previous to
reverse direction.)
Press Select.
Blinking characters
become static.
Press Next or Previous.
Advance - press Next
Previous - press Previous
If you are unsure of the usage classication, refer to Identifying Gate Operator Category and Usage Class on
page 5. It explains the different usage site classications for UL 325.
UC 2
USAGE CLASS
