**Interlocked Gate type Operator 1 (Primary) Operator 2 (Secondary)
Primary / Secondary
1. Press Next until DG 2 appears on the display.
2. Press Select to establish the operator as
Primary.
1. Press Next until DG 1 appears on the display.
2. Press Select to establish the operator as
Secondary.

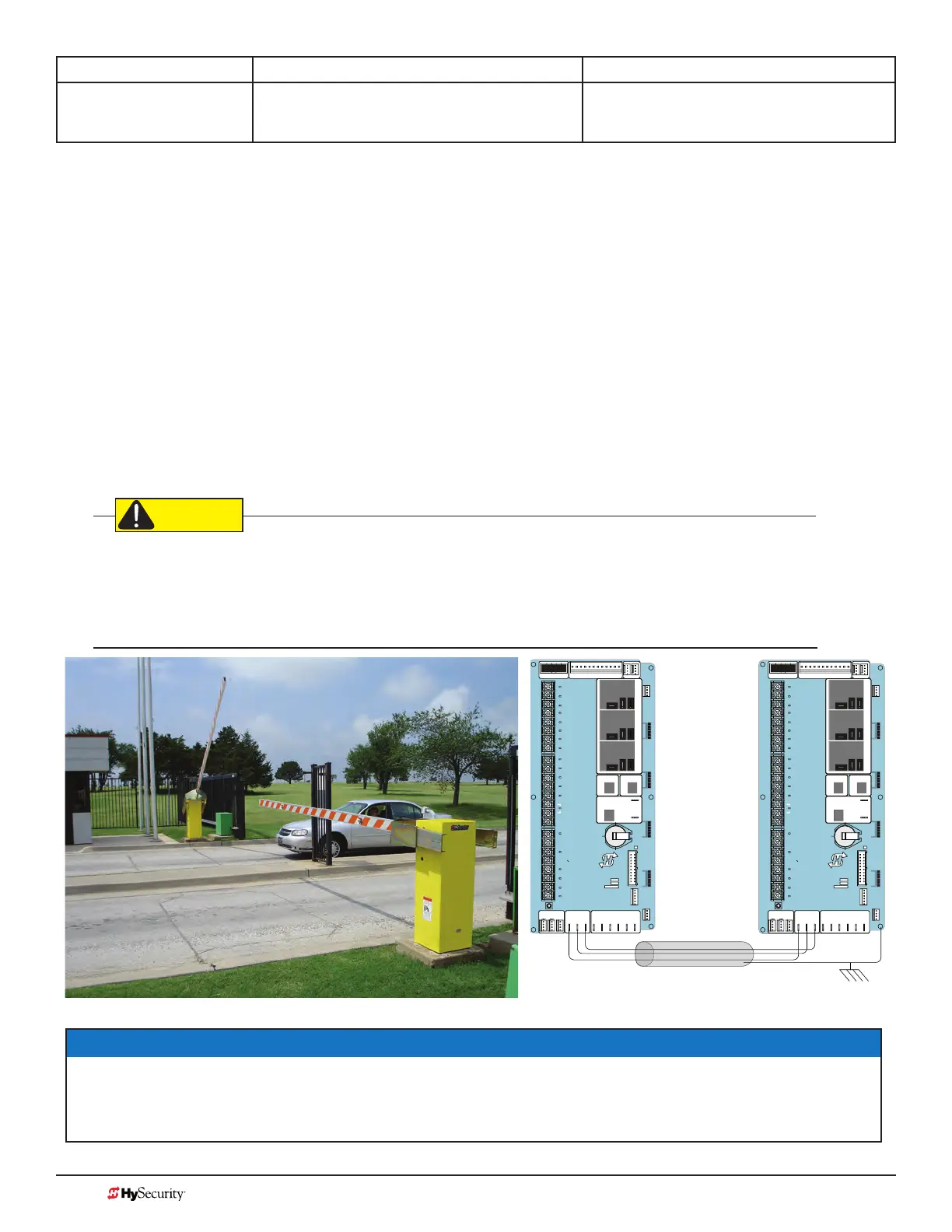

ConneCtinG sequenCed Gates
Sequenced gates are slightly different than dual or interlocked gates. When two gate operators are connected
as sequenced gates, a faster “Trafc Control Gate” operator (i.e. barrier arm or crash wedge) and a slower
“Security Gate” operator (slide, swing, or vertical lift gate) operate in sequence to help prevent tailgating or
unauthorized entry. Both operators open (Security Gate rst followed by the Trafc Control Gate) and allow
a vehicle through, but the faster moving Trafc Control Gate closes quickly once its reset/center loop and all
obstruction loops are cleared. Upon reaching its closed limit, the Trafc Control Gate signals the Security Gate
to close. Note that all shared vehicle detector loops must be cleared before the Security Gate closes.
NOTE: An emergency open or close overrides the gate sequencing and acts upon both gates simultaneously.
The Smart Touch Controller (STC) provides the sequenced gate connections and programming features, and
the STC software establishes the communication protocols when wiring the sequenced gate operators. To
learn how to connect the wiring between operators, review the Wire Diagram below.
The operators do not have to be of the same type, but both need to have identical software versions installed on
the Smart Touch Controller. For example, a StrongArmCrash M30 can be sequenced with a StrongArm to provide
both personnel security and crash provisions. The inherent STC software integrates seamlessly between operators
and software protocols and allows RS-485 communication for networked security systems. Refer to Integrating
with Security Systems and HyNet™ Gateway on page 77 for additional information.
NOTICE
Use a 2-pair, twisted, shielded cable with one pair of wires used to connect A-A and B-B terminals
between the two boards. The other pair will connect the Common terminals. The shield should
then be grounded on one end to one of the operators.
STOP BUTTON
OPEN BUTTON
CLOSE BUTTON
REMOTE OPEN AND
RADIO CONTROL
OPEN/CLOSE
1
OPEN PARTIAL
INTERLOCK OPEN
TIME CLOCK OPEN
FREE EXIT DETECTOR
DISABLE EXIT DETECTOR
DISABLE CLOSE TIMER
INSIDE OBSTRUCTION
VEHICLE DETECTOR
OUTSIDE OBSTRUCTION
VEHICLE DETECTOR
SHADOW/RESET
VEHICLE DETECTOR
SENSOR 1
SENSOR
COM
DO NOT USE
SENSOR 2
DO NOT USE
SENSOR 3
DO NOT USE
CHARGER
AC LOSS
LOCK INTERLOCK
EMERG CLOSE
FIRE DEPT OPEN
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
Smart Touch Controller
LIMIT DUAL GATE
RADIO OPTIONS
DRIVE
POWER
RS485
MOTORUSER 1
USER 2
USER 3
VEHICLE DETECTORVEHICLE DETECTORVEHICLE DETECTOR
STOP/BUZZER
FREE
EXIT
INSIDE
OBSTR
OUTSIDE
OBSTR
SHADOW
RESET
WIEGAND
HySecurity
COM
NO
MX000585
VERSION
S/N
RS232
DISPLAY
VEHICLE DETECTOR
COMCOMAB
RPM
COMOPEN S1+24V +24V
STATUS
LED
STOP BUTTON
OPEN BUTTON
CLOSE BUTTON
REMOTE OPEN AND
RADIO CONTROL
OPEN/CLOSE
1
OPEN PARTIAL
INTERLOCK OPEN
TIME CLOCK OPEN
FREE EXIT DETECTOR
DISABLE EXIT DETECTOR
DISABLE CLOSE TIMER
INSIDE OBSTRUCTION
VEHICLE DETECTOR
OUTSIDE OBSTRUCTION
VEHICLE DETECTOR
SHADOW/RESET
VEHICLE DETECTOR
DO NOT USE
DO NOT USE
DO NOT USE
CHARGER
AC LOSS
LOCK INTERLOCK
EMERG CLOSE
FIRE DEPT OPEN
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
Smart Touch Controller
LIMIT DUAL GATE
RADIO OPTIONS
DRIVE
POWER
RS485
MOTORUSER 1
USER 2
USER 3
VEHICLE DETECTORVEHICLE DETECTORVEHICLE DETECTOR
STOP/BUZZER
FREE
EXIT
INSIDE
OBSTR
OUTSIDE
OBSTR
SHADOW
RESET
WIEGAND
HySecurity
COM
NO
MX000585
VERSION
S/N
RS232
DISPLAY
VEHICLE DETECTOR
COMCOMAB
RPM
COMOPEN S1+24V +24V
STATUS
LED
SENSOR 1
SENSOR
COM
SENSOR 2
SENSOR 3
Wire Diagram: Sequenced Pair of
Operators wired to DUAL GATE Inputs
