MX3657-01 Rev. D ©2020 Initial Setup

hysecurity.com | 800-321-9947 41

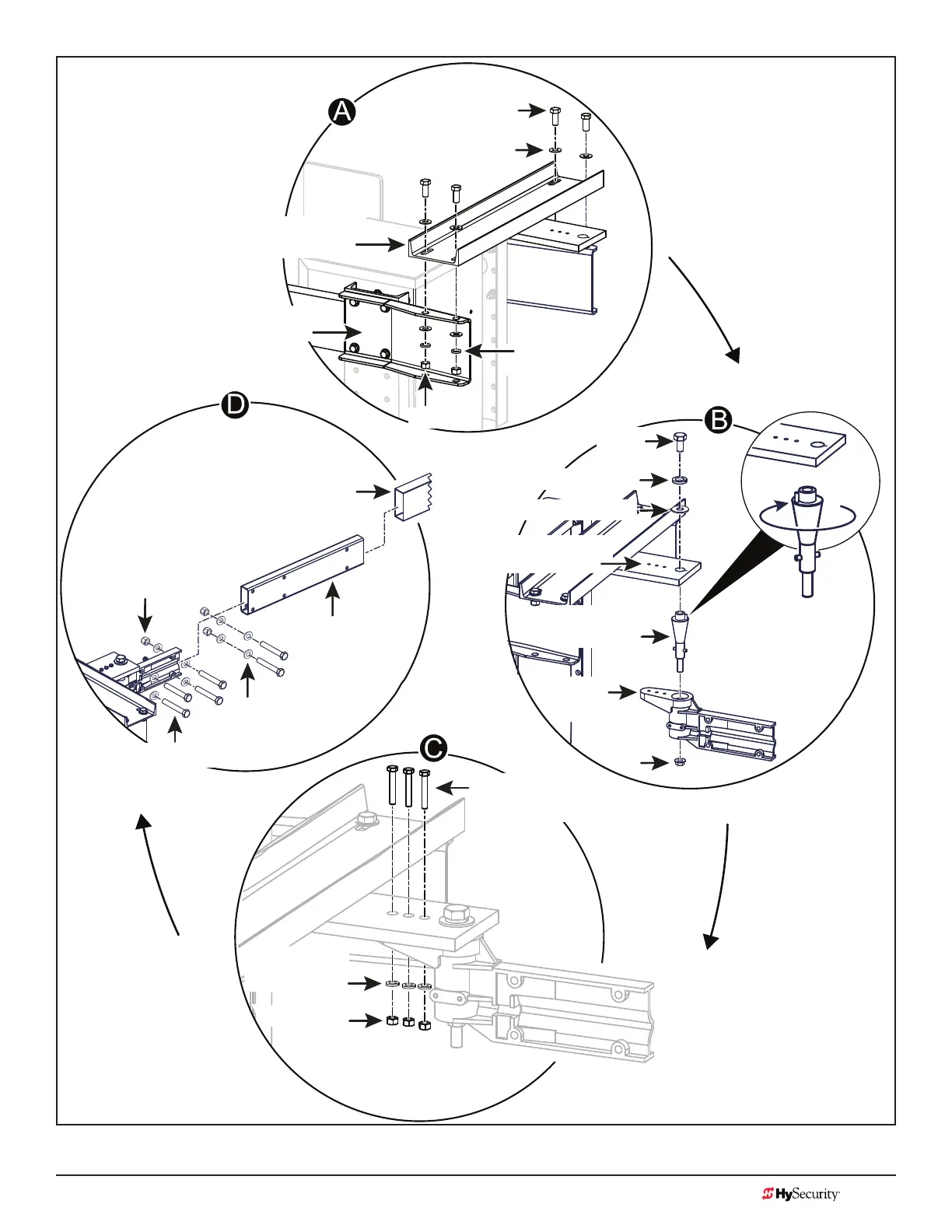

StrongArm CounterWeight Installation

CONVERSION

BRACKET

GATE SAVER

YOKE

BOLT

FLAT WASHER

LOCK

WASHER

NUT

CAST

ADAPTER

SERVICE

NUT

BREAKAWAY

KING PIN

SHEAR BRASS

BOLT LOCATIONS

BOLT

LOCK WASHER

FLAT WASHER

BRASS SHEAR

BOLTS

LOCK

WASHERS

HEX NUT

BOLT

NYLON

LOCKNUT

FLAT

WASHER

BARRIER ARM

SLEEVE ARM
