17
Tapped hole
Reamed hole

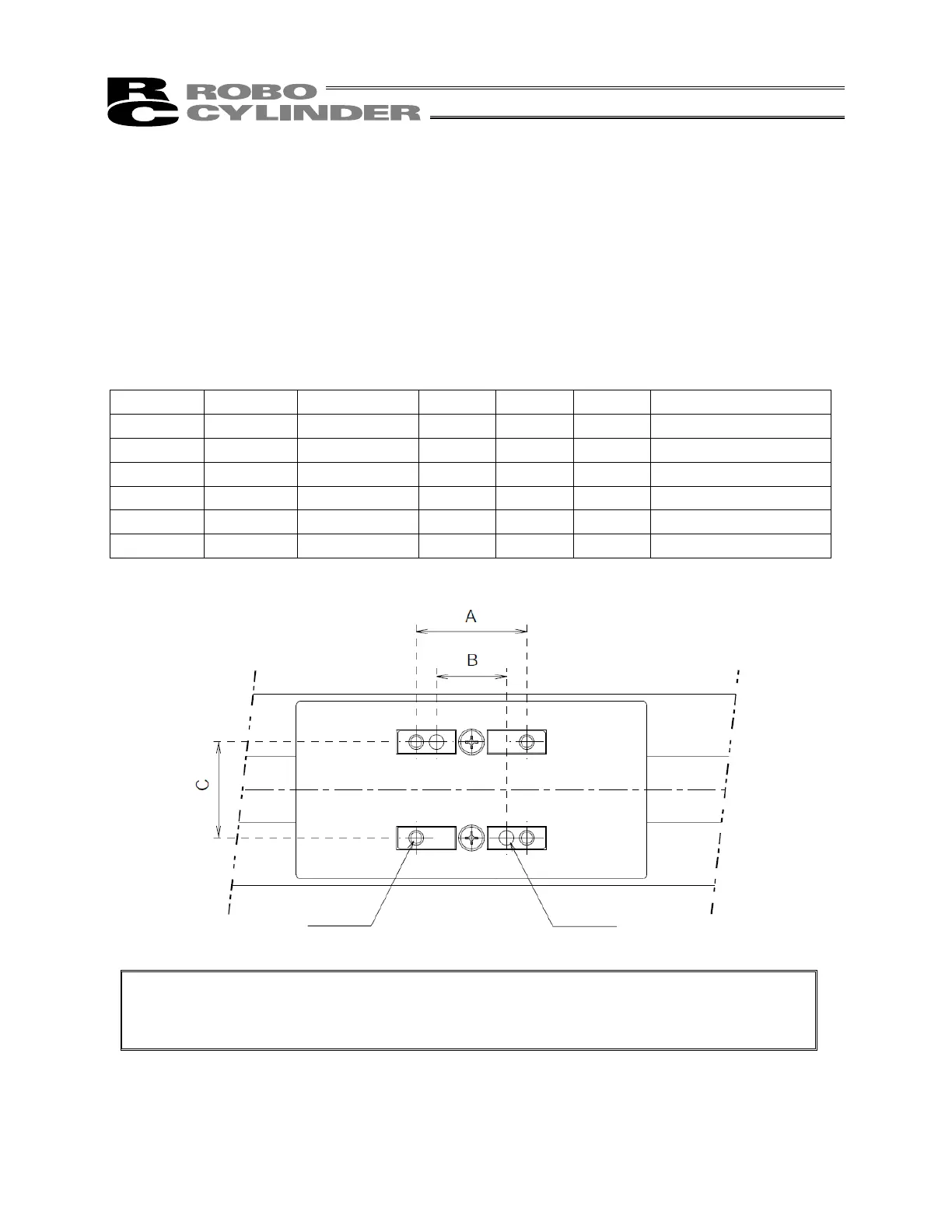

7.4 Installing the load to the Slider
7.4.1 Using the Slider
Tapped holes are provided on the slider for installing the load. The method of clamping varies
according to how to mount the main body.
In case of moving actuator instead of slider, use the same tapped holes on the slider.
Please use two reamed holes on the slider when repeatability of mounting and dismounting is required.
When fine adjustment of the squareness is necessary, use only one reamed hole to allow adjustment.
Sizes and depths of tapped holes and reamed holes on slider
Model Tap size Depth of thread A B C Reamed hole
SA4 M3 7 mm 24 mm 16 mm 20 mm
3 H7, depth 5 mm
SA5 M4 9 mm 30 mm 19 mm 26 mm
4 H7, depth 6 mm
SA6 M5 9 mm 50 mm 32 mm 31 mm
5 H7, depth 6 mm
SA7 M5 10 mm 50 mm 32 mm 39 mm
5 H7, depth 10 mm
SS7 M5 10 mm 50 mm 32 mm 32 mm
5 H7, depth 10 mm
SS8 M8 10 mm 75 mm 45 mm 45 mm
8 H7, depth 10 mm
Caution: When installing the load, do not let adhesives, paints or other viscous substances
attach the stainless sheet. Also, avoid applying a concentrated force that will dent
the sheet. It may cause the slider to malfunction or damage the sheet.
