102
Appendix

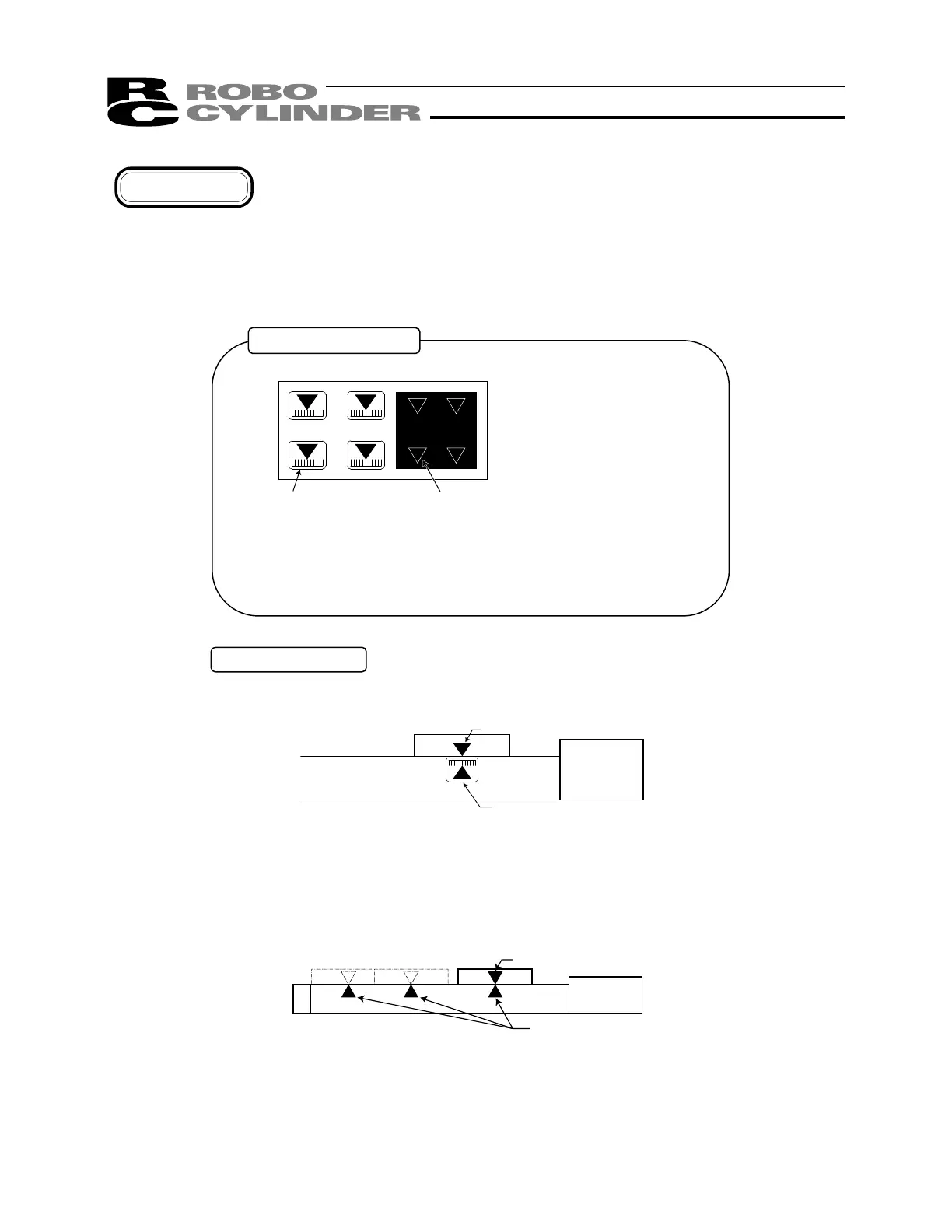

How to use the home mark
Please affix these marks to the actuator as home markers as needed.
Home mark sticker
Home mark scale x 4 Home mark x 4
(Scale: 1 mm graduation mark, 10 mm width)
Peel off the marks from the base sheet.
Note 1. Every mark has sticky back.
2. Remove smear and stain from the surface.
3. Avoid label or nameplate as a marking location.
[1] Used as home position
Place the marks when the actuator is stopped at home position.
[2] Used as stop positions
Example of Use
Contents of sticker
On the slider
On the base
Motor
Motor
On the slider
At stop positions on the base
x 1 sheet
