39
Motor cover
Tension load
Tension adjustment bolts (2 pcs)
SS7R: Use an Allen wrench of 3 mm across flats.
Tightening torque 377 N-cm (38 kgf-cm)
SS8R: Use an Allen wrench of 4 mm across flats.
Tightening torque 763 N-cm (78 kgf-cm)
Tension adjustment bolts (2 pcs)
Use an Allen wrench of 3 mm across flats.
Tightening torque 377 N-cm (38 kgf-cm)
Tension: 8 kgf 0.3 kgf
Tension adjustment bolts M4x20 (4 pcs)
Use an Allen wrench of 3 mm across flats.
Tightening torque 377 N-cm (38 kgf-cm)

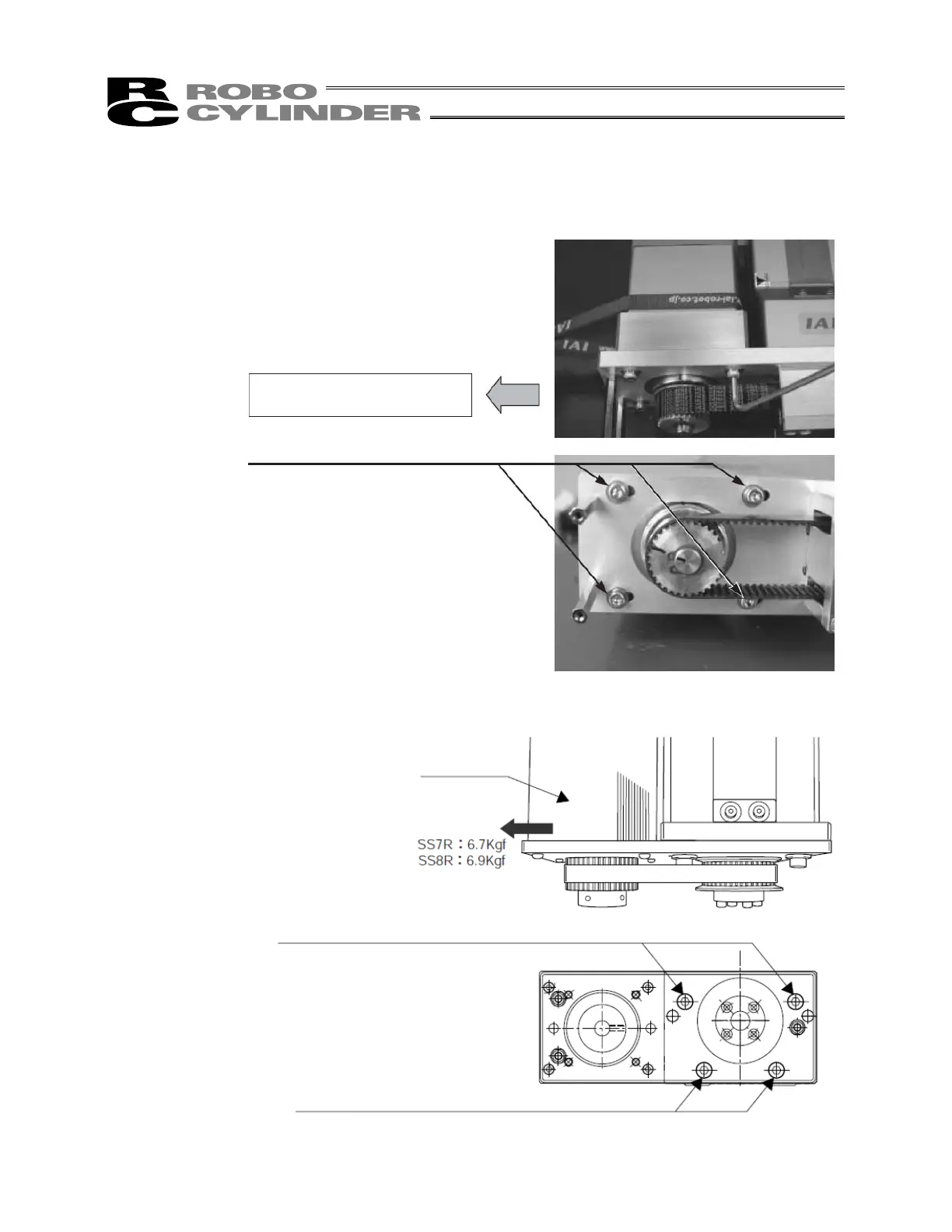

15.8.4 Adjusting the Belt Tension (SA7R)
Remove the pulley cover, loosen the four tension adjustment bolts, tension the belt by moving the motor to
the left, and tighten the tension adjustment bolts.
[Recommended tightening torque for adjustment bolts]
(M4) 377N cm (38 kgf-cm)
15.8.5 Adjusting the Belt Tension (SS7R, SS8R)
Remove the pulley cover, loosen the four tension adjustment bolts, tension the belt by moving the motor to
the left, and tighten the tension adjustment bolts.
