34
Sheet slider
Plate spring
Coil spring
Coil spring
Coil spring
Sheet slider
Coil spring
Spacer
Spacer
Sheet slider
Roller
Roller
[Procedure]

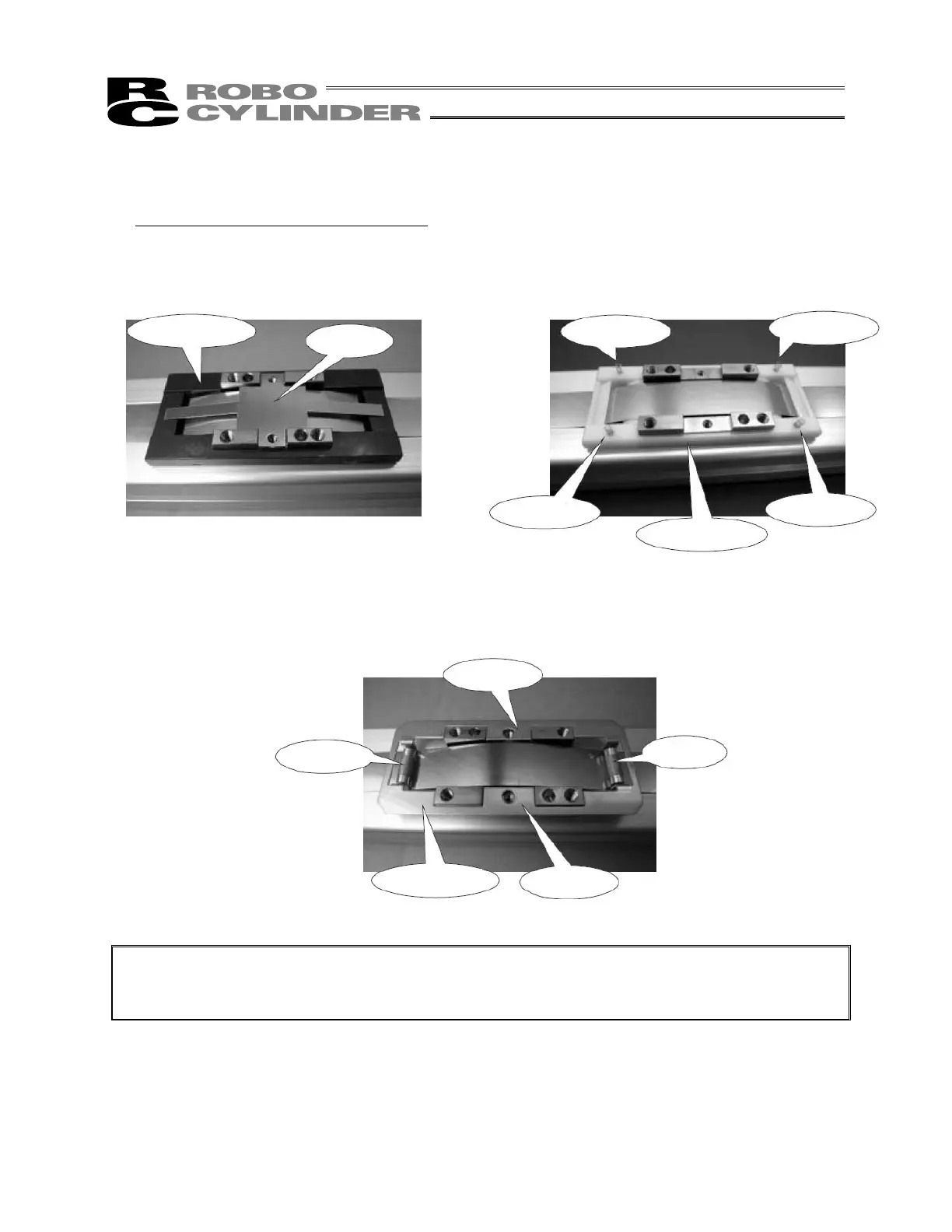

1) Remove the slider-cover affixing screws and remove the covers.
After the slider covers have been removed
[1] Standard specification (slider structure)
RCS2-SA4/SA5 RCS2-SA6/SA7/SS7/SS8
[2] Cleanroom specification (roller structure)
RCS2CR-SA4/SA5/SA6/SA7/SS7/SS8
Caution: Remove the slider covers slowly and gently. If the actuator is installed on the ceiling or
oriented vertically or horizontally on side, place a plastic bag, etc., underneath the slider
covers so as not to lose the coil springs and spacers in case they drop off.
