v One compute module. Must be inserted in slot B (RHS).
v One compute module blank.
v Up to 84 Disk Drive In Carrier (DDIC) modules with SATA drives installed.
v A rail kit for rack mounting.
Important: To ensure correct airflow and cooling, all PSU bays and cooling module bays must contain a
functioning unit.
Components
The chassis consists of a sheet metal enclosure assembly with an integrated midplane PCB, module
runner system, and two drawers for drive modules.

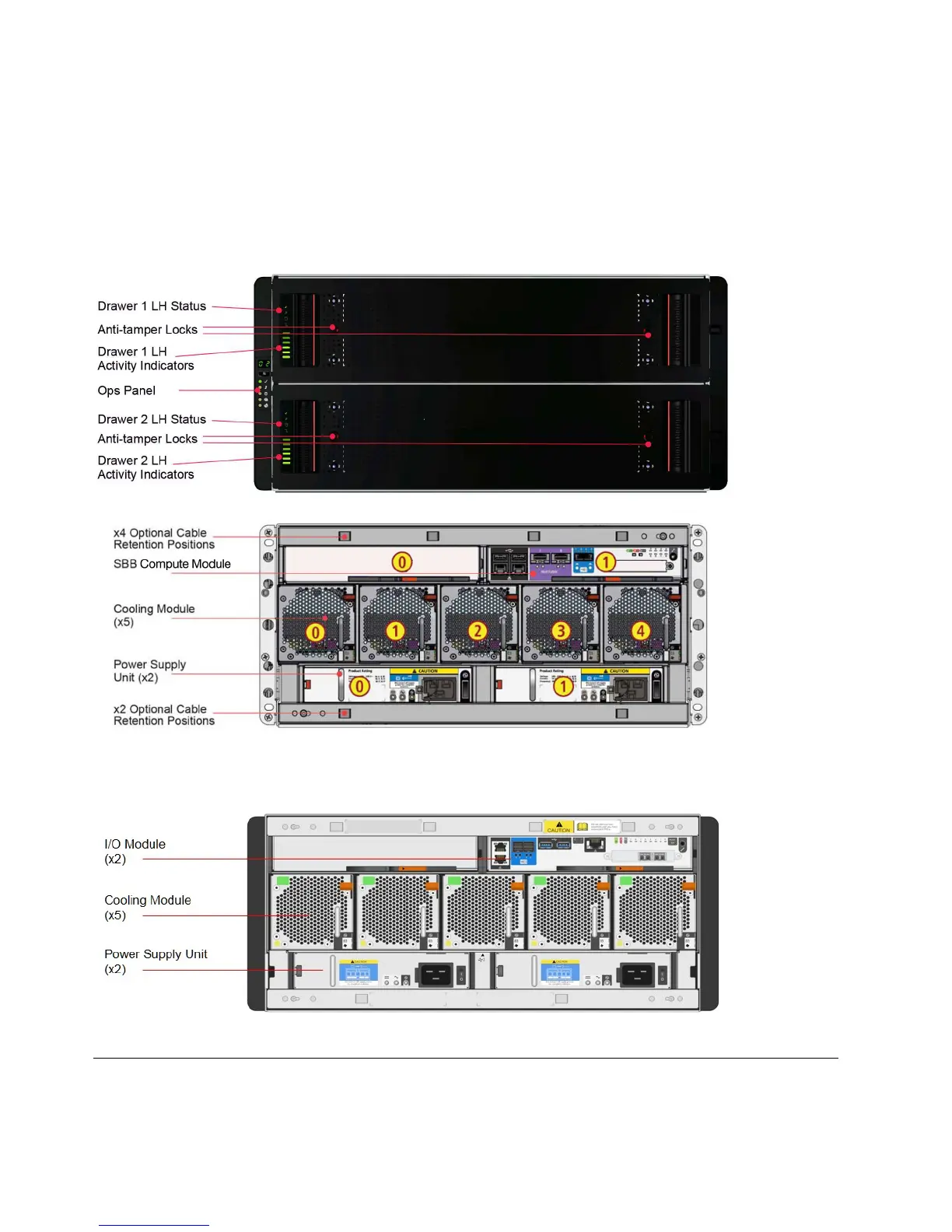

Figure 8. AP-TL-1 module locations
Figure 9. AP-LS-1 module locations
10 Slicestor
®
2584 Appliance Manual
