Closing a drawer
1. Press and hold both of the black latches on the sides of the drawer (see the following figure).
2. Push the drawer in slightly.
3. Release the black latches.
4. Push the drawer all the way back into the enclosure, making sure it clicks home.
Replace a disk drive in carrier (DDIC)
Two steps are needed; removing the existing drive, and replacing it with a new one.
Removing a DDIC
1. Identify which drawer contains the drive to be replaced. If the drive number is known, you can use
the plan in the following figure. If the drive failed, the drive fault LED is lit amber on the relevant
drawer.

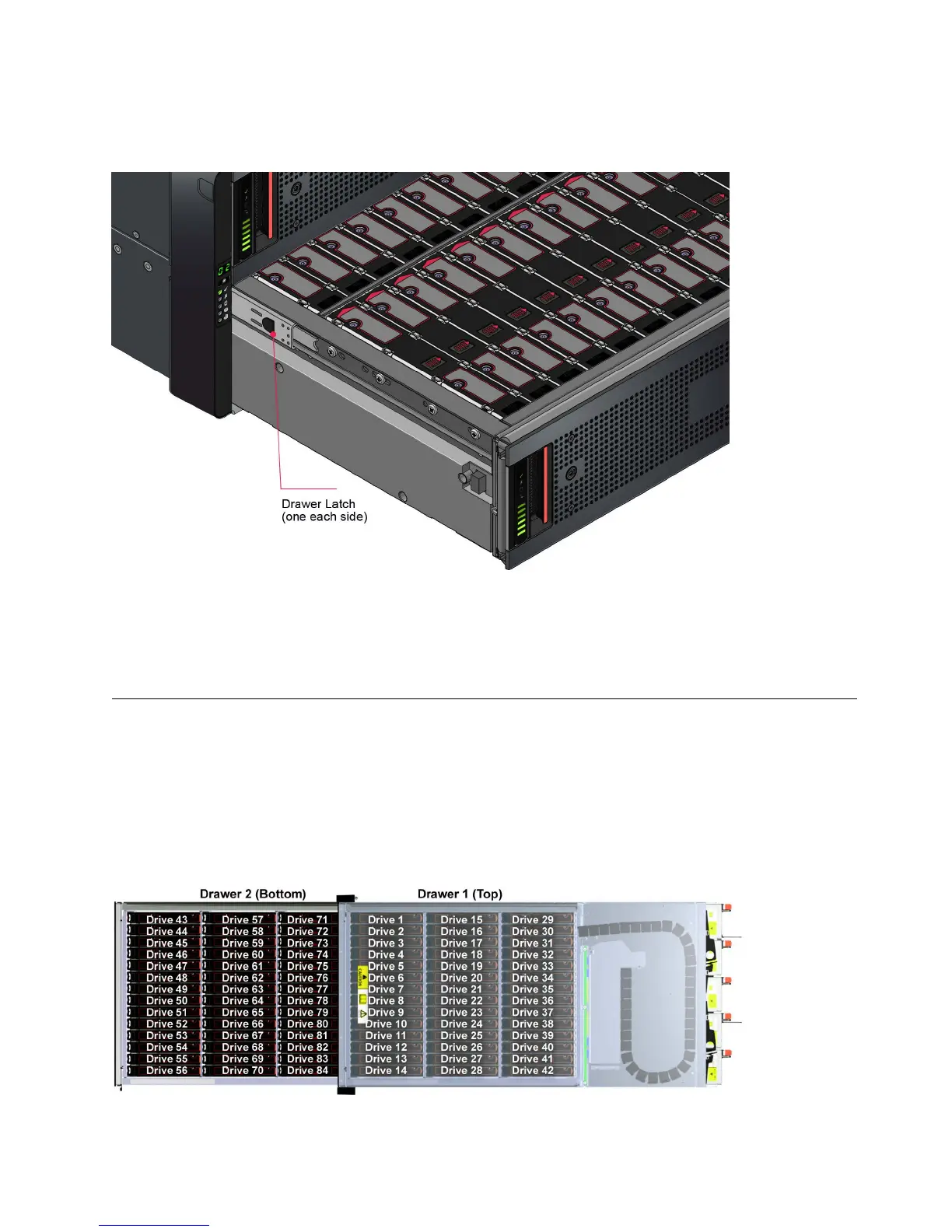

Figure 35. Drawer latch
Figure 36. Drive location plan
Chapter 6. Module replacement 43
