Table 2. Cooling module LED states
Module OK (green) Fan fault (amber) Status
X Off Fan OK
X On Communication lost with fan module controller
X On Reported fan speed is out of tolerance
On X Module good (battery and fan)
X = disregard
Compute modules
The platform has various compute module options. Refer to the specific compute module documentation
for details.
All compute modules are mechanically and electrically compliant to the SSB V2 specification.
The following figures show the AP-TL-1 and AP-LS-1 compute modules.

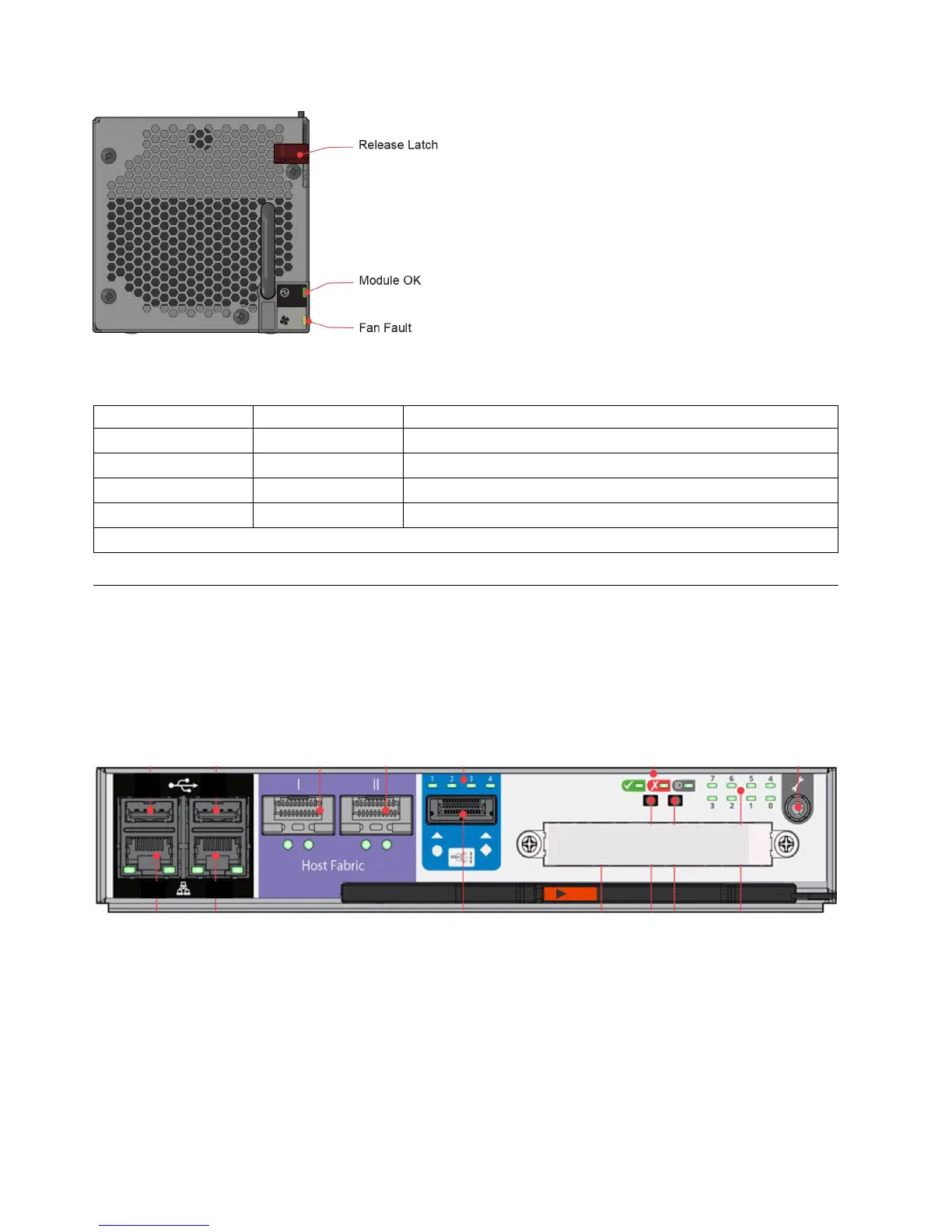

Figure 18. Cooling module LEDs
Figure 19. AP-TL-1 module
18 Slicestor
®
2584 Appliance Manual
