2. Make a note of the locations of the cables before you remove them from the compute module.
3.
Note: Various compute modules can be used in the enclosure.
As shown in the following two figures, pinch the latch on the module and pull the handle towards
you (1). This action levers the module out of its connector on the midplane.

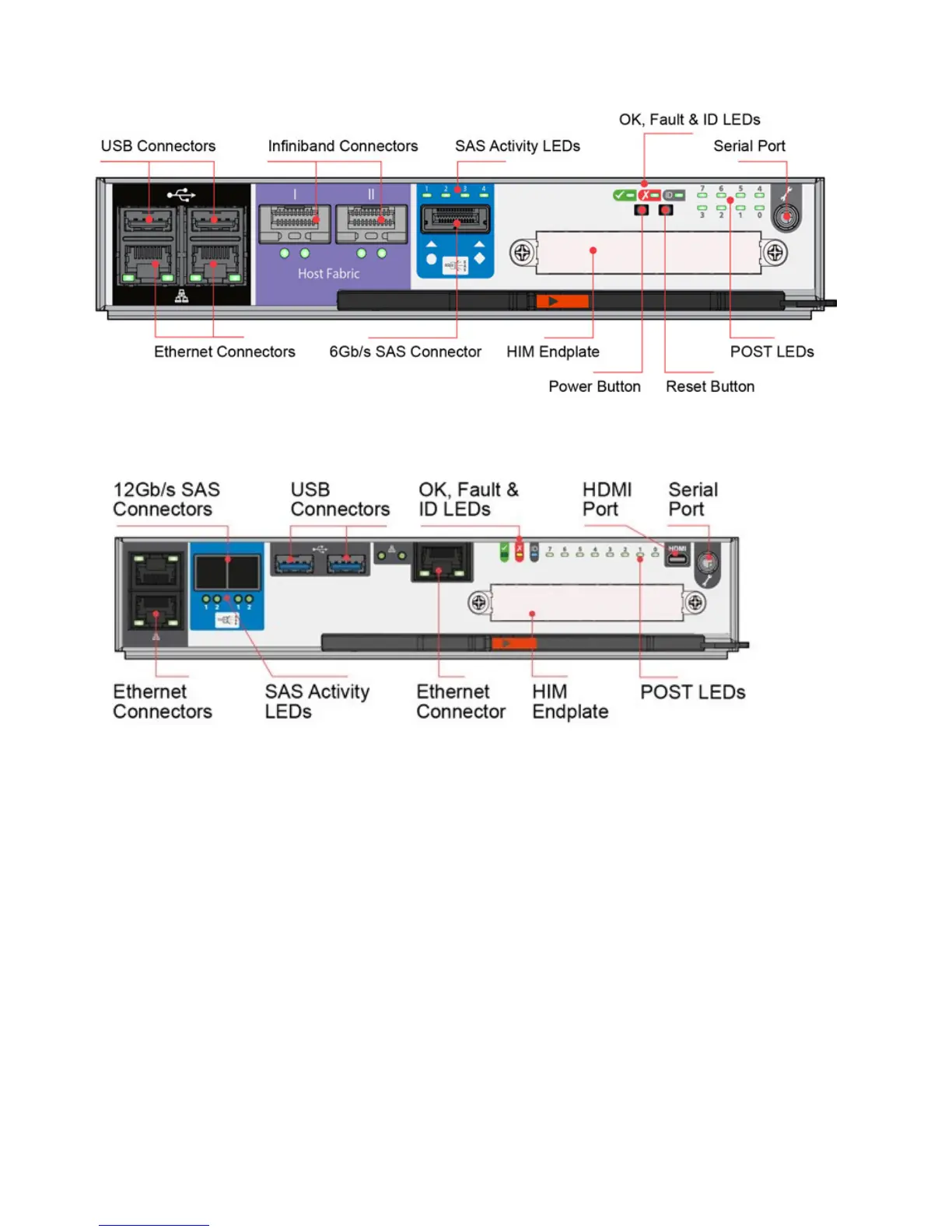

Figure 45. AP-TL-1 compute module LEDs
Figure 46. AP-LS-1 module
48 Slicestor
®
2584 Appliance Manual
