IBM 3409-S03

Compute Module LEDs
The LEDs on the compute module depend on the type of module in use. The following figure shows the
LEDs for a common I/O module, the 6 Gb/s SAS EBOD.

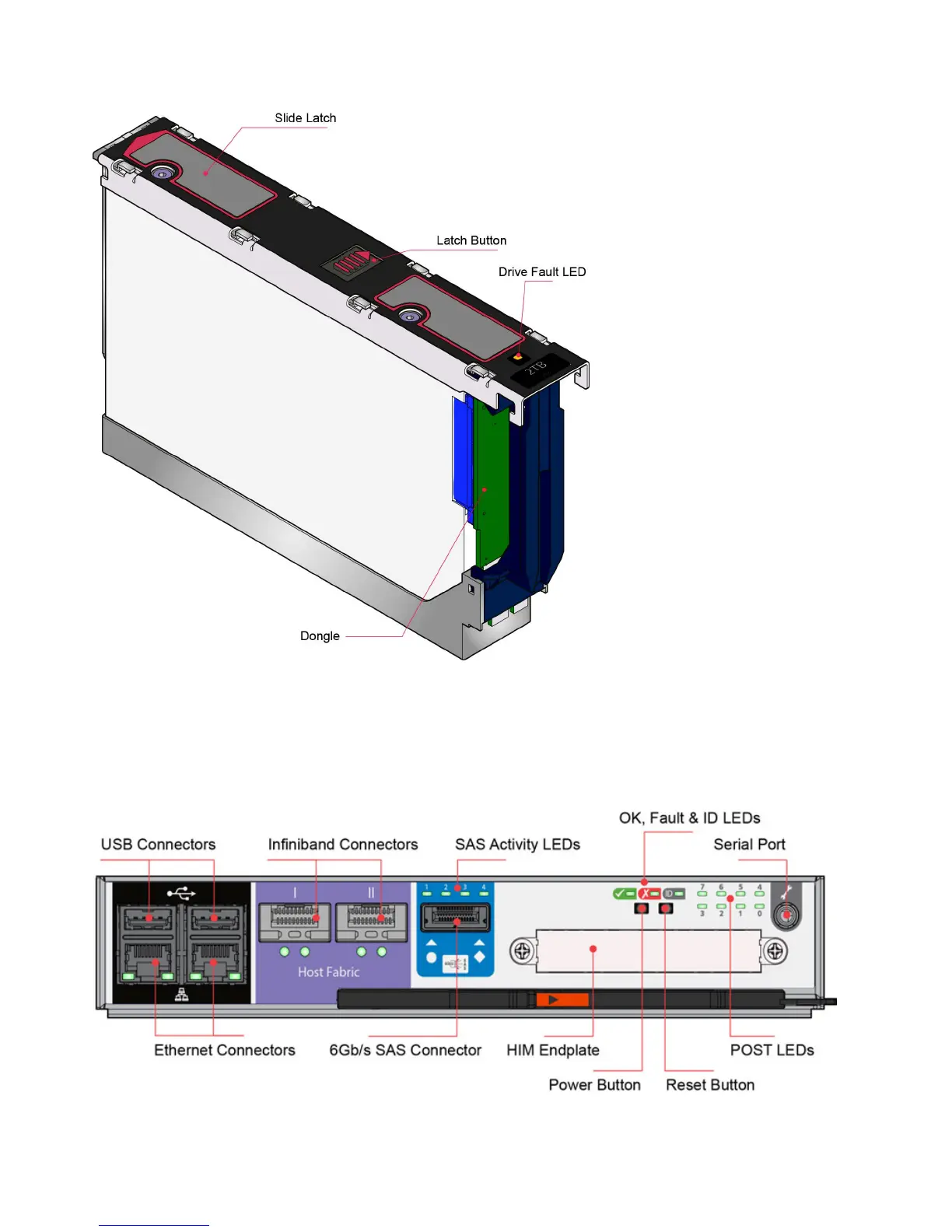

Figure 31. Drive Fault LED
Figure 32. Compute module LEDs
36 Slicestor
®
2584 Appliance Manual
