4. Pull the module out of the enclosure (2).
Inserting a compute module
1. Rotate the compute module so that the release latch is at the bottom.
2. Open the release latch and rotate it to its most open position, as shown in the previous figure.
3. Slide the compute module into its slot until it goes no farther and the handle starts to close.
4. Close the latch until it clicks home. It levers the module home into its connector on the midplane. The
enclosure automatically detects the new unit.
5. Connect the cables to the new module. If necessary, refer to the note you made before you removed
the cables from the defective compute module.

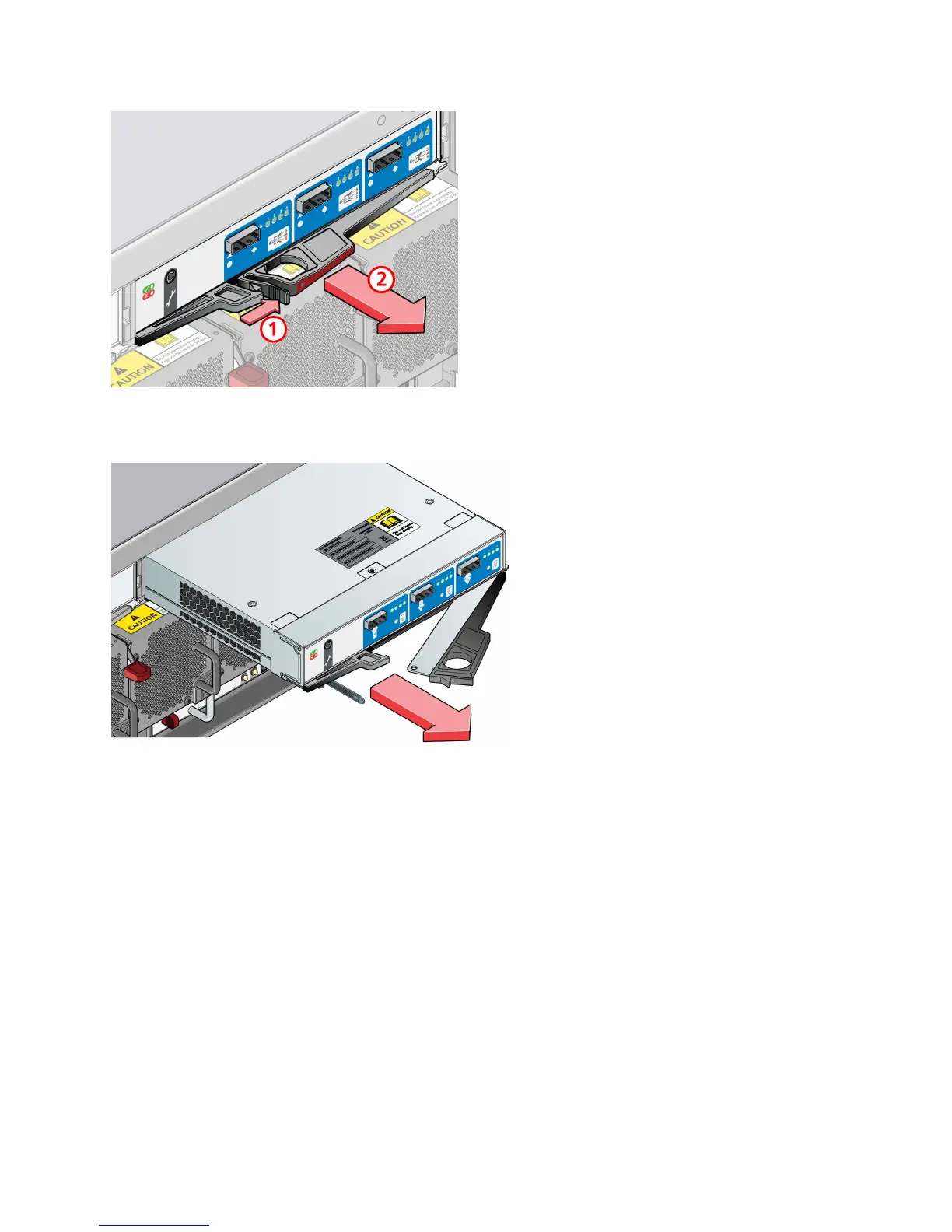

Figure 47. Removing a module (1).
Figure 48. Removing a module (2).
Chapter 6. Module replacement 49
