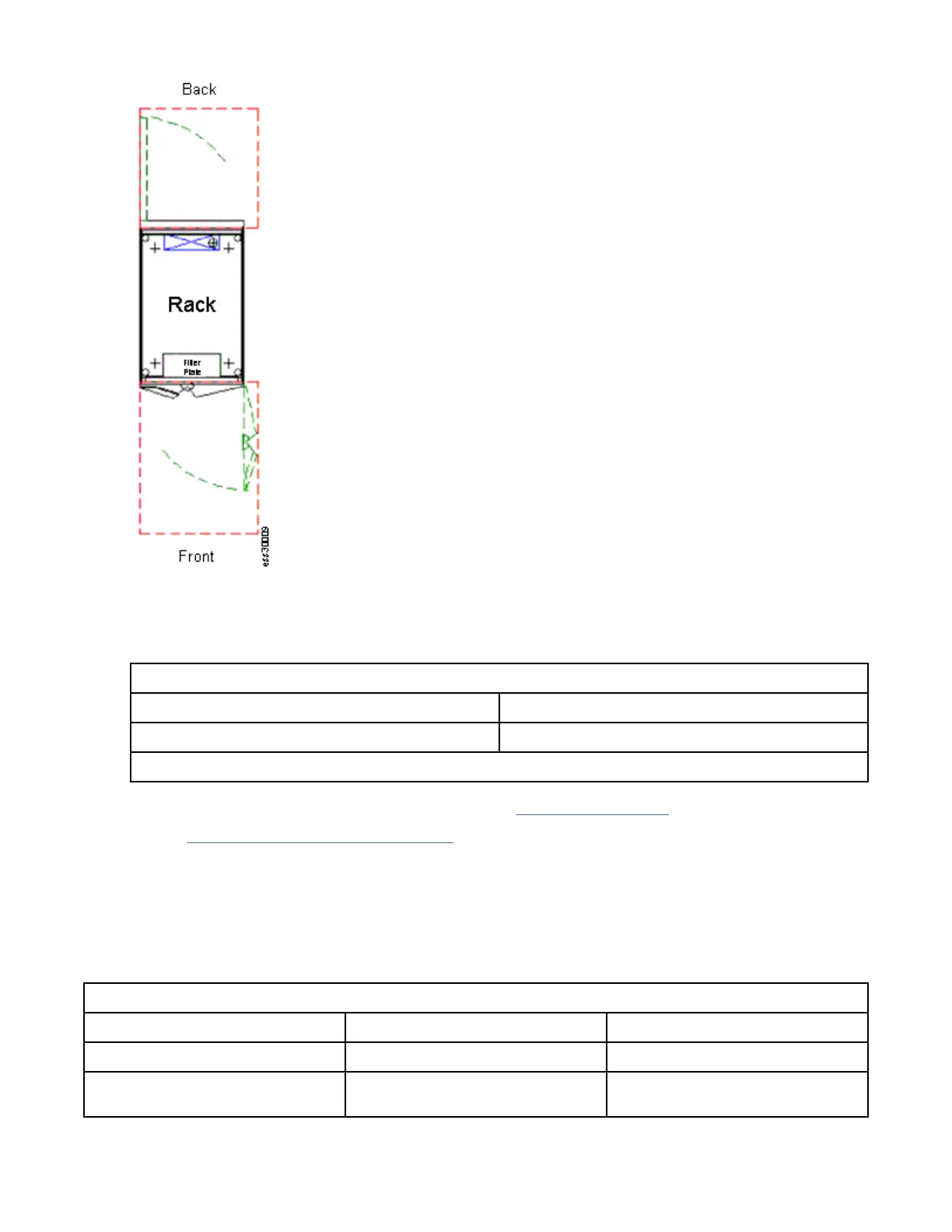

Figure 12. Sample illustration to show space around the rack
For IBM Storage Scale System 6000, use the recommended measurements that are given in the following
table.
Table 9. Service clearance requirements
Front
1
Back
915 mm (36 in.) 915 mm (36 in.)
1
Storage racks require larger service clearances in the front of the rack.
For more information about the layout of the room, see Computer room layout.
See the Site preparation and physical planning section to help you prepare your physical site for the
installation of IBM Storage Scale System 6000.
Additional space requirements
Ensure that these additional space requirements, as shown in the following table, are available around the
enclosures.
Table 10. Clearances
Location Additional space requirements Reason
Left and right sides 50 mm (2 in.) Cooling air flow
Back Minimum: 100 mm (4 in.) Cable exit
Chapter 3. Planning for IBM Storage Scale System 6000 hardware27
