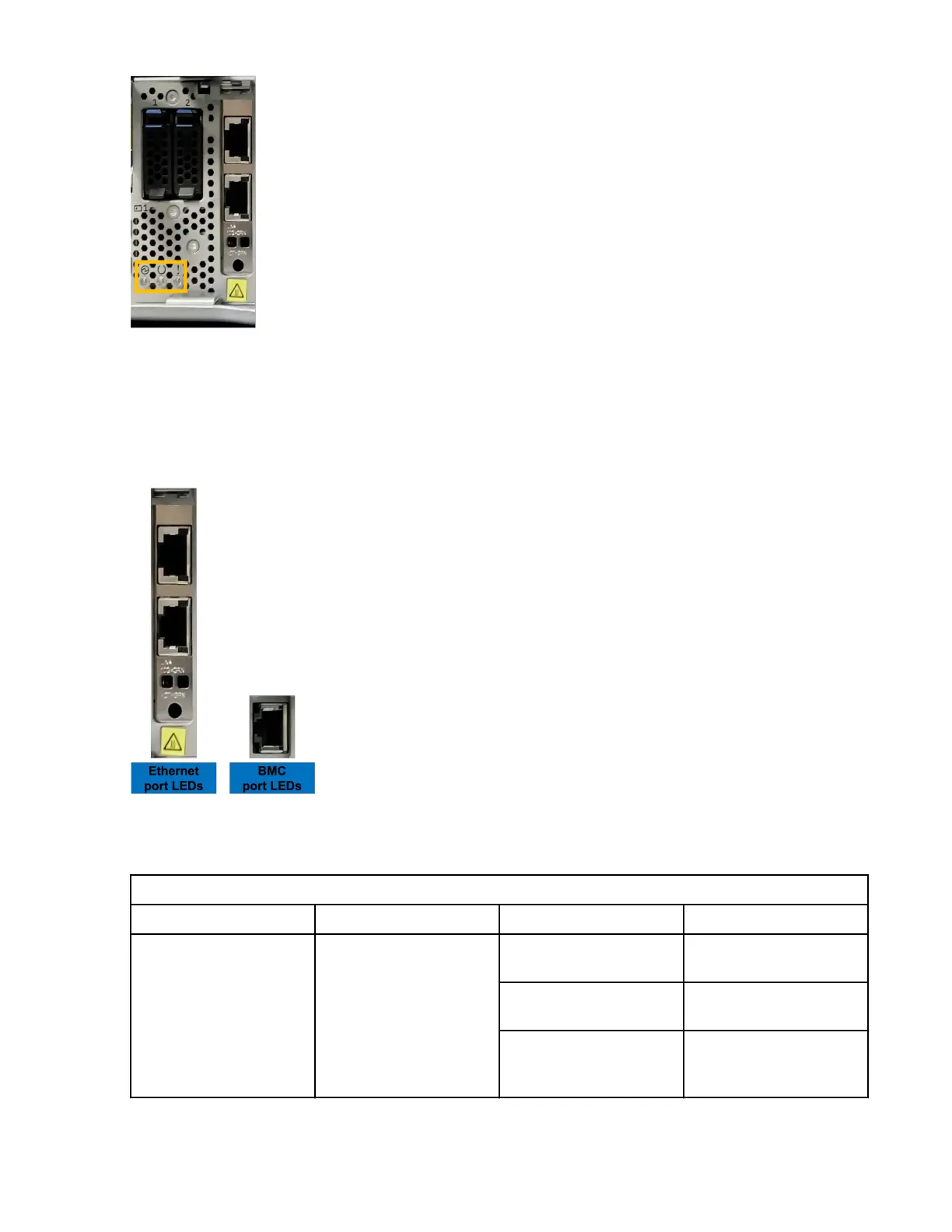

Figure 37. Close view of server canister LEDs
Ethernet and BMC ports status LEDs
These LEDs are used to monitor Ethernet and BMC ports of the IBM Storage Scale System 6000.
The Ethernet ports and the BMC ports on the rear of server canister are for standard RJ45-style
connectors. A close view of these port LEDs is shown in the following gure.
Figure 38. Close view of IBM Storage Scale System 6000 Ethernet and BMC port LEDs
These LEDs indicate speed and link activity as described in the following table.
Table 24. IBM Storage Scale System 6000 Ethernet and BMC port status LEDs
LED Color States Description
State Green Off The RJ45 link is not
connected.
Flashing Network activity on the
port.
Solid No activity on the
port. However, a link is
established.
Chapter 5. Monitoring the system using LEDs55
