IBM 6000 - IBM Storage Scale System 6000 PSU Status Leds

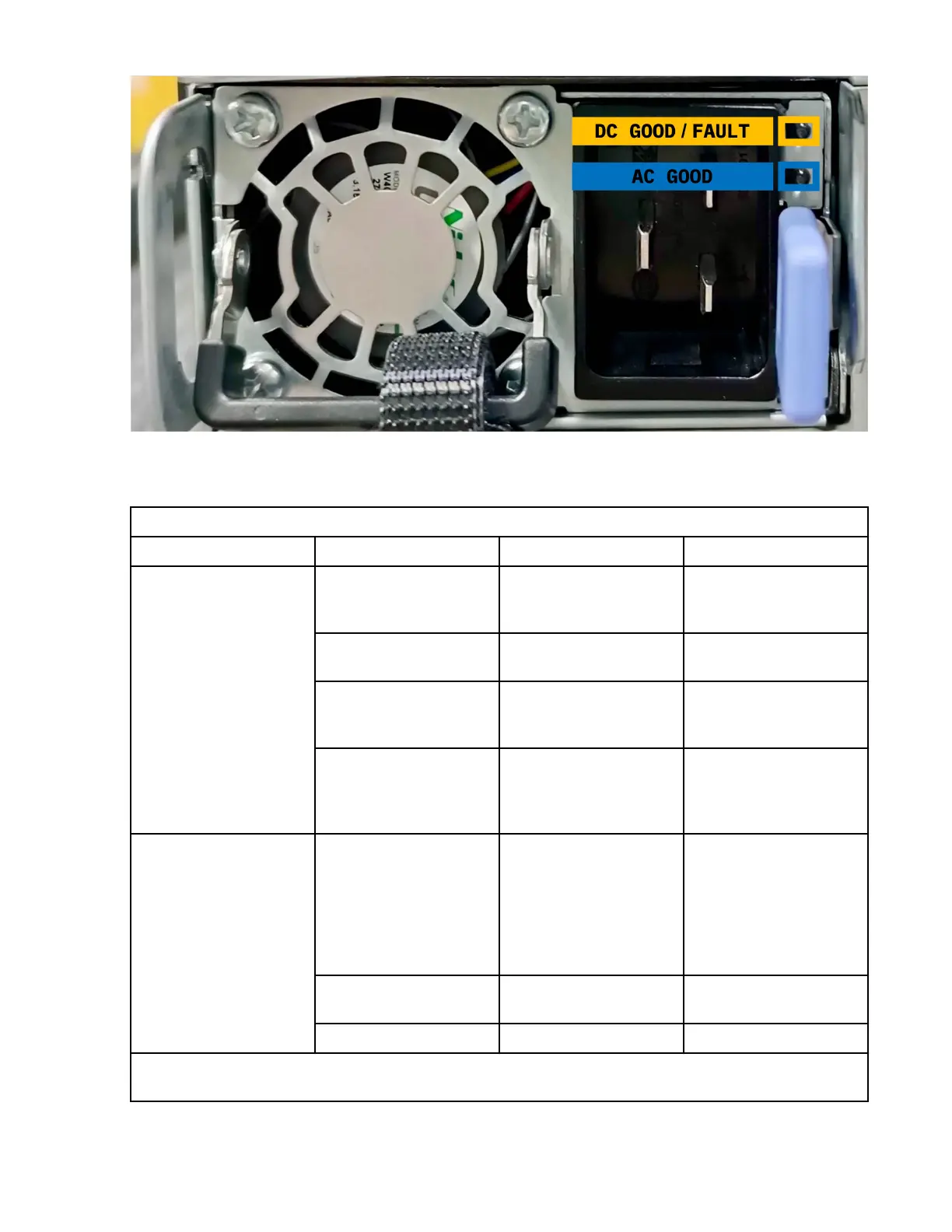

Figure 39. Close view of theIBM Storage Scale System 6000 PSU status LEDs
The following table describes bi-color PSU status LEDs.
Table 26. IBM Storage Scale System 6000 PSU status LEDs
LED Green color Amber color Description
DC GOOD and FAULT
indicators
1
Solid Off Represents the DC
GOOD signal. The PSU is
operating normally.
Off or solid Blinking The PSU is being
identied.
Blinking Off The PSU is at standby
state. The blinking rate
is 1 Hz.
Solid Solid Represents the FAULT
signal. Declares a fault
in the PSU; except for a
12 V overcurrent fault.
AC GOOD indicator Solid Off Represents the AC
GOOD signal. The
emergency power-off
warning (EPOW) signal is
inactive. Indicates that
the PSU is receiving
normal input power.
Off Off The PSU is not receiving
proper input power.
Blinking Off Indicates input OC.
1
The amber LED can be set to be on, off, or to blink by using an I2C command. In a redundant
conguration, the host system can control the amber fault LED when AC is removed from the PSU.
