IBM 6000 - Page 59

Figure 29. Lifting the system by using a mechanical lift

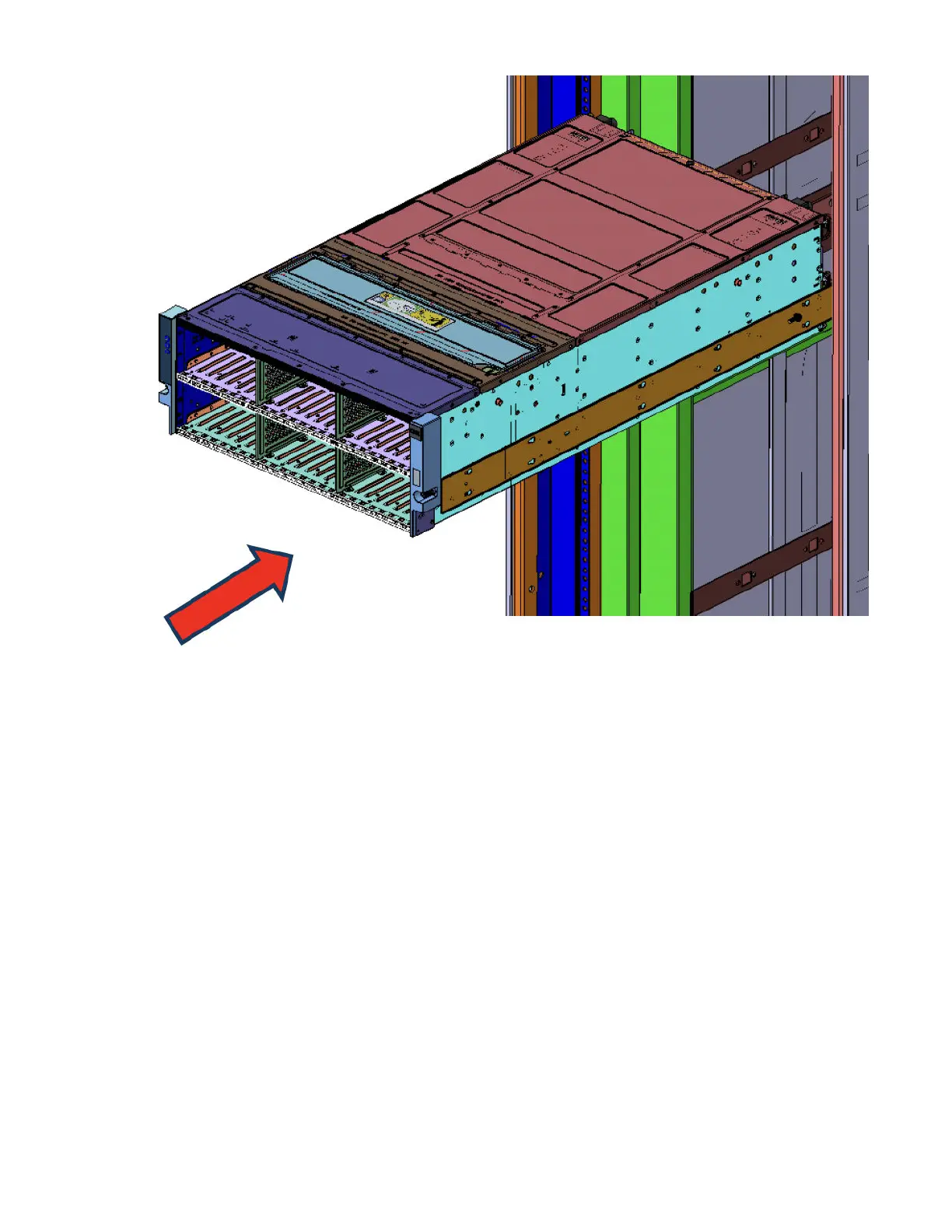

2. On both sides, engage the inner rail with the outer rail.
3. Slide the system until it stops.
4. Pull the release tab on the inner rail to release the lock. Then, push the system further into the rack.
Chapter 4. Installing
47
