174
Adjustment Procedures
Splined Shaft Skew Adjustment (Figure 28)
If lines of print are not parallel with the edge perforations on the paper,
perform the following adjustment.
1. Open the printer cover.
2. Loosen the screw (1) securing the adjusting link (2).
3. Adjust the link (2) by raising or lowering the horizontal adjustment knob
(3) to obtain print parallel with paper perforations. Tighten the screw (1).
4. Return the printer to normal operation (page 159).
1. Screw
2. Adjusting Link
3. Horizontal Adjustment Knob
1
2
3

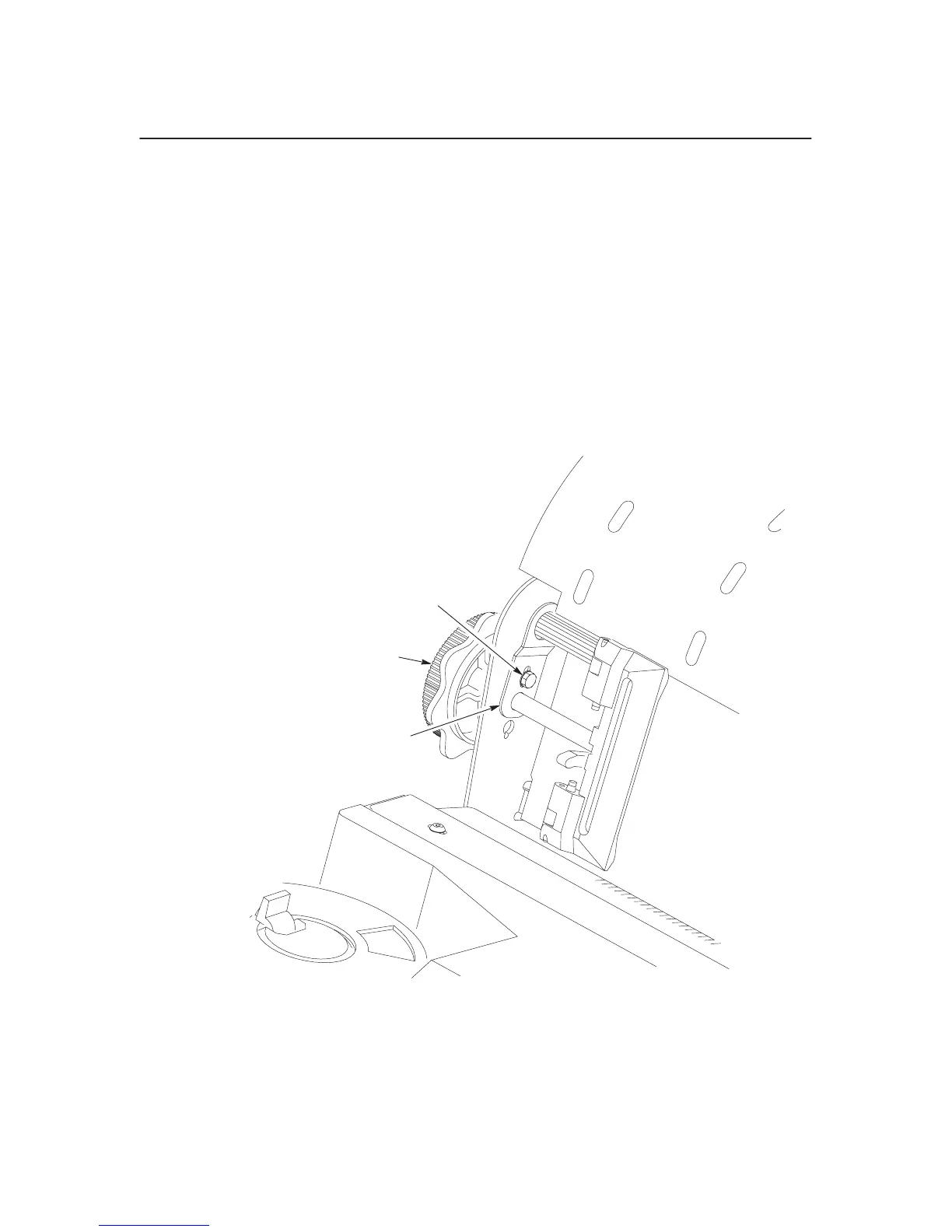

Figure 28. Splined Shaft Skew Adjustment
